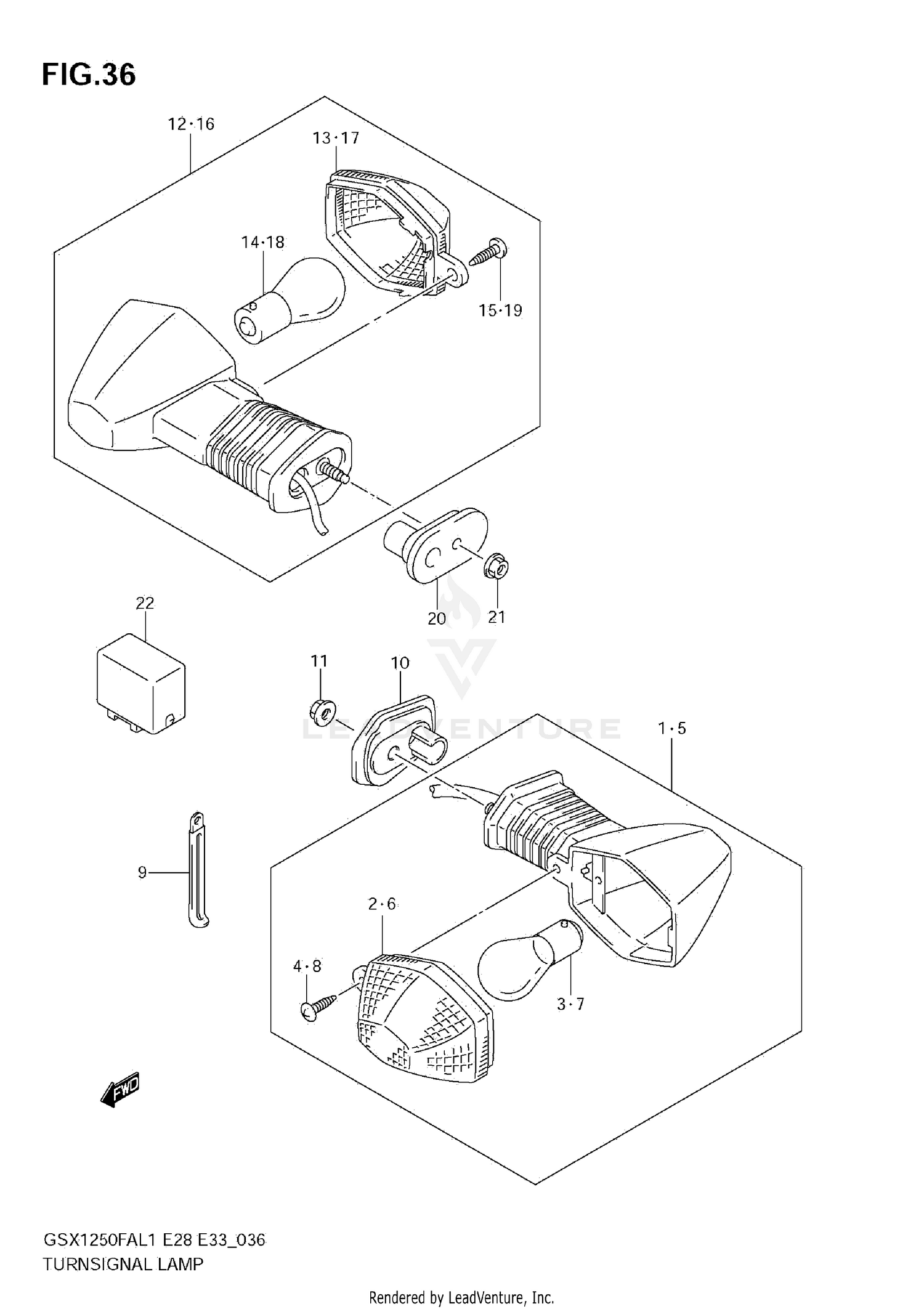

Turnsignal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FR TURNSIGNAL, RH
35601-38G10
|
$119.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, RH
35612-29FA0
|
$16.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V 21W)
09471-12186
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
03241-0416B
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY, FR TURNSIGNAL, LH
35602-38G10
|
$119.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS, LH
35632-29FA0
|
$16.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V 21W)
09471-12186
|
$16.19 | ||
|
Unavailable |
|||
|
#8
SCREW
03241-0416B
|
$2.35 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#10
PLATE,FRONT TURNSIGNAL
35629-18G00
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
LAMP ASSY, REAR TURNSIGNAL,RH
35603-29FB0
|
$123.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS, RH
35632-29FA0
|
$16.23 | ||
|
Unavailable |
|||
|
#14
BULB (12V 21W)
09471-12186
|
$16.19 | ||
|
Unavailable |
|||
|
#15
SCREW
03242-0416B
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
LAMP ASSY, REAR TURNSIGNAL,LH
35604-29FB0
|
$121.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS, LH
35612-29FA0
|
$16.23 | ||
|
Unavailable |
|||
|
#18
BULB (12V 21W)
09471-12186
|
$16.19 | ||
|
Unavailable |
|||
|
#19
SCREW
03242-0416B
|
$3.19 | ||
|
Unavailable |
|||
|
#20
PLATE,TURNSIGNAL
35629-31F40
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
