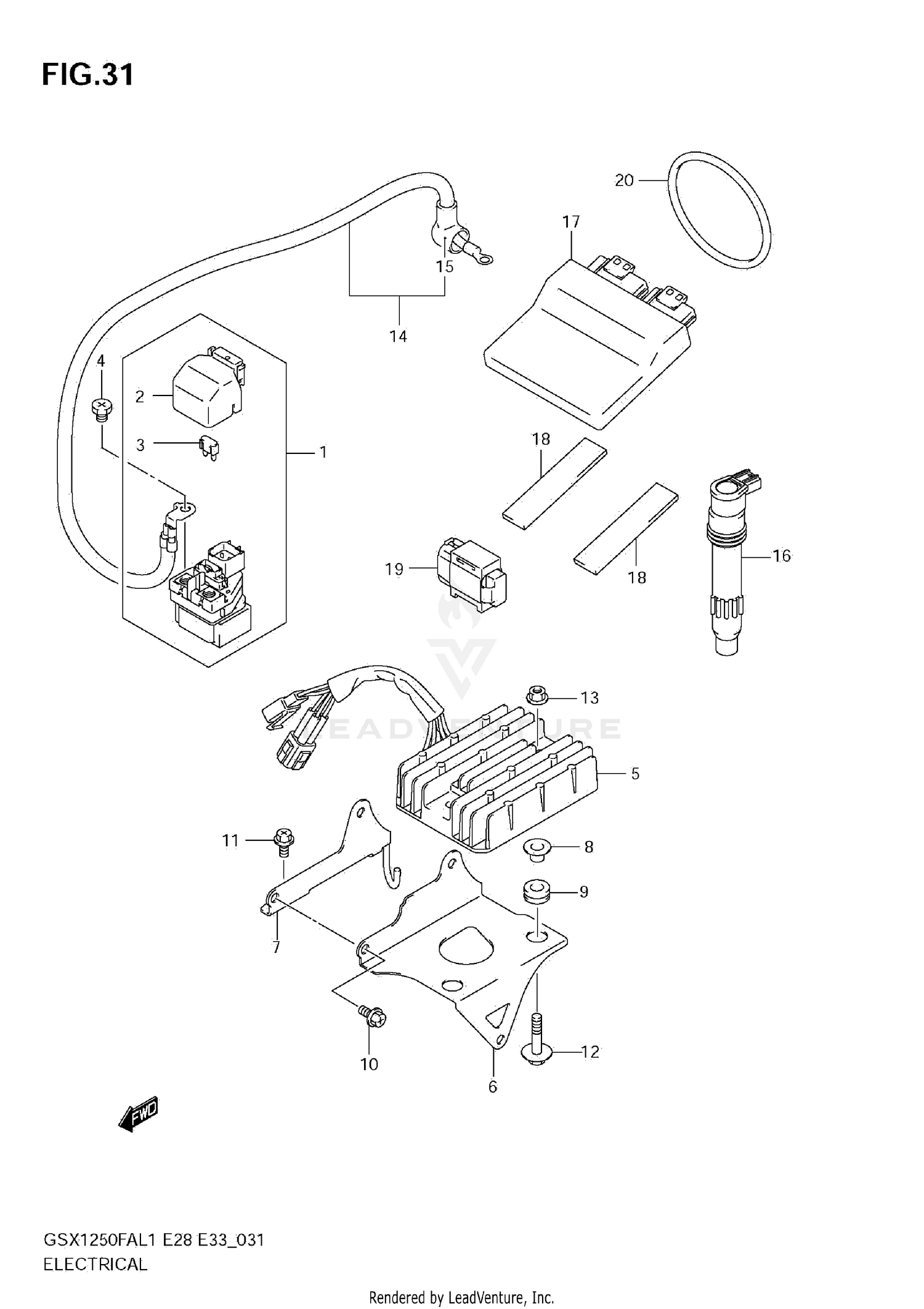

Electrical (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-38G10
|
$125.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-47H10
Superseded by 32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RECTIFIER NO.1
32830-18H10
|
$23.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, RECTIFIER NO.2
32830-18H20
|
$13.82 | ||
|
Unavailable |
|||
|
#8
SPACER (6.2X8.4X6.9)
09180-06325
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0612A
|
$2.53 | ||
|
Unavailable |
|||
|
#12
BOLT (6X20)
09116-06182
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WIRE, STARTER MOTOR LEAD
33810-18H00
|
$36.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, STARTER MOTOR
33624-18H10
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
COIL ASSY,IGNITION
33410-47H00
|
$199.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
CONTROL UNIT, FI
32920-18H70
|
$1,711.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:3.53,ID:69.44)
09280-70004
|
$4.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
