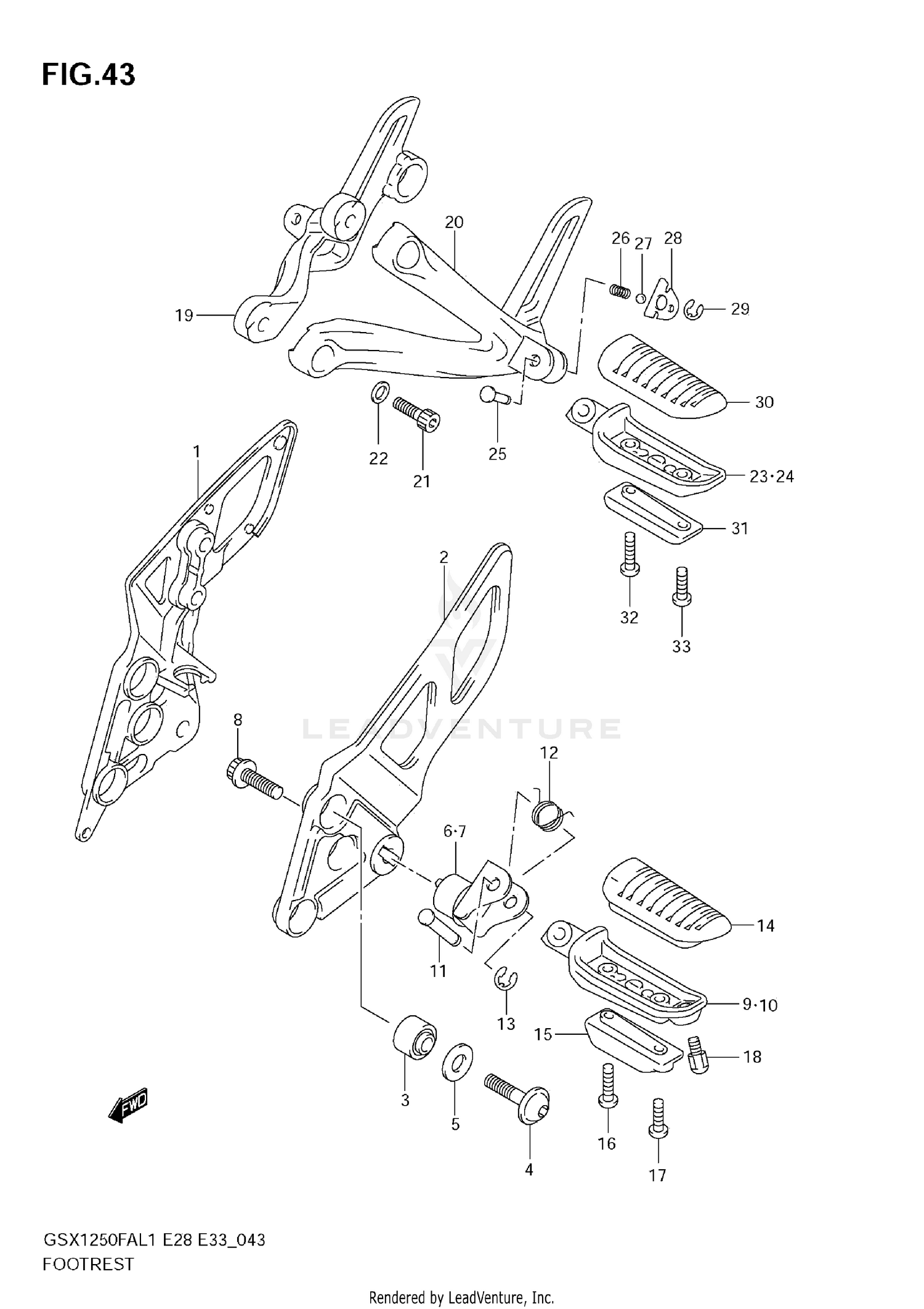

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-38G00
|
$206.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-38G00
|
$206.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
09319-08047
Superseded by 09319-08048
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X30)
09106-08147
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (12.6X24X1.9)
09161-12009
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, FOOTREST RH
43530-18H00
|
$52.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, FOOTREST LH
43540-18H00
|
$55.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (10X28)
09106-10064
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR, RH
43511-44G00
|
$67.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, LH
43521-44G00
|
$67.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
09208-08018
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09448-14047
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
E-RING
08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER
43550-44G00
|
$40.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALANCER, FR FOOTREST
43536-44G00
|
$58.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02142-0530B
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02142-0525B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
.BOLT,BANK SENSOR
43576-07D01
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, PILLION RH
43811-18H10
|
$206.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, PILLION LH
43821-18H00
|
$202.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (8X25)
09106-08172
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR, PILLION RH
43611-44G00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAR, PILLION LH
43621-44G00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
09208-08020
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING
09440-05003
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE,PILLION F
43816-01H01
Superseded by 43816-01H02
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
E-RING
08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#30
RUBBER
43550-44G00
|
$40.14 | ||
|
Unavailable |
|||
|
#31
BALANCER,PILLIO
43534-44G00
Superseded by 43534-44G01
|
$48.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
02142-0525A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
02142-0520A
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
