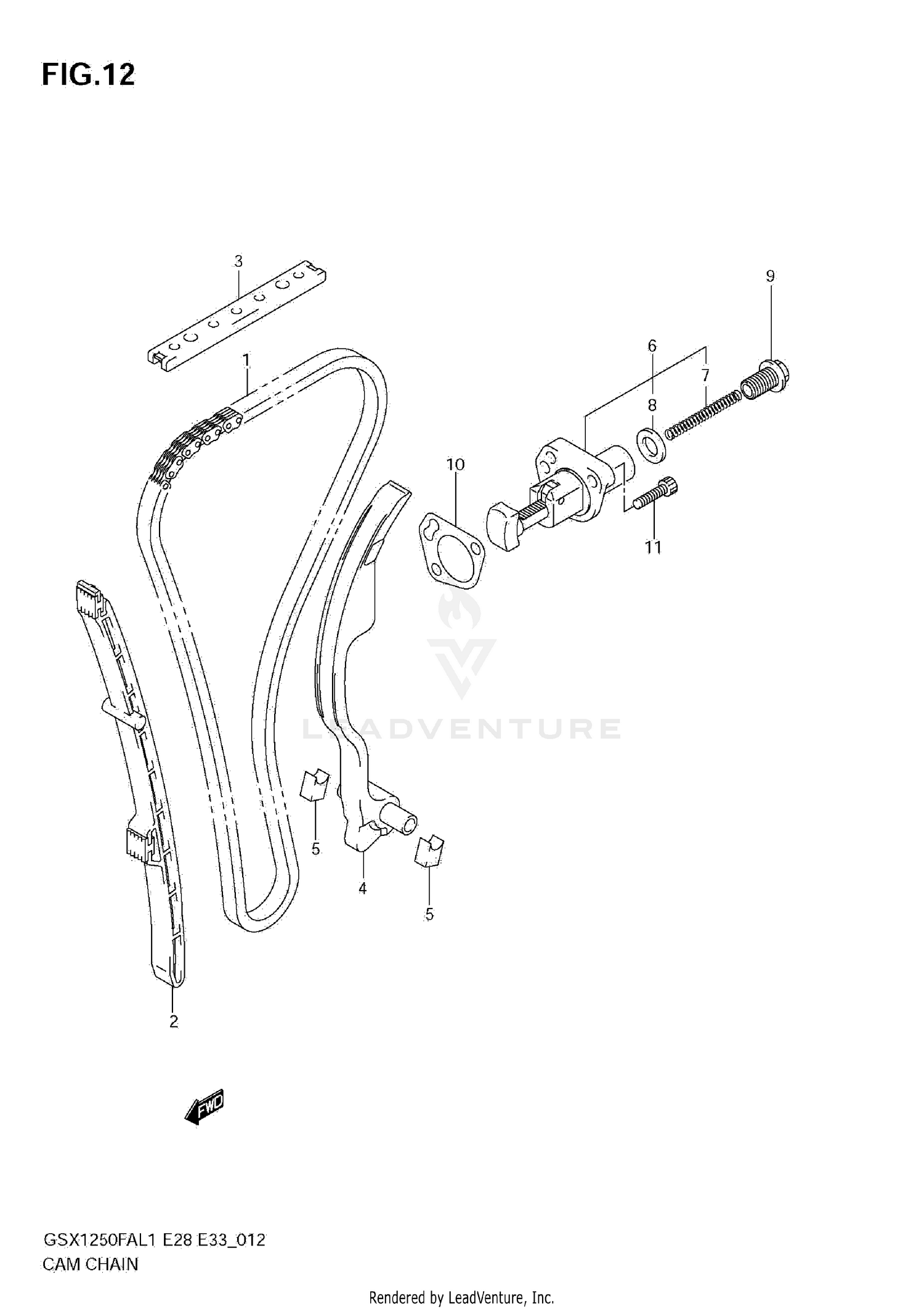

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE
12760-18H00
|
$163.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-18H00
Superseded by 12771-18H01
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN
12782-18H00
Superseded by 12782-18H01
|
$39.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER, CAM CHAIN
12810-18H00
|
$65.36 | ||
|
Unavailable |
|||
|
#5
CUSHION
12814-34200
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER ASSY, TENSIONER
12834-48G00
|
$209.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
12831-35F00
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
12837-24F10
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
12833-17G00
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET,TENSIONER ADJUSTER
12837-27G00
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
