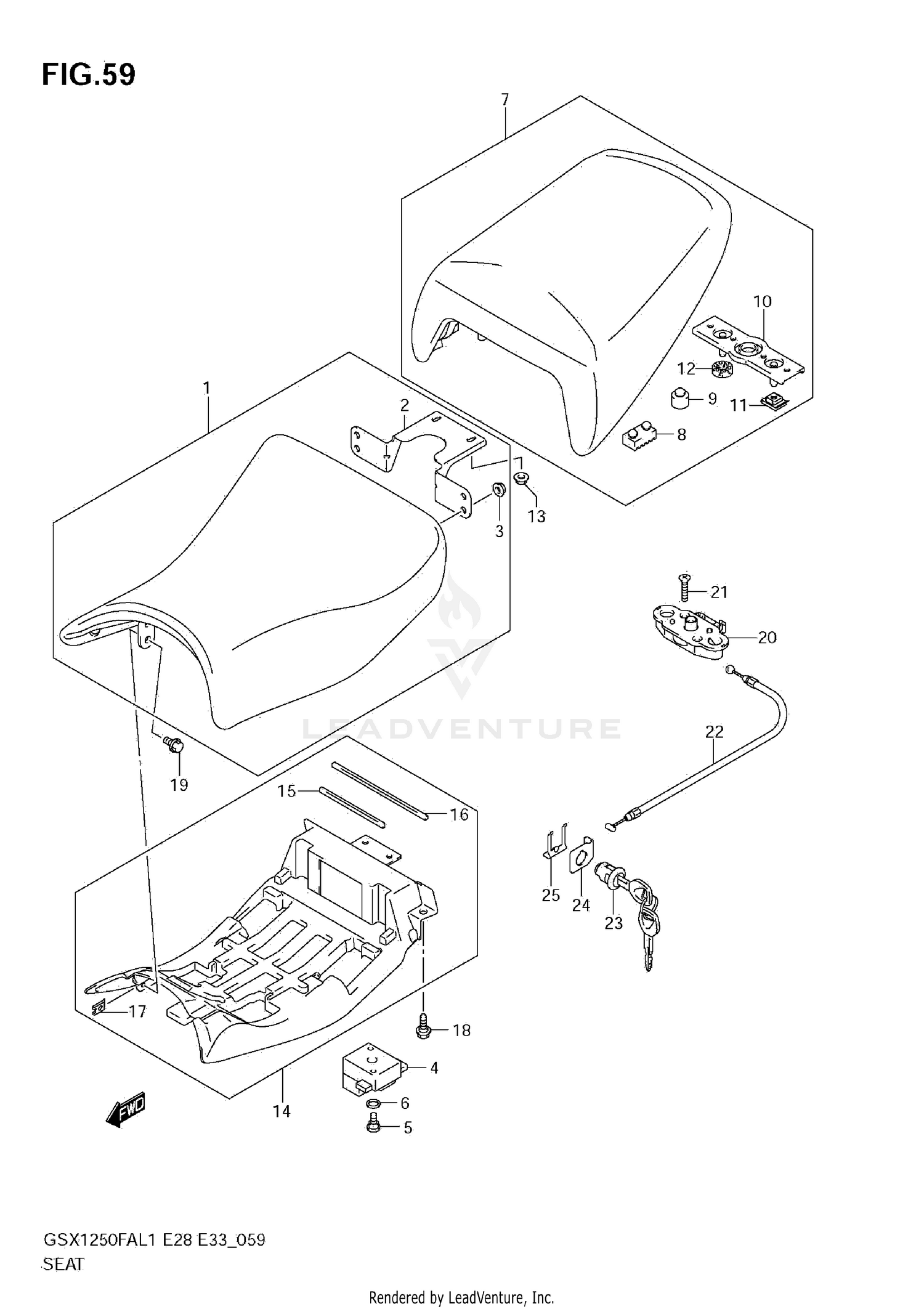

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-38G12-DKD
Superseded by 45100-38G14-DKD
|
$301.71 | ||
|
Unavailable |
|||
|
#2
BRACKET
45115-38G00
|
$24.97 | ||
|
Unavailable |
|||
|
#3
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
45149-38G01
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (6X16)
09139-06133
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (10.5X18X1)
09160-10121
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT ASSY,PILLI
45300-38G10-W05
Superseded by 45300-38G12-W05
|
$274.84 | ||
|
Unavailable |
|||
|
#8
CUSHION, FRONT
45149-42F00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09321-10011
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRIKER
45290-42F02
|
$41.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09148-06018
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
45213-31300
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08319-3106B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SEAT LOWER (BLACK)
45410-38G03-291
|
$79.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, SEAT LOWER COVER FR
45412-38G00
|
$6.65 | ||
|
Unavailable |
|||
|
#16
CUSHION, SEAT LOWER COVER RR
45413-38G00
|
$6.02 | ||
|
Unavailable |
|||
|
#17
NUT
09148-06018
|
$4.05 | ||
|
Unavailable |
|||
|
#18
BOLT (6X16)
09111-06066
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-0612B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, SEAT SUPPORT
45220-47H00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02122-0630A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE, SEAT LOCK
45280-33400
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
LOCK SET, SEAT
95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, SEAT LOCK
45289-11F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
