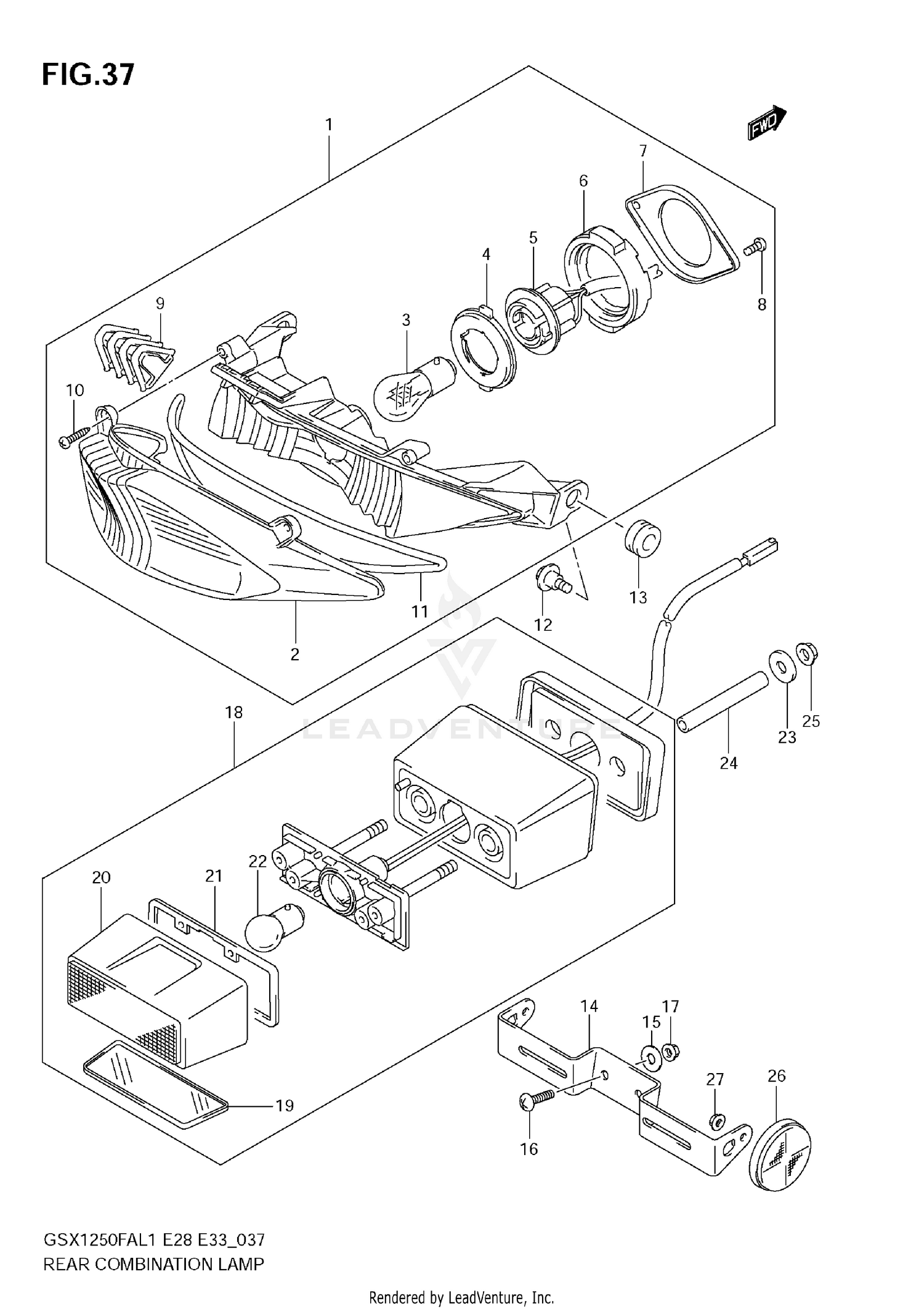

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMB
35710-38G51
|
$203.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-38G50
|
$56.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, NO.1
35716-48B21
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET & CORD
35718-38G00
|
$26.76 | ||
|
Unavailable |
|||
|
#6
CUSHION
35765-48B21
|
$14.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, NO.2
35736-48B21
|
$23.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
03211-0412A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
35716-38G00
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03211-0416A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
35713-38G00
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (5X16.2)
09139-05080
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CUSHION
09320-10054
Superseded by 09320-10073
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, LICENSE PLATE
35927-38G50
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SCREW
02142-0616A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
LAMP ASSY,LICEN
35910-41G50
Superseded by 35910-41G51
|
$274.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
.LENS,LICENSE
35912-41G00
Superseded by 35912-41G01
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER
35917-41G00
|
$38.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
35913-41G00
|
$15.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Unavailable |
|||
|
#24
SPACER (6.5X9X63.5)
09180-06344
|
$13.85 | ||
|
Unavailable |
|||
|
#25
NUT
08316-1006A
|
$2.64 | ||
|
Unavailable |
|||
|
#26
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
08316-1005B
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
