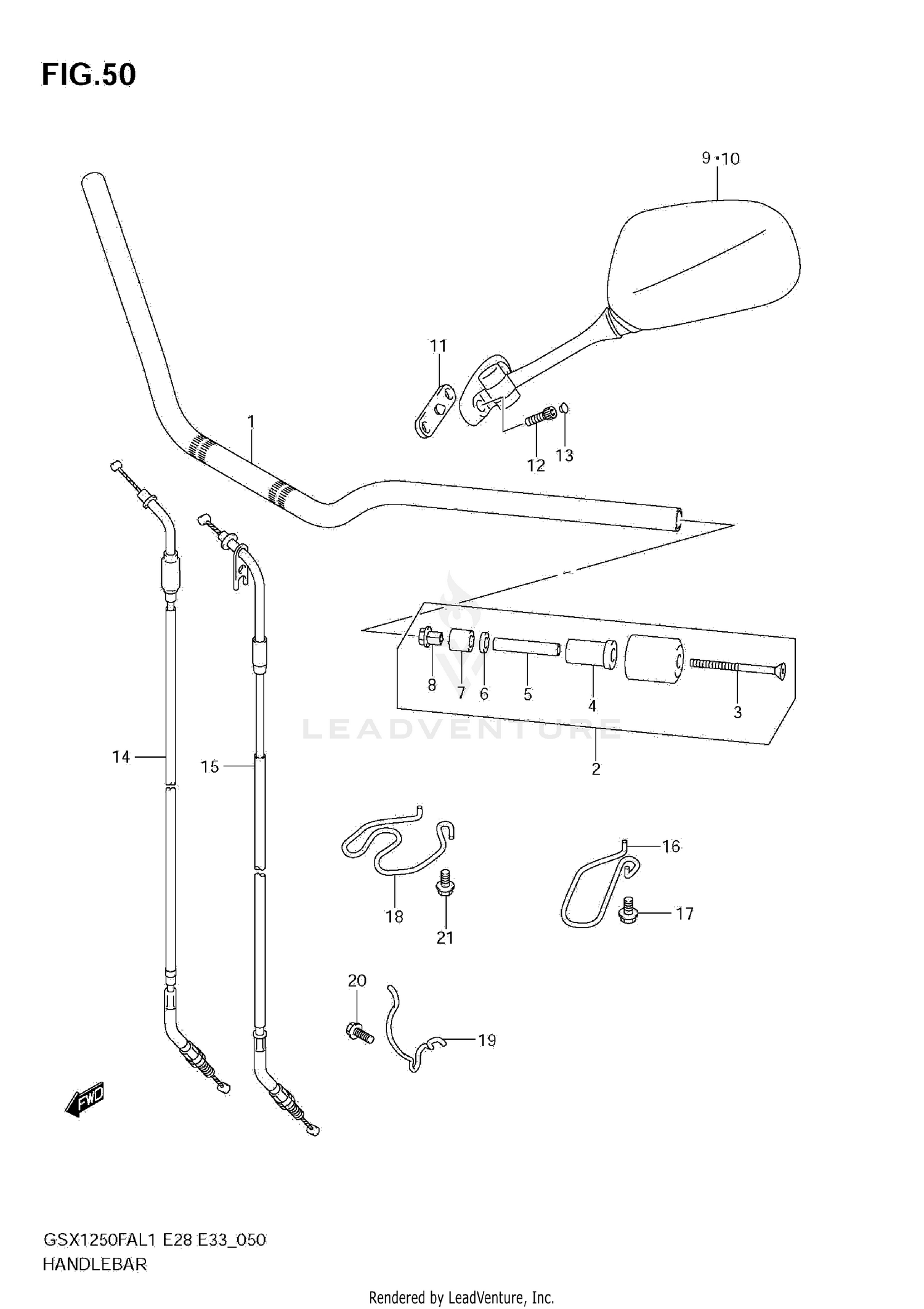

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56111-49G00
|
$227.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALANCER SET,HA
56200-38822
Superseded by 56200-38824
|
$50.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X110)
09127-06018
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
EXPANDER, OUTER
56272-19D00
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
56276-17D00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER, (6.5X16X4)
09160-06131
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
EXPANDER, HANDLE BALANCER
56272-10G00
Superseded by 56272-10G01
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
56273-10G10
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR,REAR RH
56500-18H00
Superseded by 56500-18H01
|
$142.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
MIRROR,REAR LH
56600-18H00
Superseded by 56600-18H01
|
$136.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,REAR VIEW MIR
94576-24F00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP (OD:10)
09250-05009
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE ASSY,THRO
58300-18H60
Superseded by 58300-18H61
|
$58.96 | ||
|
Unavailable |
|||
|
#15
CABLE ASSY, THROTTLE NO.2
58300-18H30
|
$82.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, THROTTLE CABLE
58631-38G00
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (5X10)
09125-05042
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, THROTTLE CABLE
58621-18H00
|
$11.37 | ||
|
Unavailable |
|||
|
#19
GUIDE, CABLE
58622-38G00
|
$8.51 | ||
|
Unavailable |
|||
|
#20
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
