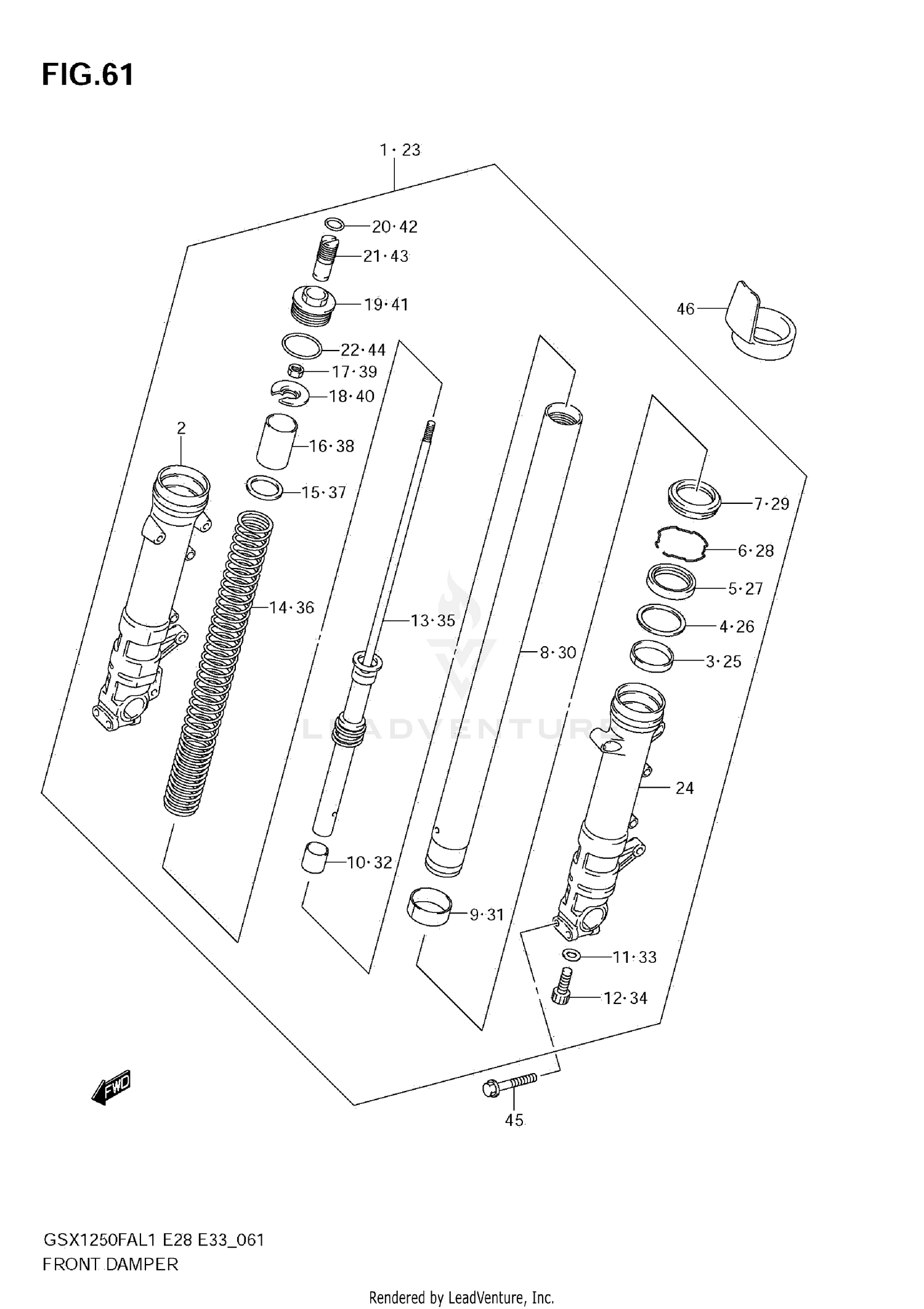

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-07J20
|
$1,682.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER RH
51131-07J00
|
$746.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, GUIDE
51152-07J00
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPACER,SEAL
51168-17C00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
51153-47H00
|
$34.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RING, STOPPER
51556-38B00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SEAL,DUST
51173-27G00
|
$34.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TUBE, INNER
51110-07J00
|
$577.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BUSH,SLIDE
51121-07J00
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIECE, OIL LOCK
51195-31E00
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
51147-48130
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, DAMPER
52110-07J20
|
$438.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT
51171-07J20
|
$71.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SEAT,SPRING,LOWER
51186-17C00
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SPRING
51176-12C10
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
.NUT
51827-27E00
|
$7.42 | ||
|
Unavailable |
|||
|
#18
SEAT, SPRING UPPER
51172-17C00
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FORK
51189-14D00
|
$68.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:2.5,ID:13.8)
51834-17C00
Superseded by 09280-14011
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER, SPRING
51185-31E00
|
$70.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING
51117-17C00
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER ASSY, FRONT FORK LH
51104-07J20
|
$1,682.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE, OUTER LH
51141-07J00
|
$564.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSH, GUIDE
51152-07J00
|
$20.34 | ||
|
Unavailable |
|||
|
#26
.SPACER,SEAL
51168-17C00
|
$8.34 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
51153-47H00
|
$34.74 | ||
|
Unavailable |
|||
|
#28
RING, STOPPER
51556-38B00
|
$9.32 | ||
|
Unavailable |
|||
|
#29
.SEAL,DUST
51173-27G00
|
$34.32 | ||
|
Unavailable |
|||
|
#30
TUBE, INNER
51110-07J00
|
$577.13 | ||
|
Unavailable |
|||
|
#31
.BUSH,SLIDE
51121-07J00
|
$24.37 | ||
|
Unavailable |
|||
|
#32
PIECE, OIL LOCK
51195-31E00
|
$34.12 | ||
|
Unavailable |
|||
|
#33
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Unavailable |
|||
|
#34
BOLT
51147-48130
|
$5.60 | ||
|
Unavailable |
|||
|
#35
ROD, DAMPER
52110-07J20
|
$438.27 | ||
|
Unavailable |
|||
|
#36
SPRING, FRONT
51171-07J20
|
$71.03 | ||
|
Unavailable |
|||
|
#37
.SEAT,SPRING,LOWER
51186-17C00
|
$8.52 | ||
|
Unavailable |
|||
|
#38
COLLAR, SPRING
51176-12C10
|
$15.72 | ||
|
Unavailable |
|||
|
#39
.NUT
51827-27E00
|
$7.42 | ||
|
Unavailable |
|||
|
#40
SEAT, SPRING UPPER
51172-17C00
|
$16.03 | ||
|
Unavailable |
|||
|
#41
BOLT, FORK
51189-14D00
|
$68.19 | ||
|
Unavailable |
|||
|
#42
O RING (D:2.5,ID:13.8)
51834-17C00
Superseded by 09280-14011
|
$5.99 | ||
|
Unavailable |
|||
|
#43
ADJUSTER, SPRING
51185-31E00
|
$70.53 | ||
|
Unavailable |
|||
|
#44
O RING
51117-17C00
|
$7.90 | ||
|
Unavailable |
|||
|
#45
BOLT
51166-27E30
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#46
PROTECTOR
51201-32F00
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
