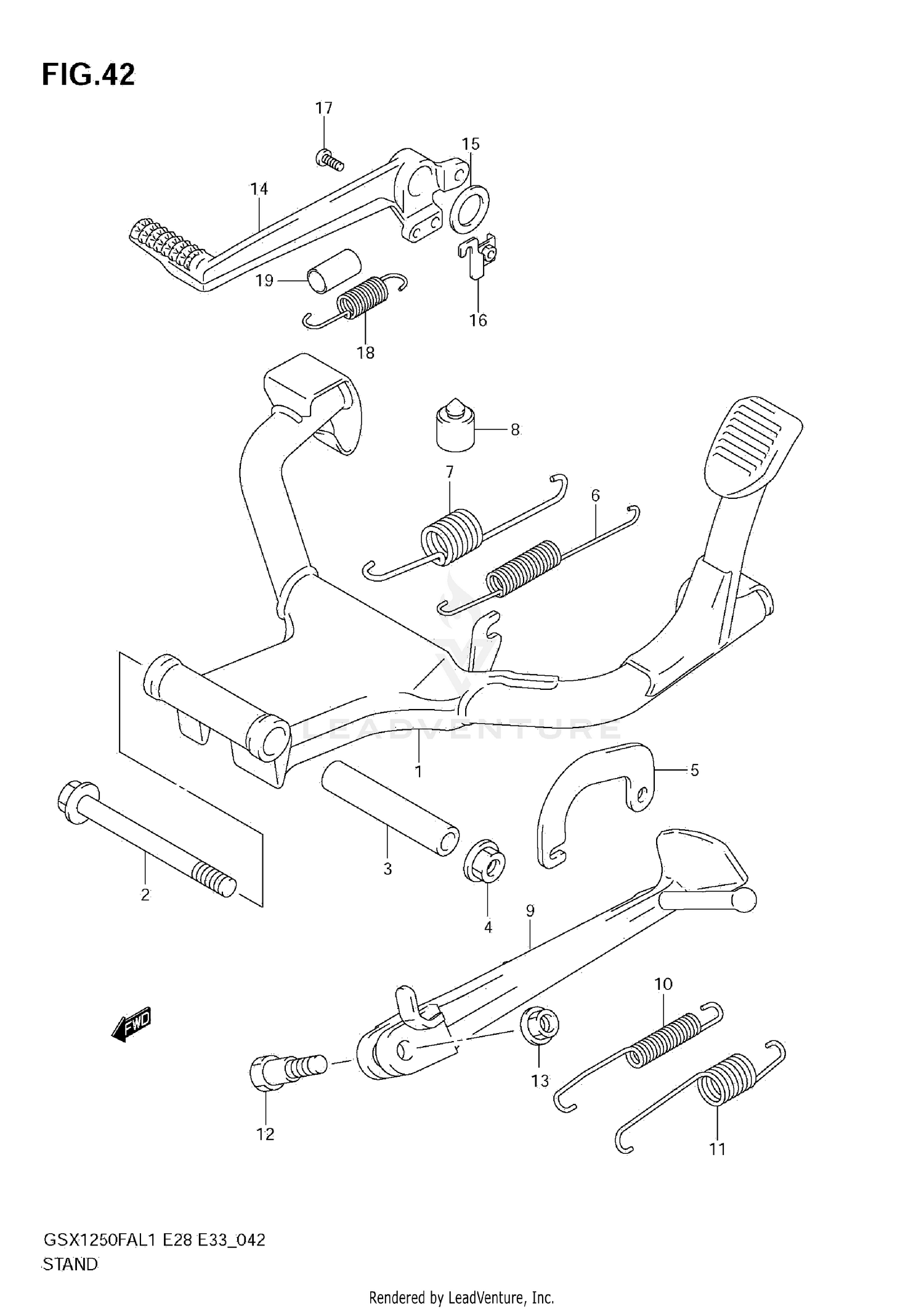

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, CENTER
42100-18H00
|
$327.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X105)
09103-10087
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
42191-18H00
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09159-10115
|
$4.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HOOK, SPRING
42192-18H00
|
$6.44 | ||
|
Unavailable |
|||
|
#6
SPRING
09443-16024
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
09443-24003
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09321-10034
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAND, PROP
42310-07J00
|
$145.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09443-12048
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09443-19010
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (10X38)
09111-10065
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,PROP STAND
42321-03FK0
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
PEDAL, BRAKE
43111-38G00
|
$177.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (18X24X1)
09160-18022
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, STOP SWITCH
43560-32C00
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SCREW
02112-0516B
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
09443-13029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, SPRING
43261-17C00
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
