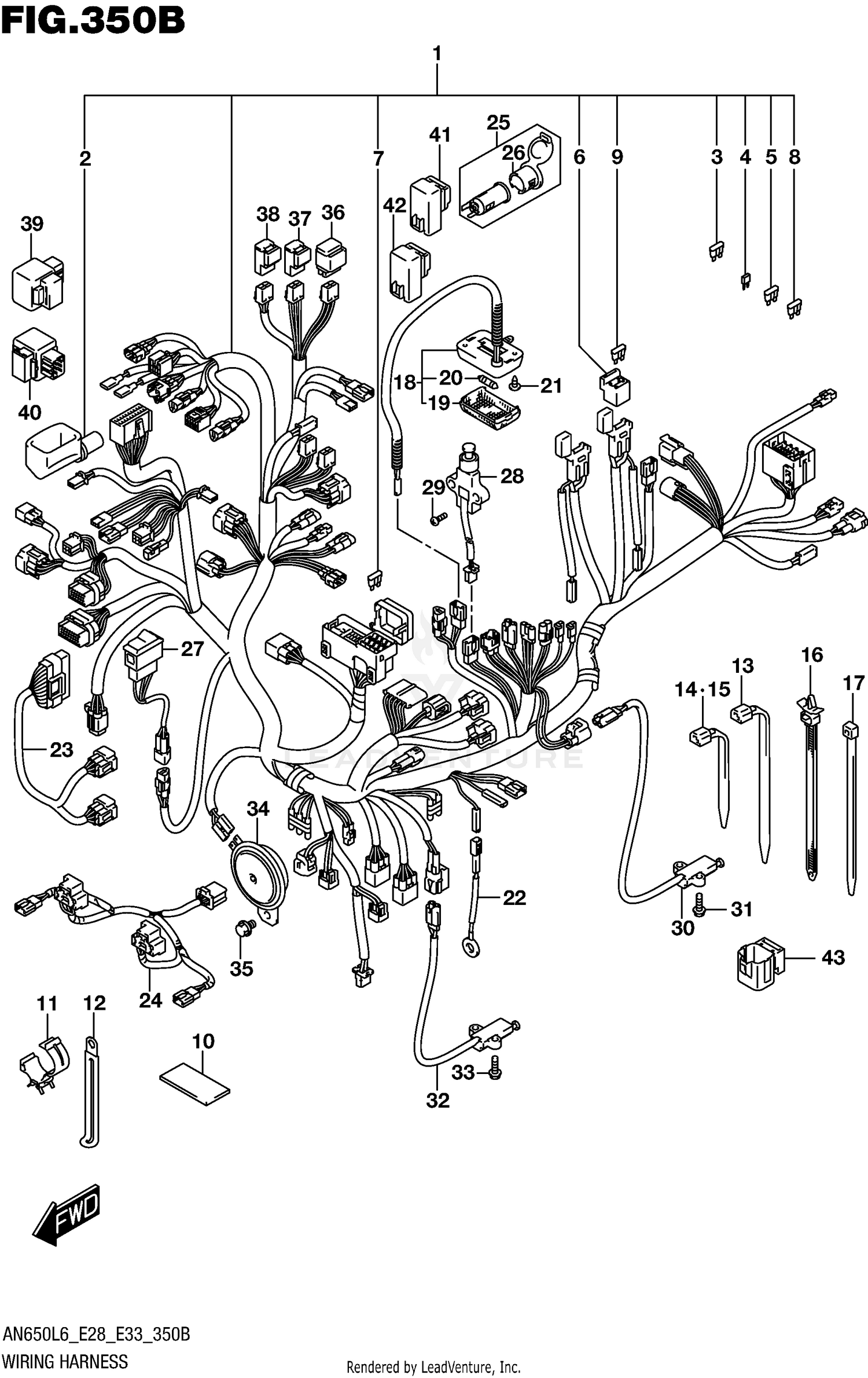

Wiring Harness (an650zl6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-26J40
|
|||
|
Unavailable |
|||
|
#2
.COVER, CONNECTOR
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#3
.FUSE (3A)
09481-03502
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
.HOLDER
36742-45G00
|
$26.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
.FUSE (15A)
09481-15501
|
$2.59 | ||
|
Unavailable |
|||
|
#8
.FUSE (20A)
09481-20501
|
$1.96 | ||
|
Unavailable |
|||
|
#9
.FUSE (40A)
09481-40101
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR
36920-08D00
|
$2.03 | ||
|
Unavailable |
|||
|
#11
CLAMP
09403-30403
|
$2.48 | ||
|
Unavailable |
|||
|
#12
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#13
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:90)
09407-11402
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
LAMP ASSY, TRUNK BOX
36210-10G00
|
$130.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
.LENS
36212-79001
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BULB (12V,5W)
09471-12073
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
03541-0412A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, OIL PRESSURE SWITCH LEA
36851-26J00
|
|||
|
Unavailable |
|||
|
#23
HARNESS, WIRING NO.2
36620-26J00
|
$226.86 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE,HEADLAMP L
36856-26J00
Superseded by 36856-26J01
|
$69.40 | ||
|
Unavailable |
|||
|
#25
TERMINAL, POWER SOURCE (GRAY)
39410-49F00-P4Z
|
$42.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
.COVER (GRAY)
39441-49F00-P4Z
|
$10.25 | ||
|
Unavailable |
|||
|
#27
SWITCH ASSY, SEAT HEATER
37320-19H00
|
$138.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
SWITCH ASSY, TRUNK BOX LAMP
37980-14F00
|
$83.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW
02112-0516A
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
SWITCH ASSY,SID
37840-10G00
Superseded by 37840-10G02
|
$90.65 | ||
|
Unavailable |
|||
|
#31
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
SWITCH ASSY,SID
37840-20E00
Superseded by 37840-20E02
|
$93.18 | ||
|
Unavailable |
|||
|
#33
BOLT
01550-0620A
|
$2.45 | ||
|
Unavailable |
|||
|
#34
HORN ASSY
38500-26J00
|
$89.96 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
RELAY ASSY
38740-38B00
|
$71.45 | ||
|
Unavailable |
|||
|
#37
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#38
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Unavailable |
|||
|
#39
RELAY ASSY
38750-03G00
|
$161.96 | ||
|
Available to order. Add to View Price |
|||
|
#40
RELAY ASSY
38750-10G00
|
$101.76 | ||
|
Unavailable |
|||
|
#41
RELAY ASSY
38740-04J00
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#42
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Unavailable |
|||
|
#43
CAP, TS
36654-06J40
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
