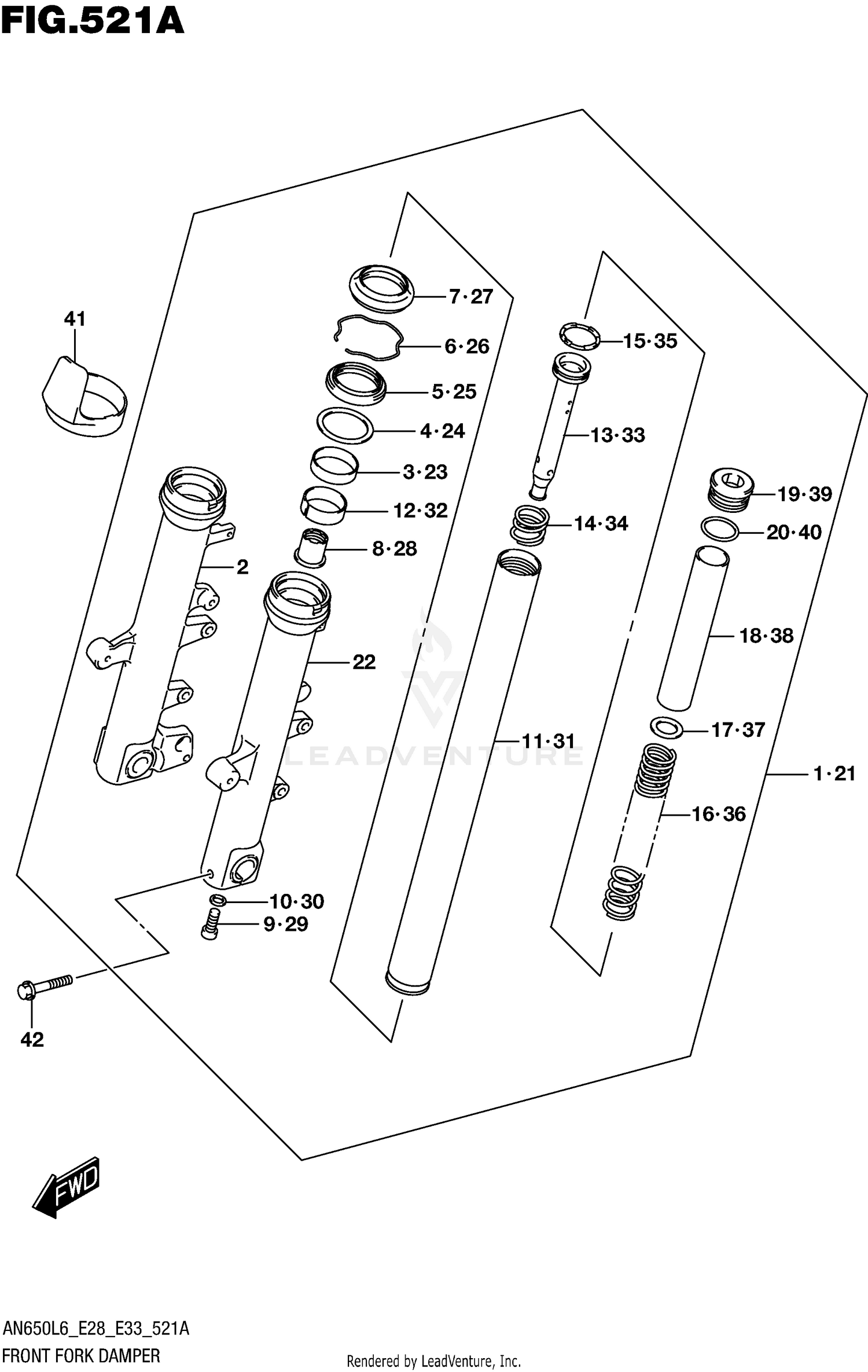

Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR
51103-10GB0-YTA
Superseded by 51103-10GB1-YTA
|
$763.44 | ||
|
Unavailable |
|||
|
#1
DAMPER ASSY,FR
51103-10GB0-YTA
Superseded by 51103-10GB1-YTA
|
$763.44 | ||
|
Unavailable |
|||
|
#2
.TUBE, OUTER RH
51131-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#2
(BLACK)
51131-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#3
.METAL, SLIDE
51167-26E10
|
$32.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
51158-05A00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,OIL
51153-10G50
|
$26.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RING,OIL SEAL STOPPER
51156-49440
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SEAL,DUST
51173-14F00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PIECE, OIL LOCK
51195-33D10
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
.GASKET
51148-41310
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.BOLT
51147-16510
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
.TUBE, INNER
51110-10G00
|
$432.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PISTON
51121-33D10
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CYLINDER
51146-10G90
|
$70.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SPRING, REBOUND
51177-10G90
|
$10.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
.RING, PISTON
51196-31F00
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SPRING
51171-10G90
|
$75.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
.WASHER
51356-10D03
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
.SPACER
51176-10G10
|
$8.18 | ||
|
Unavailable |
|||
|
#19
.CAP
51351-10G10
|
$50.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING (D:3.5,ID:31.7)
09280-32001
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER ASSY,FR
51104-10GB0-YTA
Superseded by 51104-10GB1-YTA
|
$763.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER ASSY,FR
51104-10GB0-YTA
Superseded by 51104-10GB1-YTA
|
$763.44 | ||
|
Unavailable |
|||
|
#22
.TUBE, OUTER LH
51141-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#22
(BLACK)
51141-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#23
.METAL, SLIDE
51167-26E10
|
$32.56 | ||
|
Unavailable |
|||
|
#24
.WASHER
51158-05A00
|
$7.53 | ||
|
Unavailable |
|||
|
#25
.SEAL,OIL
51153-10G50
|
$26.71 | ||
|
Unavailable |
|||
|
#26
.RING,OIL SEAL STOPPER
51156-49440
|
$6.70 | ||
|
Unavailable |
|||
|
#27
.SEAL,DUST
51173-14F00
|
$29.78 | ||
|
Unavailable |
|||
|
#28
.PIECE, OIL LOCK
51195-33D10
|
$29.58 | ||
|
Unavailable |
|||
|
#29
.BOLT
51147-16510
|
$5.77 | ||
|
Unavailable |
|||
|
#30
.GASKET
51148-41310
|
$2.50 | ||
|
Unavailable |
|||
|
#31
.TUBE, INNER
51110-10G00
|
$432.87 | ||
|
Unavailable |
|||
|
#32
.PISTON
51121-33D10
|
$25.08 | ||
|
Unavailable |
|||
|
#33
.CYLINDER
51146-10G90
|
$70.90 | ||
|
Unavailable |
|||
|
#34
.SPRING, REBOUND
51177-10G90
|
$10.79 | ||
|
Unavailable |
|||
|
#35
.RING, PISTON
51196-31F00
|
$9.35 | ||
|
Unavailable |
|||
|
#36
.SPRING
51171-10G90
|
$75.17 | ||
|
Unavailable |
|||
|
#37
.WASHER
51356-10D03
|
$8.48 | ||
|
Unavailable |
|||
|
#38
.SPACER
51176-10G10
|
$8.18 | ||
|
Unavailable |
|||
|
#39
.CAP
51351-10G10
|
$50.87 | ||
|
Unavailable |
|||
|
#40
.O RING (D:3.5,ID:31.7)
09280-32001
|
$2.59 | ||
|
Unavailable |
|||
|
#41
PROTECTOR
51201-31F00
|
$16.83 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT,AXLE STOPPER
51166-10G10
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
