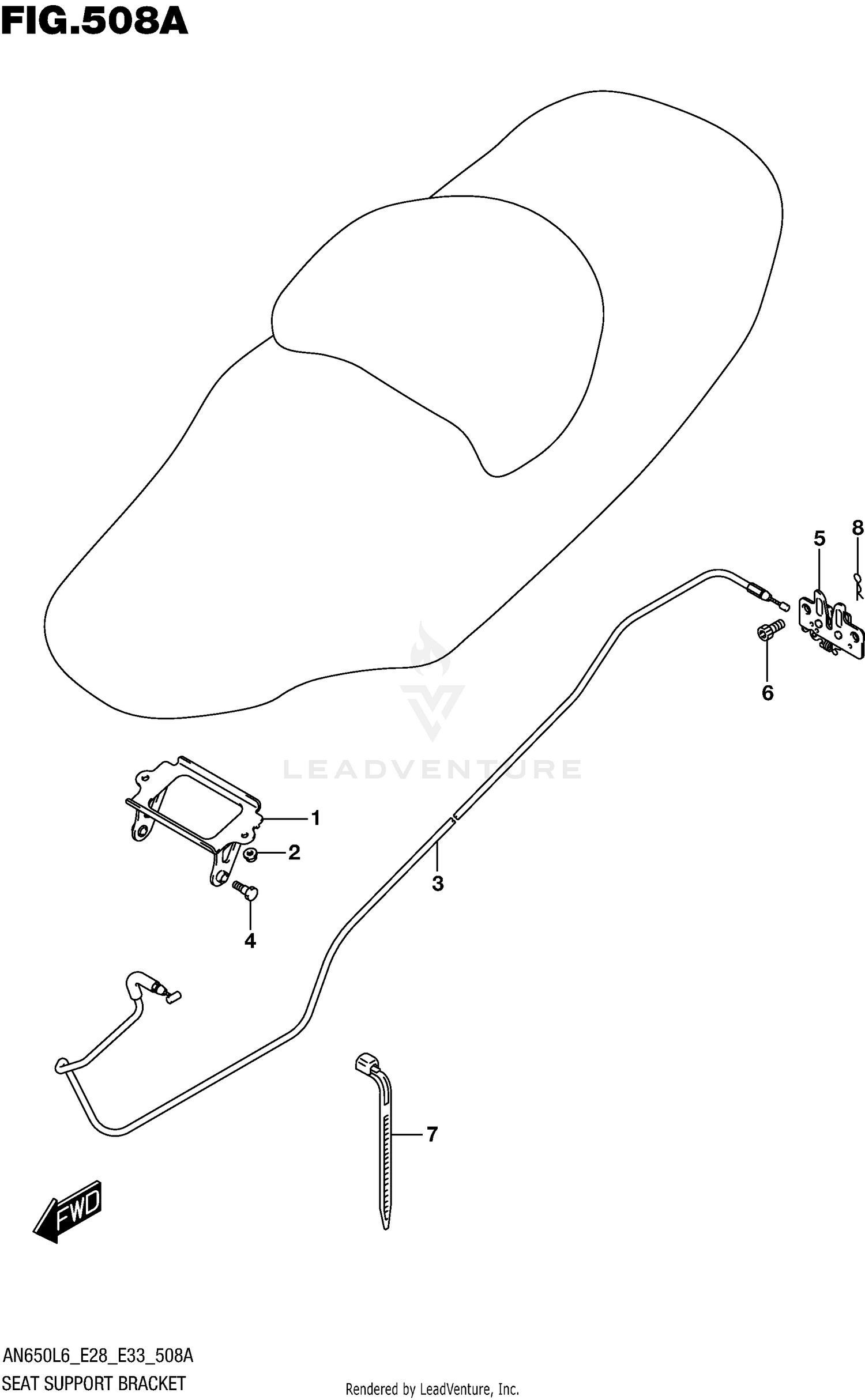

Seat Support Bracket Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, SEAT HINGE
45240-26J01
|
$54.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, SEAT LOCK
45280-26J01
|
$55.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X18.5)
09111-06068
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, STRIKER SUPPORT
45700-14FB2
|
$85.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
SNAP PIN
09385-05004
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
