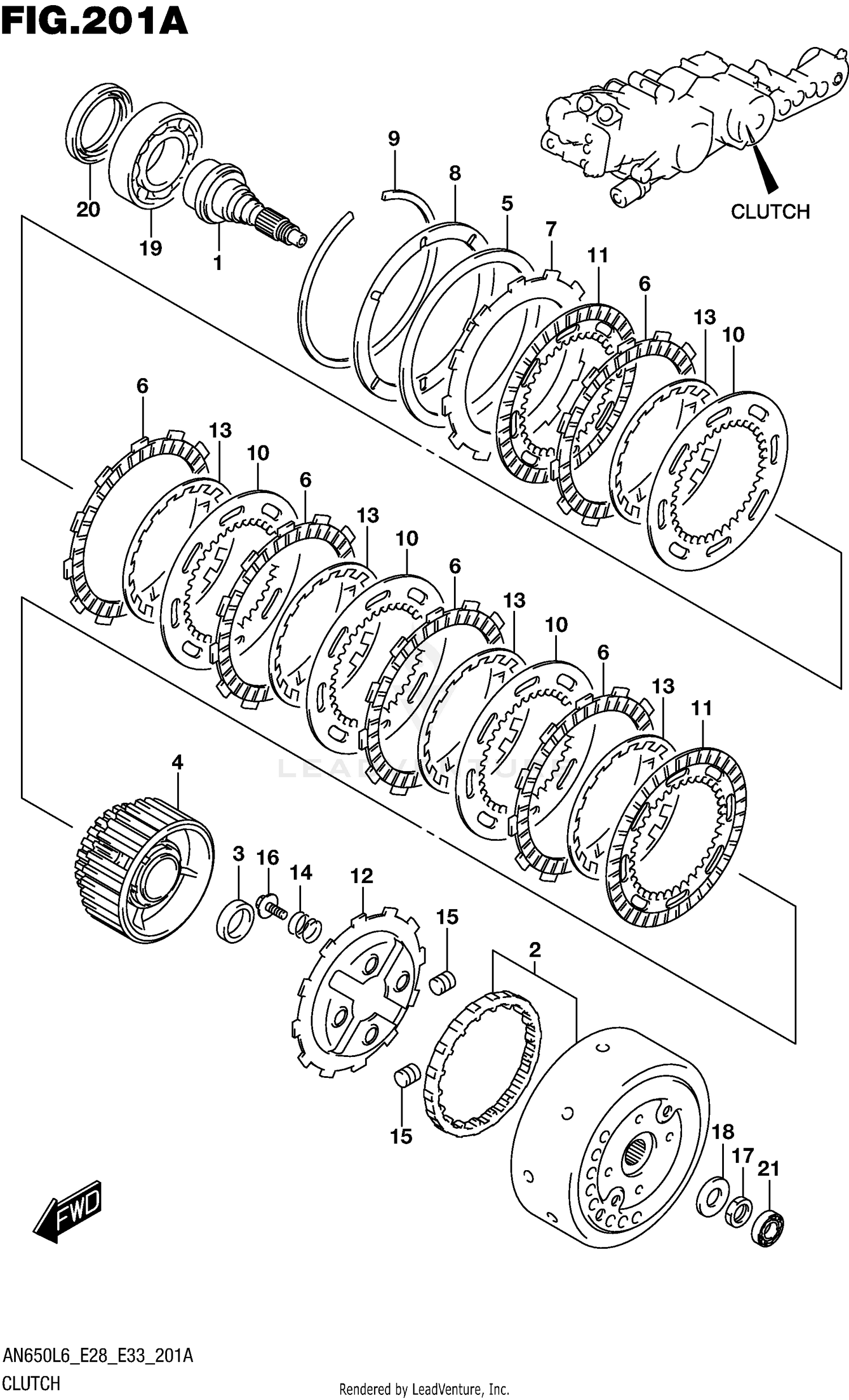

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, CLUTCH (NT:42)
21421-10G00
|
$209.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING SET, CLUTCH
21221-10830
|
$372.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, CLUTCH HOUSING
21222-10G00
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR SET, HUB CLUTCH SLEEVE
21321-10821
|
$464.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
(NT:31)
21321-10821
|
$464.08 | ||
|
Unavailable |
|||
|
#5
WASHER, CLUTCH SPRING WAVE
21412-10G00
|
$57.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,CLUTCH DR
21441-26J00
Superseded by 21441-26J10
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH DRIVE OUTER
21443-10G00
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
(T:3.2)
21443-10G00
|
$31.56 | ||
|
Unavailable |
|||
|
#8
SEAT, CLUTCH SPRING
21446-10G00
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP, CLUTCH OUTER
21447-10G00
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVEN NO.1
21451-10G10
|
$21.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
(T:2.0)
21451-10G10
|
$21.26 | ||
|
Unavailable |
|||
|
#11
PLATE,CLUTCH DR
21452-26J00
Superseded by 21452-26J10
|
$33.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE,CLUTCH DR
21452-26J00
Superseded by 21452-26J10
|
$33.14 | ||
|
Unavailable |
|||
|
#12
PLATE, CLUTCH INNER (T:3.2)
21465-10G00
|
$42.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CLUTCH PLATE
21472-10G10
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH REACTION
21512-10G00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROLLER, CLUTCH
21650-10G00
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (5X16)
09116-05020
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
09140-18016
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (18X30X2.5)
09160-18033
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING (50X72X12)
09262-50003
|
$118.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (50X64X7)
09283-50009
|
$17.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
08123-63010
Superseded by 08123-6301B
|
$17.69 | ||
|
Unavailable |
|||
