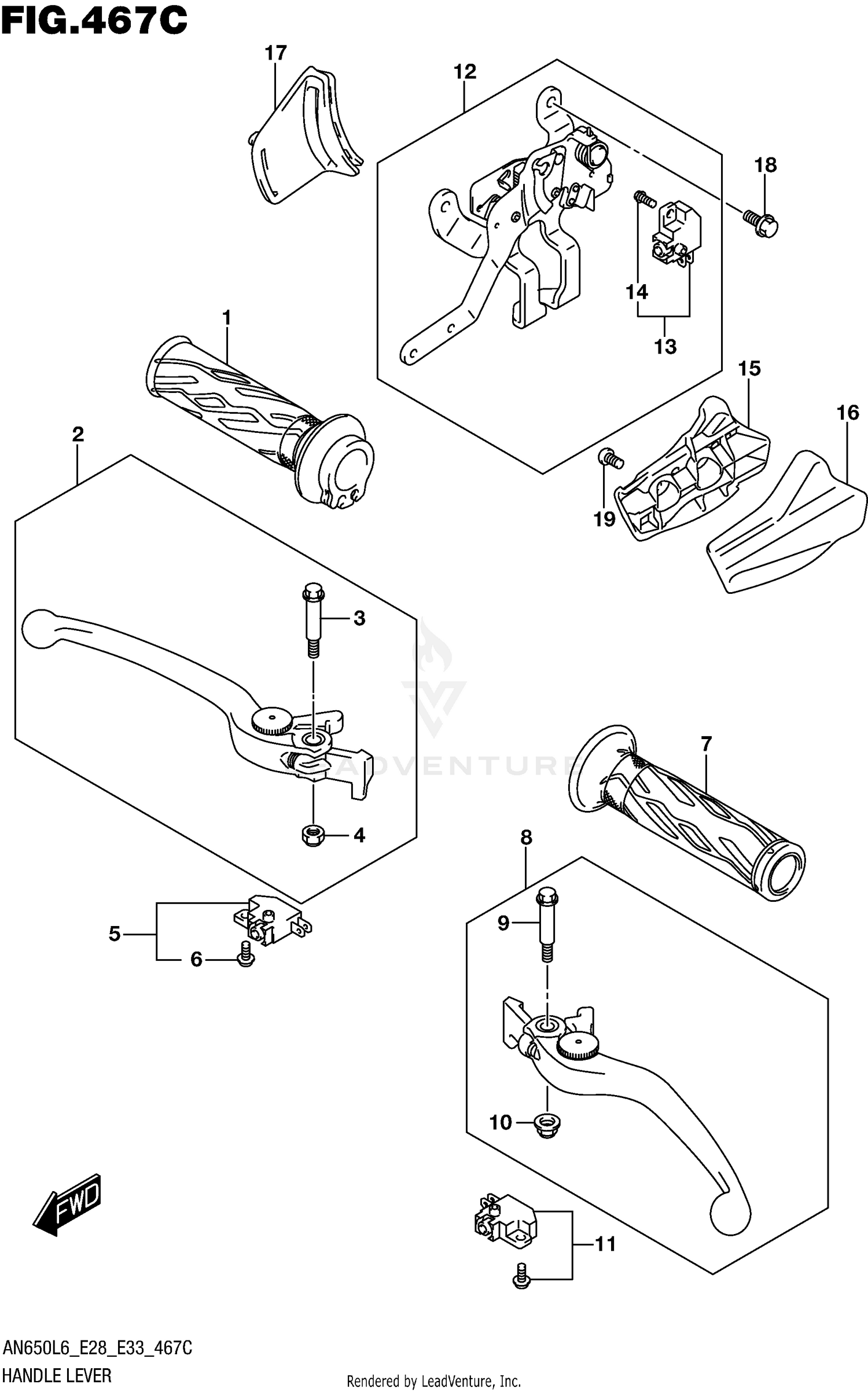

Handle Lever (an650zl6 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP,THROTTLE
57110-21H02
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY, FRONT BRAKE
57300-10G32
|
$54.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOLT, PIVOT
57431-17H02
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
.NUT
08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY,FR BRAKE
57460-14J01
Superseded by 57460-14J02
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP LH
57211-21H01
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER ASSY, REAR BRAKE
57500-10G32
|
$85.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT, PIVOT
57431-17H02
|
$9.47 | ||
|
Unavailable |
|||
|
#10
.NUT
08319-2106A
|
$2.37 | ||
|
Unavailable |
|||
|
#11
SWITCH ASSY,RR BRAKE
57560-14J01
Superseded by 57560-14J02
|
$51.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER ASSY, BRAKE LOCK
57800-26J00
|
$162.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY,FR BRAKE
57460-14J01
Superseded by 57460-14J02
|
$49.65 | ||
|
Unavailable |
|||
|
#14
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Unavailable |
|||
|
#15
KNOB, BRAKE LOCK
57821-26J00
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#16-1
GARNISH, BRAKE LOCK KNOB
57822-26J00-PGZ
|
$35.46 | ||
|
Available to order. Add to View Price |
|||
|
#16-1
(GRAY)
57822-26J00-PGZ
|
$35.46 | ||
|
Unavailable |
|||
|
#16-2
GARNISH, BRAKE LOCK KNOB
57822-26J00-RB5
|
$34.85 | ||
|
Available to order. Add to View Price |
|||
|
#16-2
(WHITE)
57822-26J00-RB5
|
$34.85 | ||
|
Unavailable |
|||
|
#16-3
GARNISH, BRAKE LOCK KNOB
57822-26J00-YKV
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#16-3
(BLACK)
57822-26J00-YKV
|
$29.20 | ||
|
Unavailable |
|||
|
#17
GROMMET, LEVER SEAL
57951-26J00
|
$12.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-0612B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-0508A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
