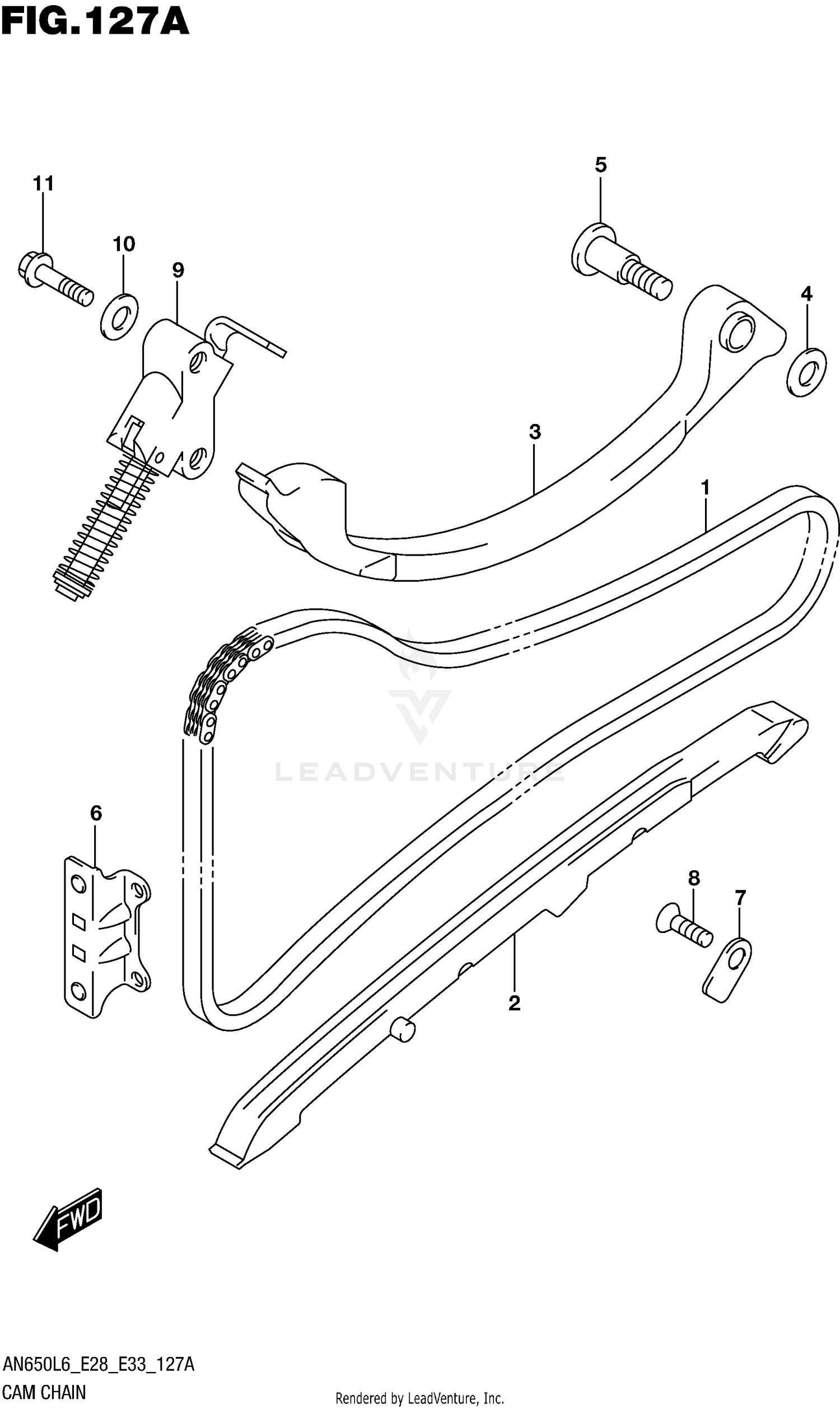

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAMSHAFT DRIVE
12760-19F01
|
$219.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN NO.1
12771-10G10
|
$28.57 | ||
|
Unavailable |
|||
|
#3
TENSIONER,CAM C
12811-10G11
Superseded by 12811-10G12
|
$64.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,LOCK
08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, CAM CHAIN TENSIONER
12812-26B02
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GUIDE, CAM CHAIN NO.2
12782-10G00
|
$34.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER,CAM CHAIN GUIDE NO,1
12773-24F00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02122-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER ASSY, TENSIONER
12830-10G01
|
$147.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET (6.2X13X1.2)
09168-06018
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, TENSIONER ADJUSTER
09103-06221
Superseded by 09103-06250
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
