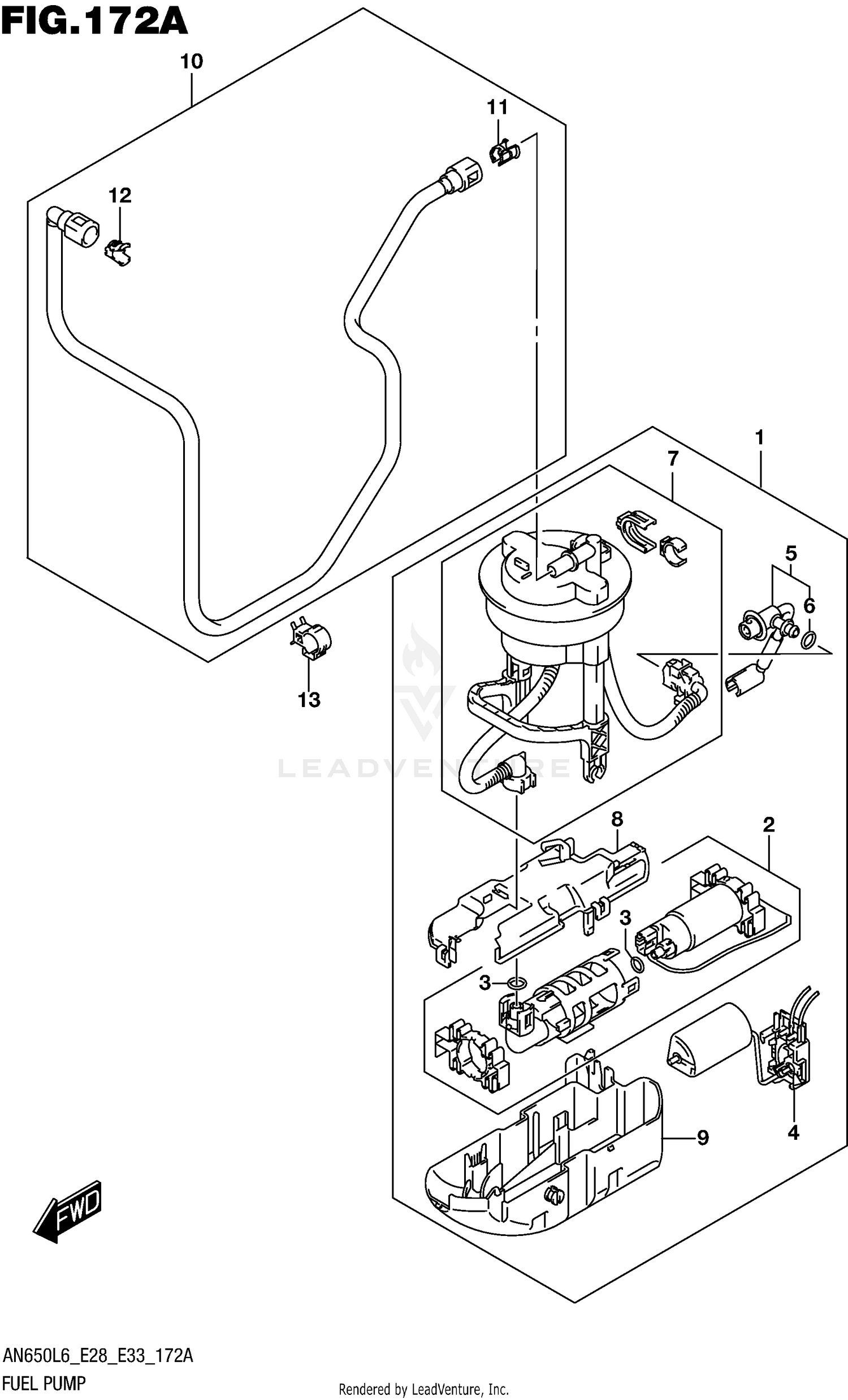

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,FUEL
15100-10G10
Superseded by 15100-10G11
|
$654.00 | ||
|
Unavailable |
|||
|
#2
.PUMP, FUEL
15110-10G00
|
$483.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
..O RING
15149-60B00
|
$9.15 | ||
|
Unavailable |
|||
|
#4
.GAUGE ASSY, FUEL LEVEL
34810-10G00
|
$151.23 | ||
|
Unavailable |
|||
|
#5
.REGULATOR, FUEL PRESSURE
15610-10G00
|
$232.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
..O RING
15149-10G00
|
$5.70 | ||
|
Unavailable |
|||
|
#7
FILTER,FUEL
15410-10G00
Superseded by 15410-10G01
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
.TANK, SUB NO.1
15211-10G00
|
$9.65 | ||
|
Unavailable |
|||
|
#9
.TANK, SUB NO.2
15212-10G00
|
$12.92 | ||
|
Unavailable |
|||
|
#10
HOSE, FUEL
15810-10G10
|
$129.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
.RETAINER
15815-10G00
|
$9.33 | ||
|
Unavailable |
|||
|
#12
.RETAINER
15815-35F00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
09403-15405
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
