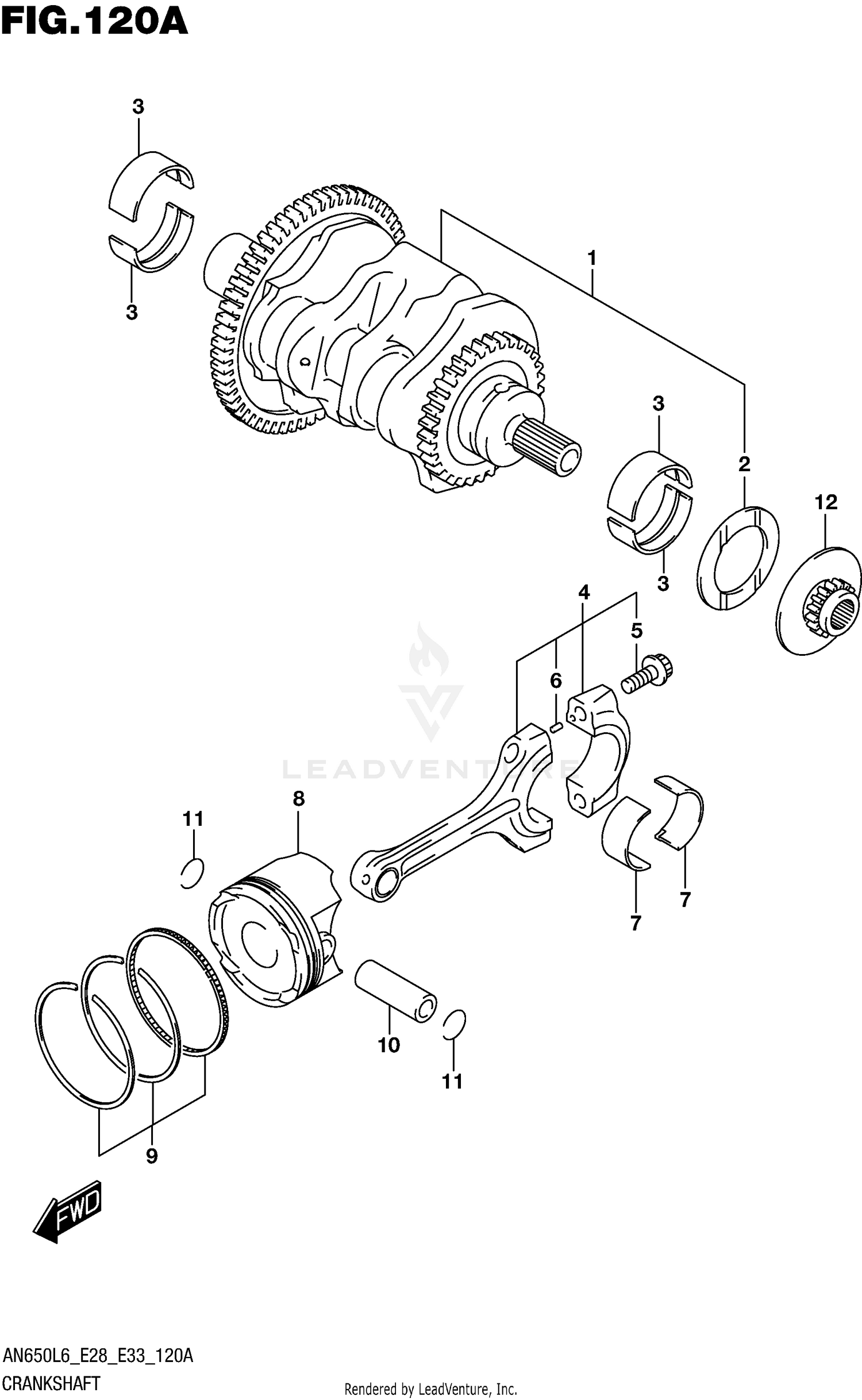

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SET
12200-10830
|
$1,277.83 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.WASHER (T:2.04)
09160-48005
|
$19.70 | ||
|
Unavailable |
|||
|
#2-2
.WASHER (T:2.06)
09160-48006
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#2-3
.WASHER (T:2.09)
09160-48007
|
$26.26 | ||
|
Available to order. Add to View Price |
|||
|
#2-4
.WASHER (T:2.11)
09160-48008
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#2-5
.WASHER (T:2.14)
09160-48009
|
$20.10 | ||
|
Unavailable |
|||
|
#2-6
.WASHER (T:2.16)
09160-48010
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
BEARING, CRANKSHAFT (GREEN)
12229-10G01-0A0
|
$18.88 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
BEARING, CRANKSHAFT (BLACK)
12229-10G01-0B0
|
$19.85 | ||
|
Available to order. Add to View Price |
|||
|
#3-3
BEARING, CRANKSHAFT (BROWN)
12229-10G01-0C0
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONNROD ASSY
12160-10G00
|
$156.34 | ||
|
Unavailable |
|||
|
#5
.BOLT, CONNROD
12163-10G00
|
$10.78 | ||
|
Unavailable |
|||
|
#6
.PIN, CONNROD
12165-27A50
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
BEARING, CRANK PIN (GREEN)
12164-10G00-0A0
|
$7.63 | ||
|
Unavailable |
|||
|
#7-2
BEARING, CRANK PIN (BLACK)
12164-10G00-0B0
|
$7.63 | ||
|
Unavailable |
|||
|
#7-3
BEARING, CRANK PIN (BROWN)
12164-10G00-0C0
|
$7.64 | ||
|
Unavailable |
|||
|
#7-4
BEARING, CRANK PIN (YELLOW)
12164-10G00-0D0
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (YELLOW)
12111-10G11-0F0
|
$127.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET, PISTON
12140-10G10
|
$111.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,PISTON
12151-10G00
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
SNAP RING
09381-16001
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPROCKET, CAM CHAIN DRIVE (NT
12731-10G10
|
$92.42 | ||
|
Available to order. Add to View Price |
|||
