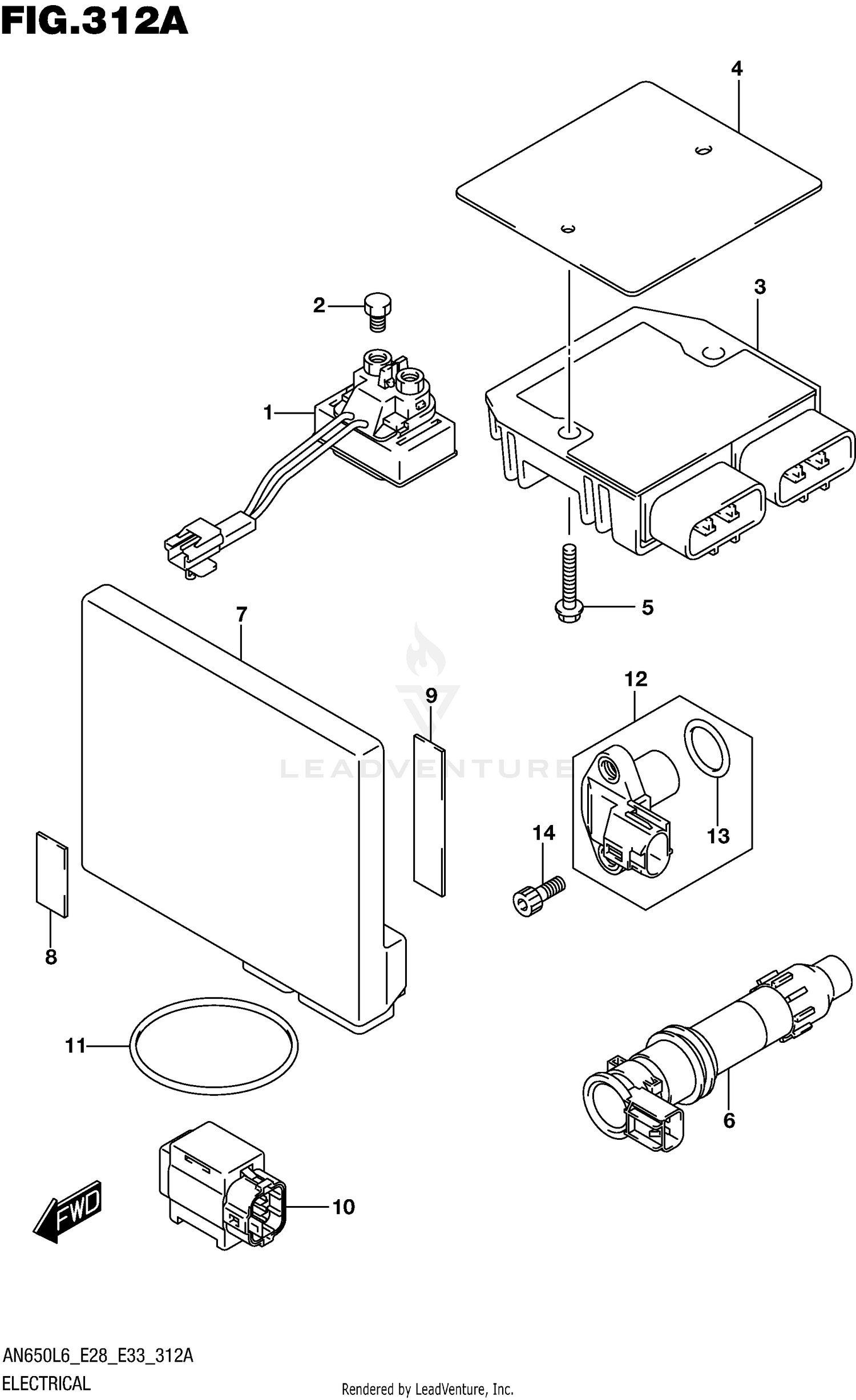

Electrical (an650l6 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STAR
31800-10G00
Superseded by 31800-10G02
|
$87.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY
32800-26J00
Superseded by 32800-26J02
|
$283.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, RECTIFIER
32832-26J00
|
$22.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02162-0630A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL ASSY,IGNITION
33410-47H00
|
$199.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONTROL UNIT,FI
32920-26J10
Superseded by 32920-26J11
|
$1,696.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, FI CONTROL UNIT
33651-37000
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING(D:3.5,ID
09280-63003
Superseded by 09280-61004
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY, CAM POSITION
32160-02F10
|
$167.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PACKING
32161-02F00
|
$10.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X16)
09106-06073
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
