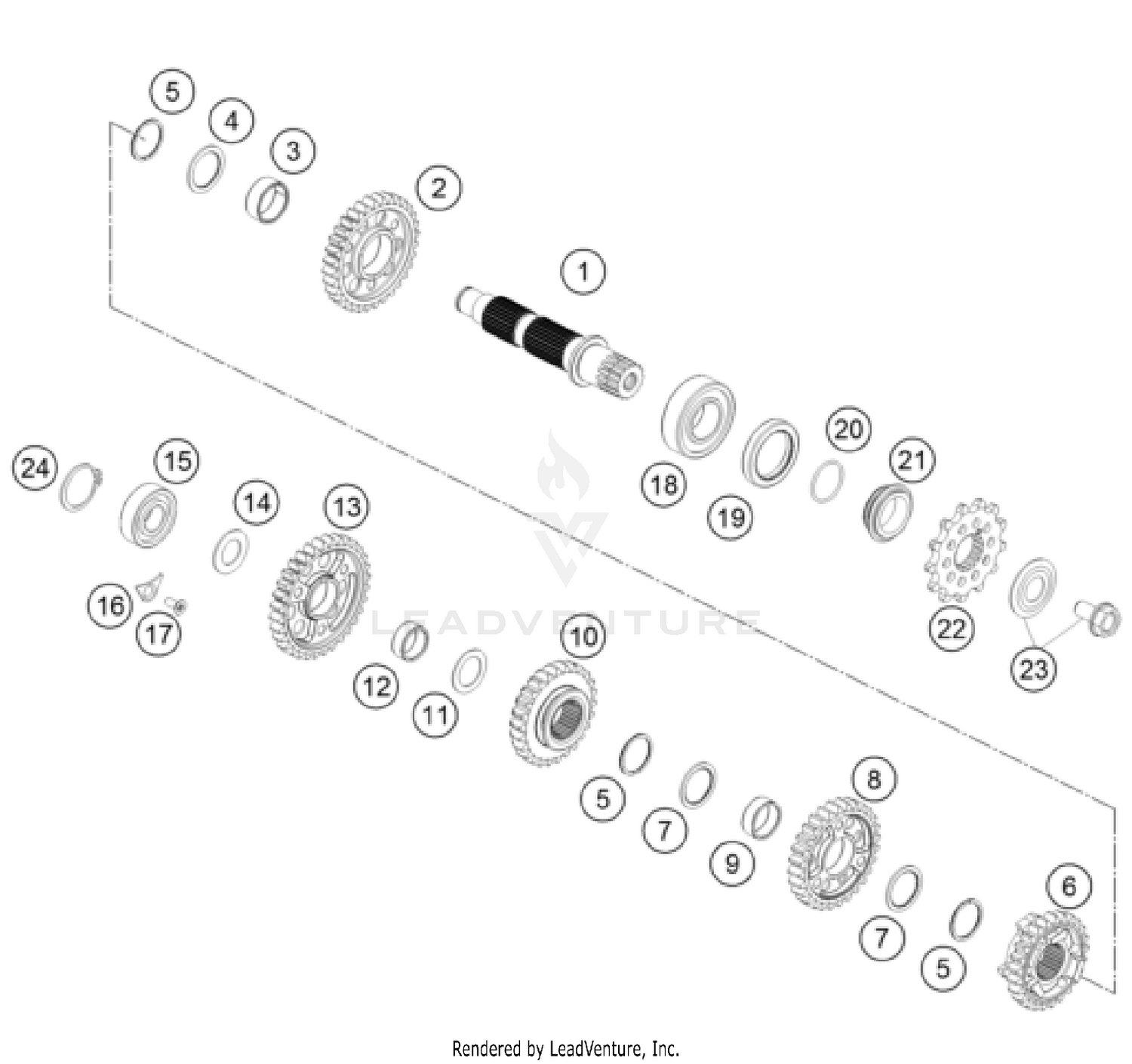

Transmission Ii - Countershaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Output shaft
79133010000
|
$233.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
Idler gear, 2nd gear
79133012000
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEDDLE BEAR. K24X28X11,9 DIV.
0405242812
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOP DISC 24X32X1,5
77733044000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP WS24
0417024000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Sliding gear, 5th gear
79133015000
|
$169.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOP DISC 23,4X31X1,5
77733043000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Idler gear, 3rd gear
79133013000
|
$149.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEEDLE BEAR.K 22X26X10 DIVIDED
0405222611
|
$13.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Sliding gear, 4th gear
79133014000
|
$160.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOP DISC 20,2X30X1
54833080000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE BEARING K20X24X10
0405202410
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
idler gear 1 st.
79133011000
|
$151.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOP DISK 17,2X30X1,3
77233020000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALL BEARING 6203 JR2 C3
0625062035
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
INT. TORX FLAT HEAD M5X12 T25
0019050121S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
cylindrical roller bearing NJ205
49030023000
|
$87.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT SEAL RING 32X45X7 BSLNBR
0760324571
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING 25,12X1,78 NBR70
0770020220
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPACER SLEEVE COUNTER
78133014000
|
$33.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
Front sprocket 13áteeth
79233029013
Superseded by A46033029013
|
$36.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Front sprocket 14áteeth
79233029014
Superseded by A46033029014
|
$36.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW 10.9+SPRING WASHER
59033034044
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CIRCLIP DIN 0471-17X1, 5
0471170015
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
