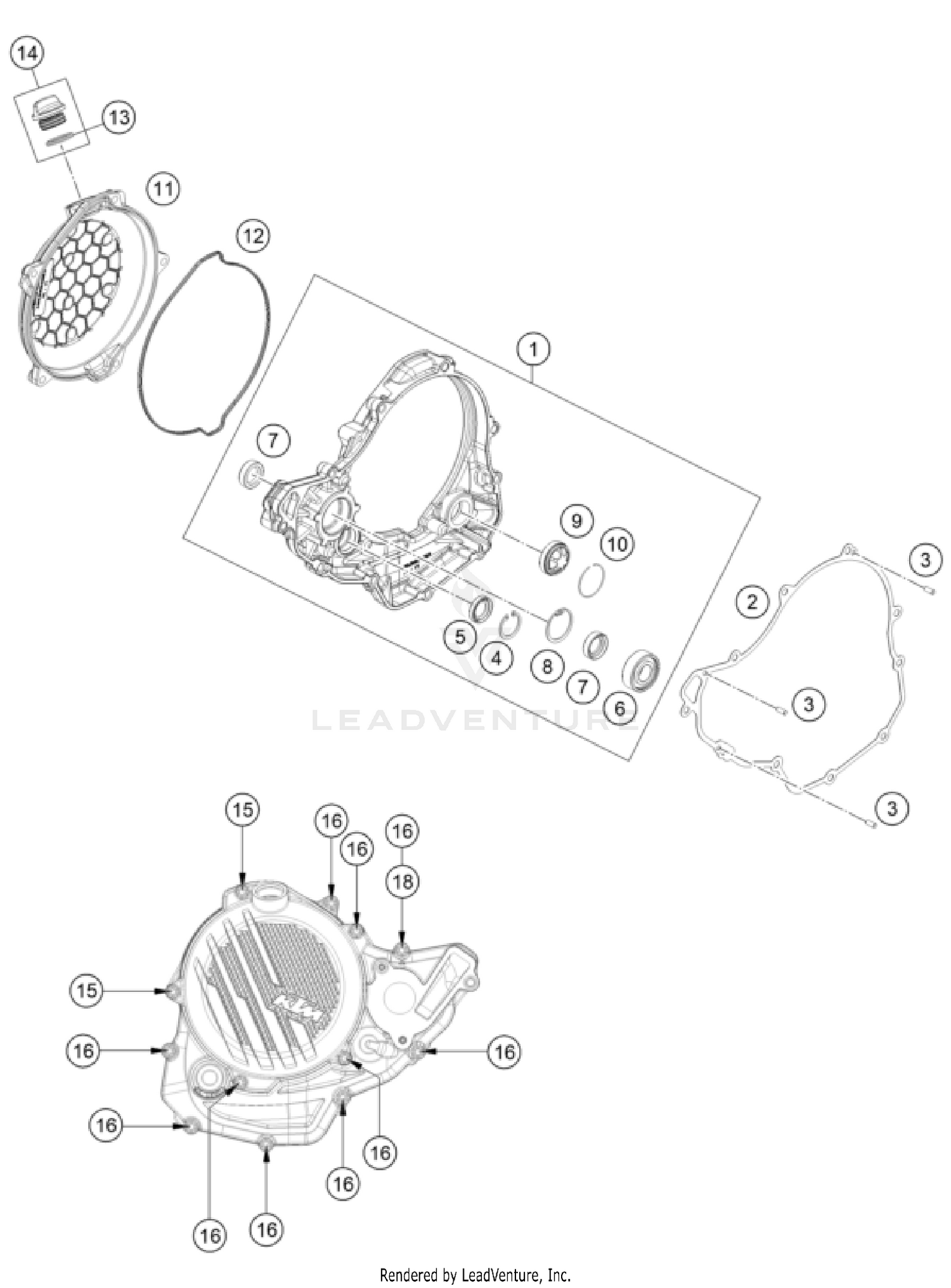

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
inner clutch cover cpl.
A46030001033
|
$96.19 | ||
|
Unavailable |
|||
|
#2
Clutch cover gasket
A46030025000
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP DIN0472-24X1.2
0472024120
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SHAFT SEAL RING 14X24X5 VITON
0760142450
|
$18.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BALL BEARING 6202 C0 2
0625062022
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT SEAL RING 15X30X4.5 BAUD
07601530451
|
$8.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CIRCLIP 30X1,2
0472300120
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SIGHT GLASS
59030019200
|
$25.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CIRCLIP OIL LEVEL GLASS 03
61030019050
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Clutch cover outside
A48030026000C1
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
Clutch cover gasket external
A48030027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL FILLER CAP M24x3 WITH O-R
79430020033
|
$9.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
