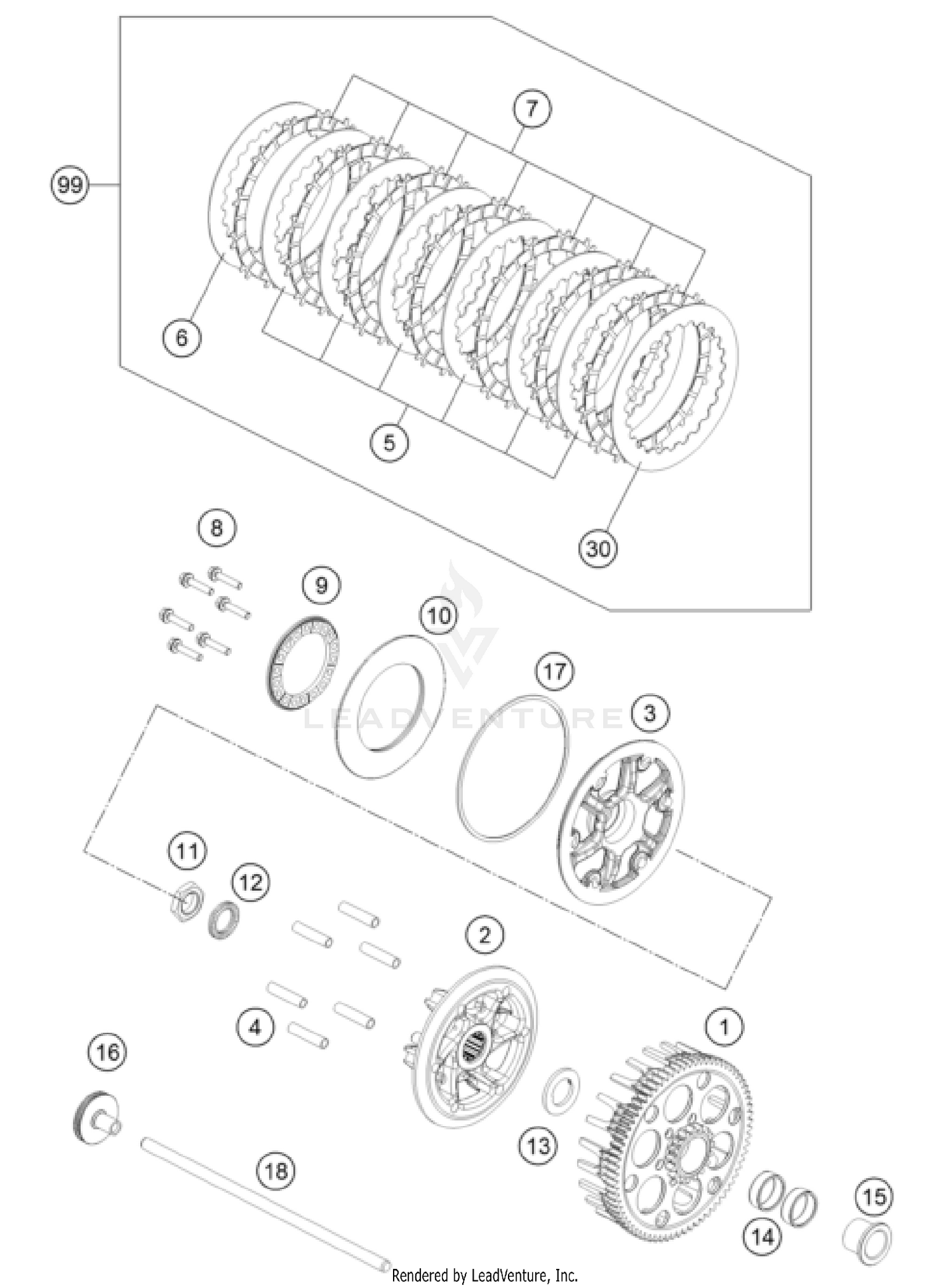

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Outer clutch hub
A46032001072
|
$224.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
Inner clutch hub
A46032002000
|
$77.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
Pressure plate
79332003000
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
Sleeve, 7.95x35
79232004000
Superseded by 79232104000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
INTERMEDIATE DISC 1,4MM 2002
59032010200
|
$12.86 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
INTERMEDIATE DISC 1MM 2002
59032010100
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Lining disc 1,95mm
79532011000
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH COLLAR SCREW M5X25 ISA30
0025050256
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Spring retainer
78132006200
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLUTCH SPRING ''300Nm''
76432005000
|
$89.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex nut DIN0936-M18x1.5 right
0936181506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Wedge lock washer 19.5x29x3.4
0252012002900
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER 22 X 36,5 X 3
78932009000
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE BEAR K 25X29X10
0405252910
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
Collar sleeve
A46032015000
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
PRESSURE PIECE CPL. 08
78032057044
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER 112X118X1.5
78132013000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
PUSH ROD
79232054000
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
INTERMEDIATE DISC 1MM
78932010000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#99
Disk pack
79332010033
|
$235.61 | ||
|
Available to order. Add to View Price |
|||
