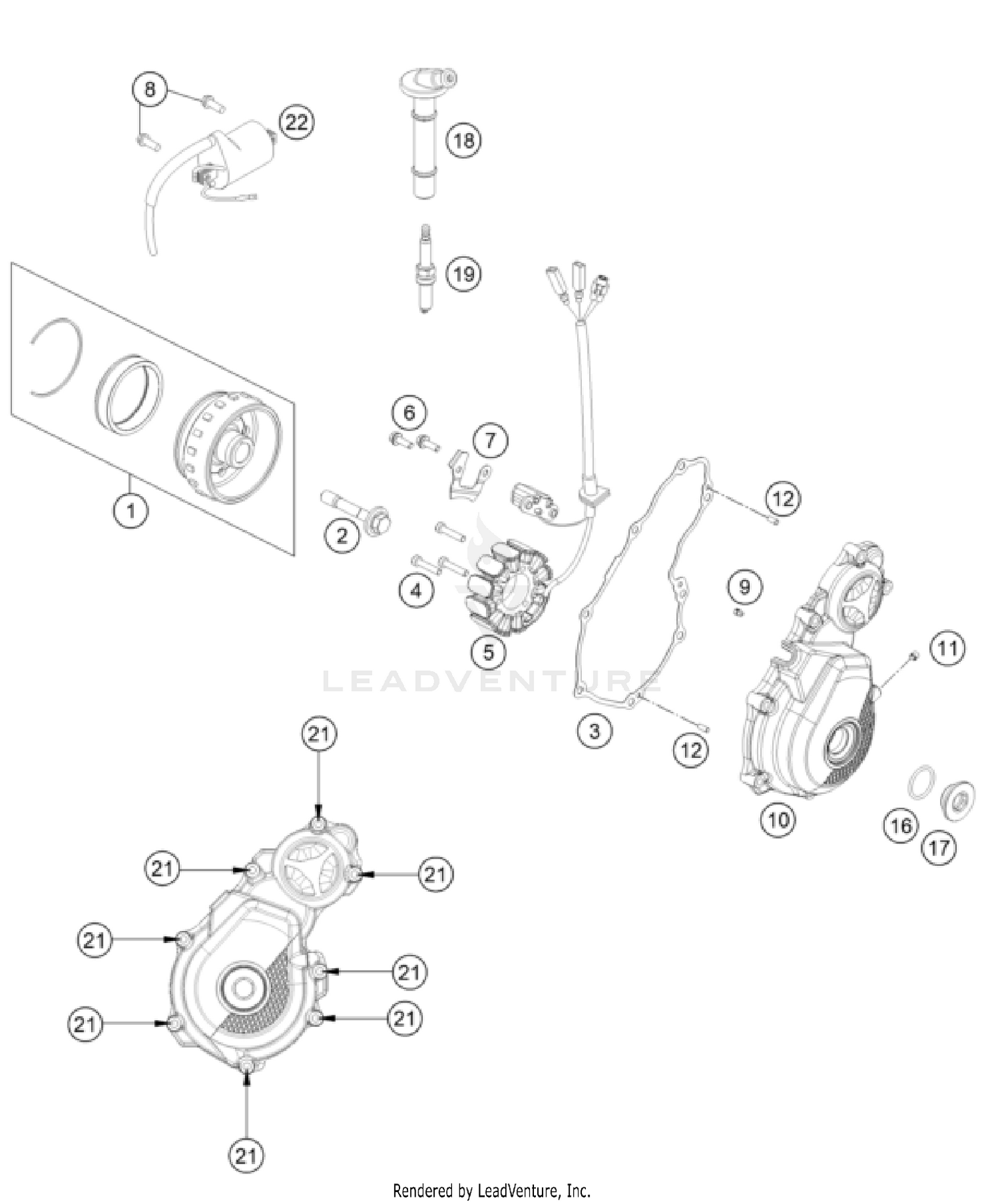

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rotor EFI cpl.
79239005044
Superseded by 79239005144
|
$640.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLYWHEEL SCREW
77339010100
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
Ignition cover gasket
A46030040000
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cap head screw DIN 6912 - M5x30 self loc
0012050303S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Stator
79239004200
|
$240.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Cable retainer
79230002050
Superseded by A46030002050
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR SCREW M6X18 ISA30
0026060186
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL JET ''60'' M4
80030058060
|
$13.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Ignition cover
A46030002000C1
|
$100.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
THREAD PIN DIN 913 M5X6
0913050063S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
o-ring 24.00x2.50 Viton
07700240251
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW PLUG M24X1,5
7723000216030
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
Spark plug connector
79139090000
Superseded by 79139190000
|
$69.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
spark plug NGK LMAR9AI-10
77839093000
|
$26.72 | ||
|
Unavailable |
|||
|
#21
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
IGNITIONCOIL IG3826 KOKUSAN'96
58439006000
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
