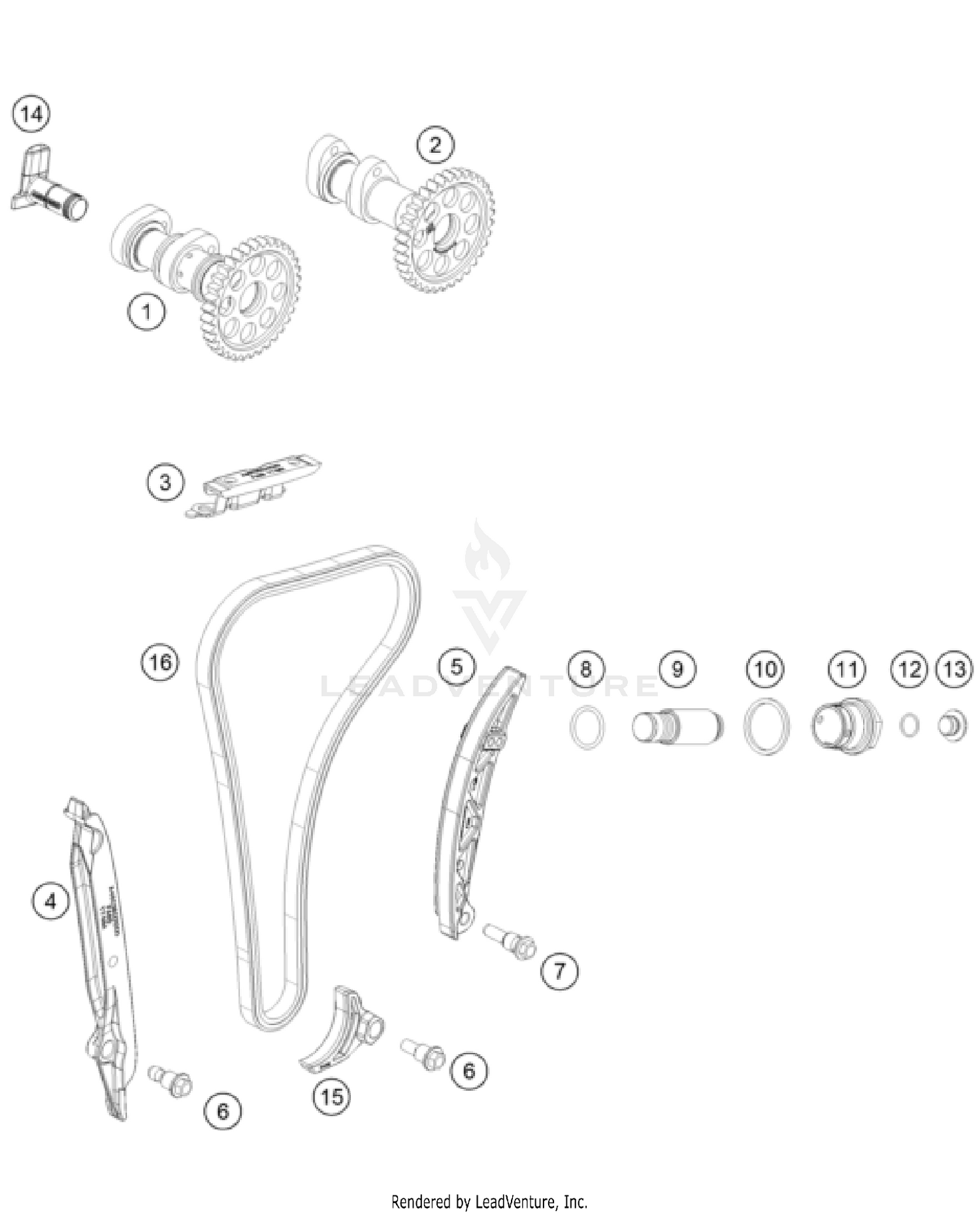

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Intake camshaft
A46036009000
|
$150.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
Exhaust camshaft
A46036010000
|
$149.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
Slide bars
A46036004000
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Slide bars
A46036001000
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Slide rail
A46036002000
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING SCREW M6
77236001160
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING SCREW M8
77236002160
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
o-ring 18.00x2.00 NBR70
0770180020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Chain tension adjuster, hydraulic
77036003200
|
$62.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
CU SEAL-RING DIN7603 A24X29X2
0603242920
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDING BOLT M24X1,5
77336008000
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
o-ring 10.00x1.00 NBR70
0770010010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW PLUG
77236080100
Superseded by 77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
ANGLE PIECE F. BREATHER SYSTEM
77236081000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SECURING PROTECTION
77236005000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Timing chain
A46036013000
|
$59.72 | ||
|
Available to order. Add to View Price |
|||
