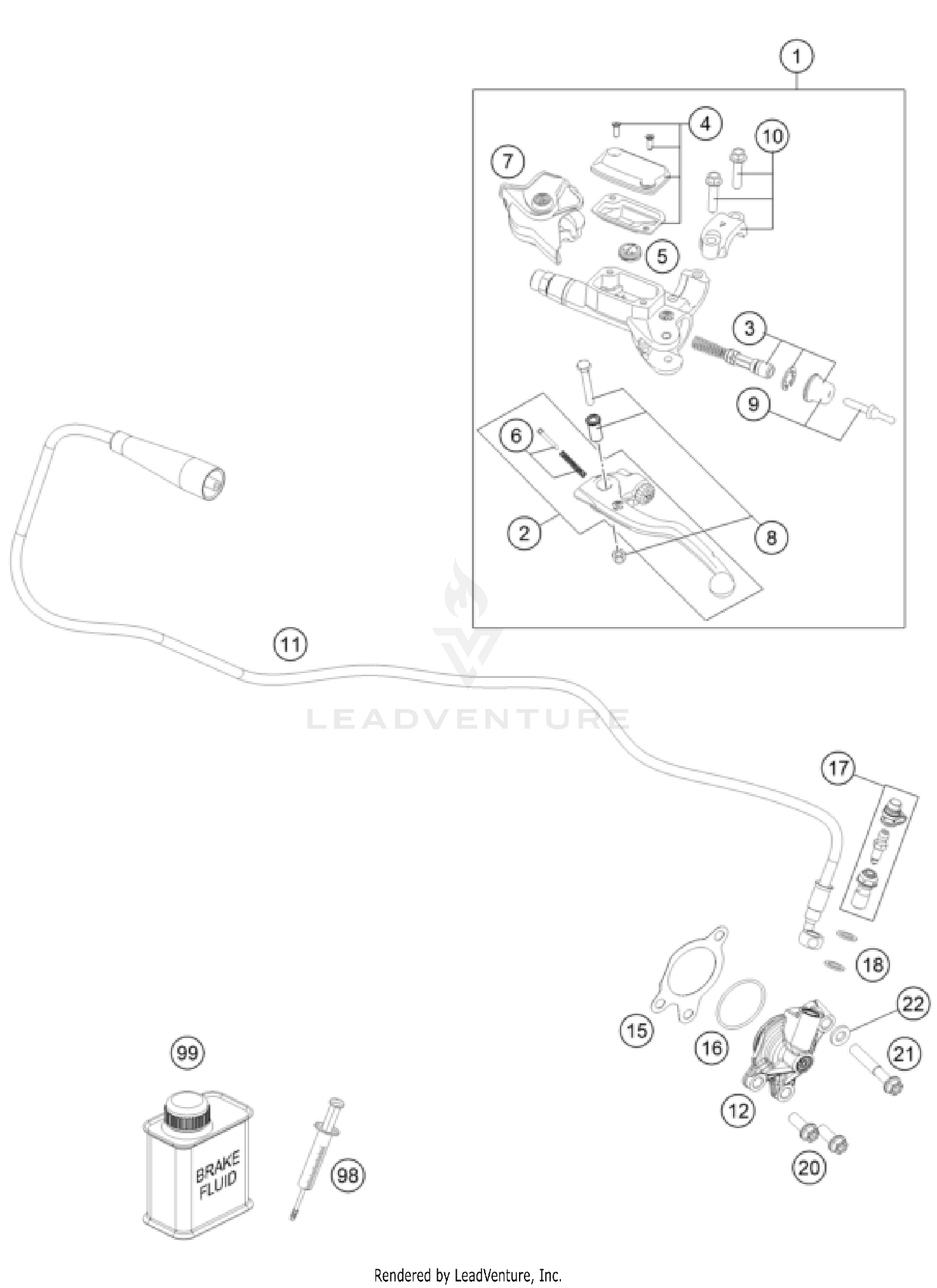

Clutch Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER CPL.
79202030044
|
$315.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH LEVER CPL. BREMBO 06
54802031000
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
REP. KIT PISTON 9MM
79202032044
|
$71.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER HYD. CLUTCH CPL. 2014
5480200310030
|
$43.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE
54802051000
|
$22.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT KPL.
54802052000
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PROTECTION CAP 06
54802037000
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER SCREW CPL. 06
54802038100
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PUSH ROD CPL.
54802046000
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP CPL. 06
54802005100
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH PIPE
79232063000
|
$132.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
OUTPUT CYLINDER CPL.
79232061044
|
$220.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
Seal, slave cylinder
79232065100
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BLEEDER SCREW CPL.
79032064000
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL RING CU DIN7603- 8X12X1
0603082121
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#98
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#99
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
