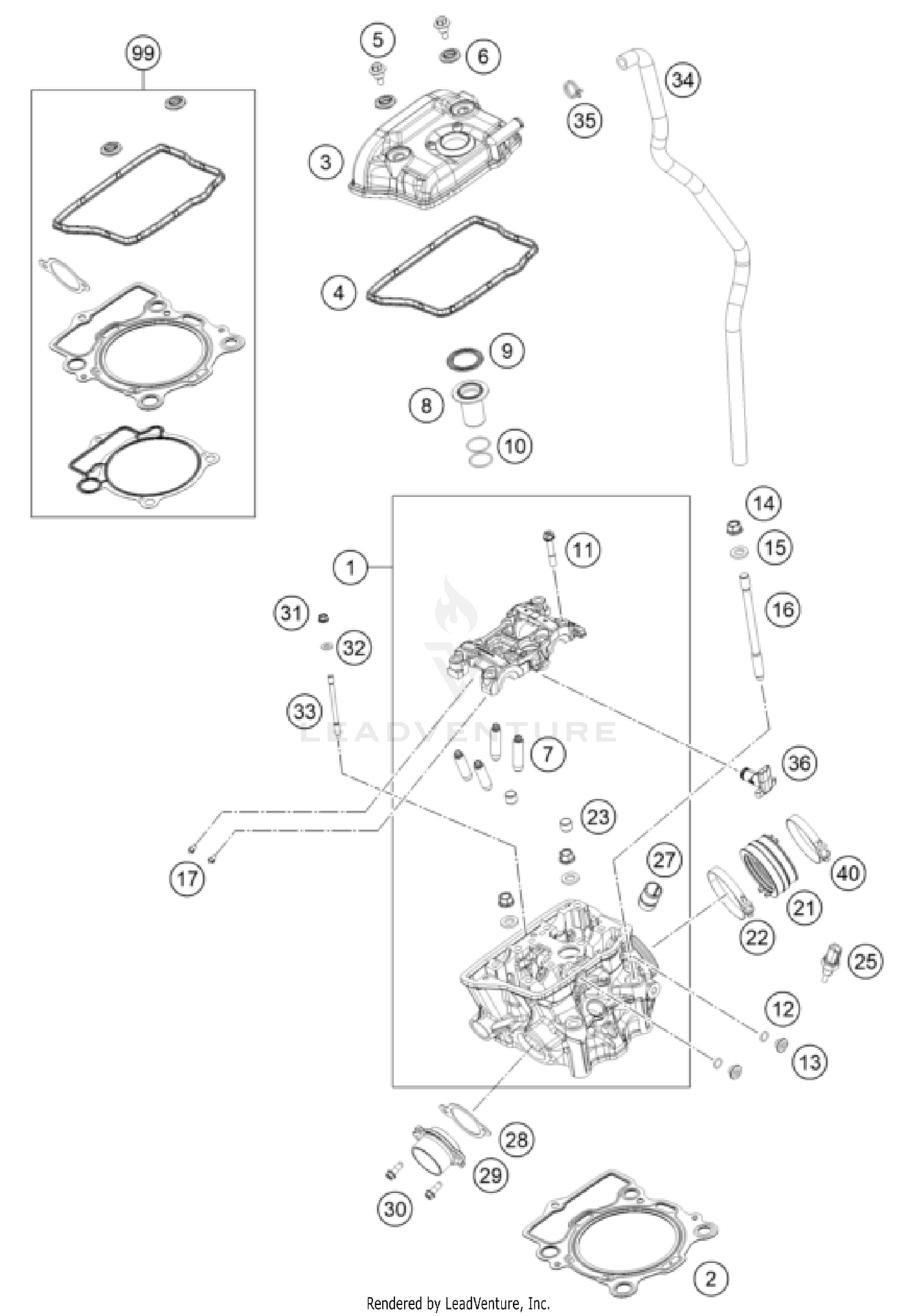

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder head cmpl.
A46036020044
|
$537.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
Cylinder head gasket
A46030036072
|
$60.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
Valve cover
A46036052000C1
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
Valve cover seal
A46036053000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE COVER SCREW
77336054150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
Sealing element
77036054150
Superseded by 77036054250
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE GUIDE OUTLET
77136026001
|
$32.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spark plug shaft insert
A46036075000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET SPARK-PLUG SHAFT
77336053050
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-ring 23x1.5 Viton
07702300151
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
Collar screw M7x1x38
0000150703800
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING 9x1,5 V80 SH
0770090015
Superseded by 07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW PLUG
77236080100
Superseded by 77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR NUT M10X1,25 SW13
77336088210
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
washer 19x10.5x2.5
77336089010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Stud M10x1,25
0900000814500
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
rubber sleeve
79536044000
|
$33.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE CLAMP GEMI 63MM 05
61036047000
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
dowl sleeve 10.2x12.5x10
58530014100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
water temperature sensor
79435047000
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW IN NOZZLE M20X1,5
58030010200
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
Exhaust pipe flange gasket
A46036041000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#29
Engine flange
A46036039000
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR NUT M6X1 SW8
77336088106
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Stud M6
0900000607900
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
ENGINE BREATHER TUBE
79030087000
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP YDNAC 10173 (18MM)
58431082300
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Angle piece, engine breather
A46036081000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE CLAMP GEMI 58MM
77236048000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#99
Cylinder gasket kit mx 250
A46030097000
|
$94.15 | ||
|
Available to order. Add to View Price |
|||
