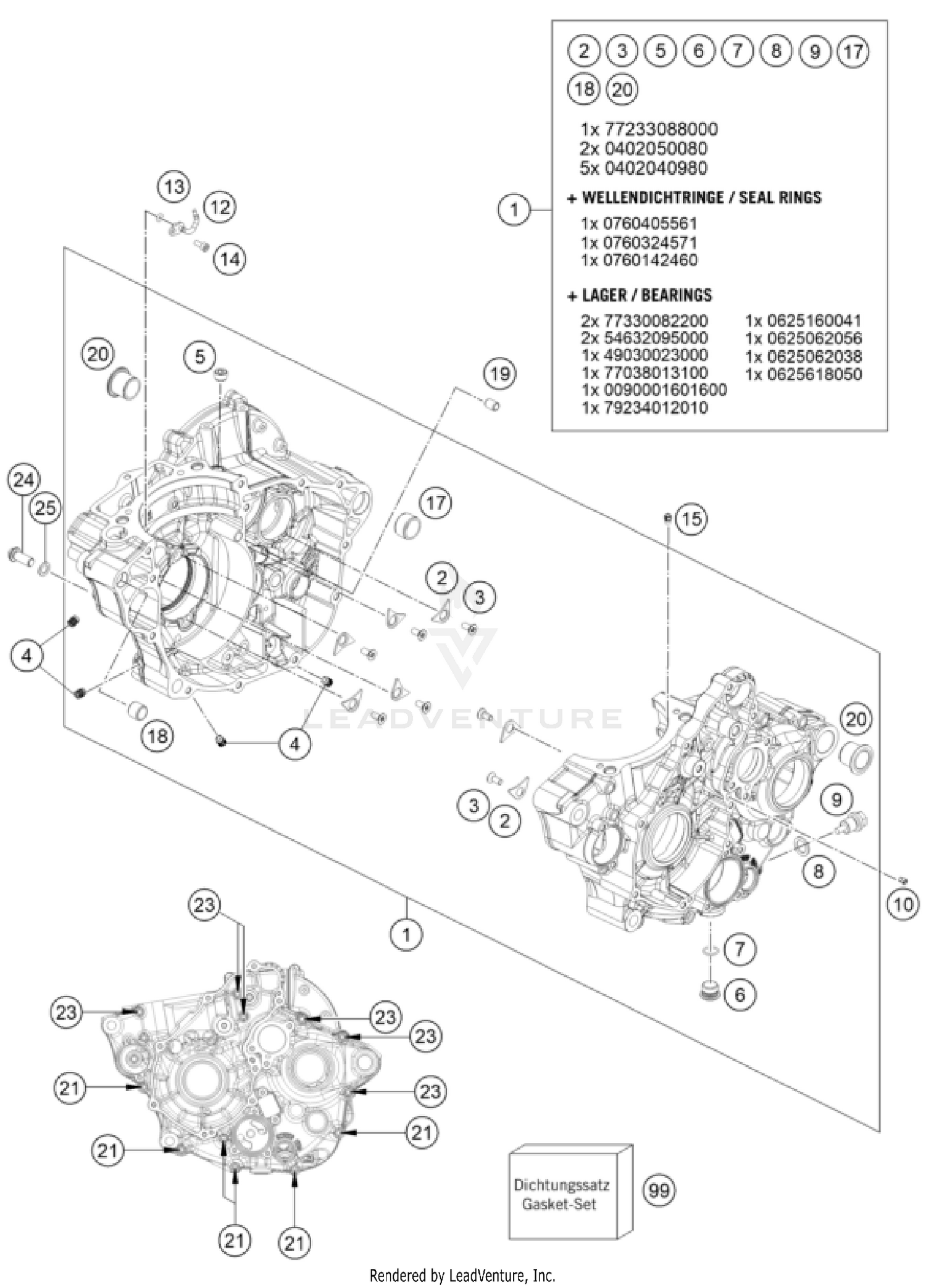

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
engine case cpl.
A46030000044
|
$1,047.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INT. TORX FLAT HEAD M5X12 T25
0019050121S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Nozzle
79330058040
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
pipe plug DIN 906 M10x1
0906100100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw plug M24x1.5
78036081000
Superseded by 78036081100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING 1,5x11 SILICON
0770110015
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
oildrain plug with magnet
58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
OIL JET ''60'' M4
80030058060
|
$13.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
OIL JET ANGLED 50
81230164050
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING 3,5X2,00 NBR
0770035020
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Cylinder screw DIN 912-M4x10-8.8 SS
0912040103S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
DOWEL 17 X 19 X 12
59030024000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Housing bush
79230010000
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M6x55 TX30
0025060556
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH COLLAR SCREW M6X70 TX30
0025060706
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LOCATING SCREW M8 L=25
77730080000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CU-SEAL RING 8 X 14 X 3
58030081000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
Engine seal kit 250cc
A46030099000
|
$298.86 | ||
|
Available to order. Add to View Price |
|||
