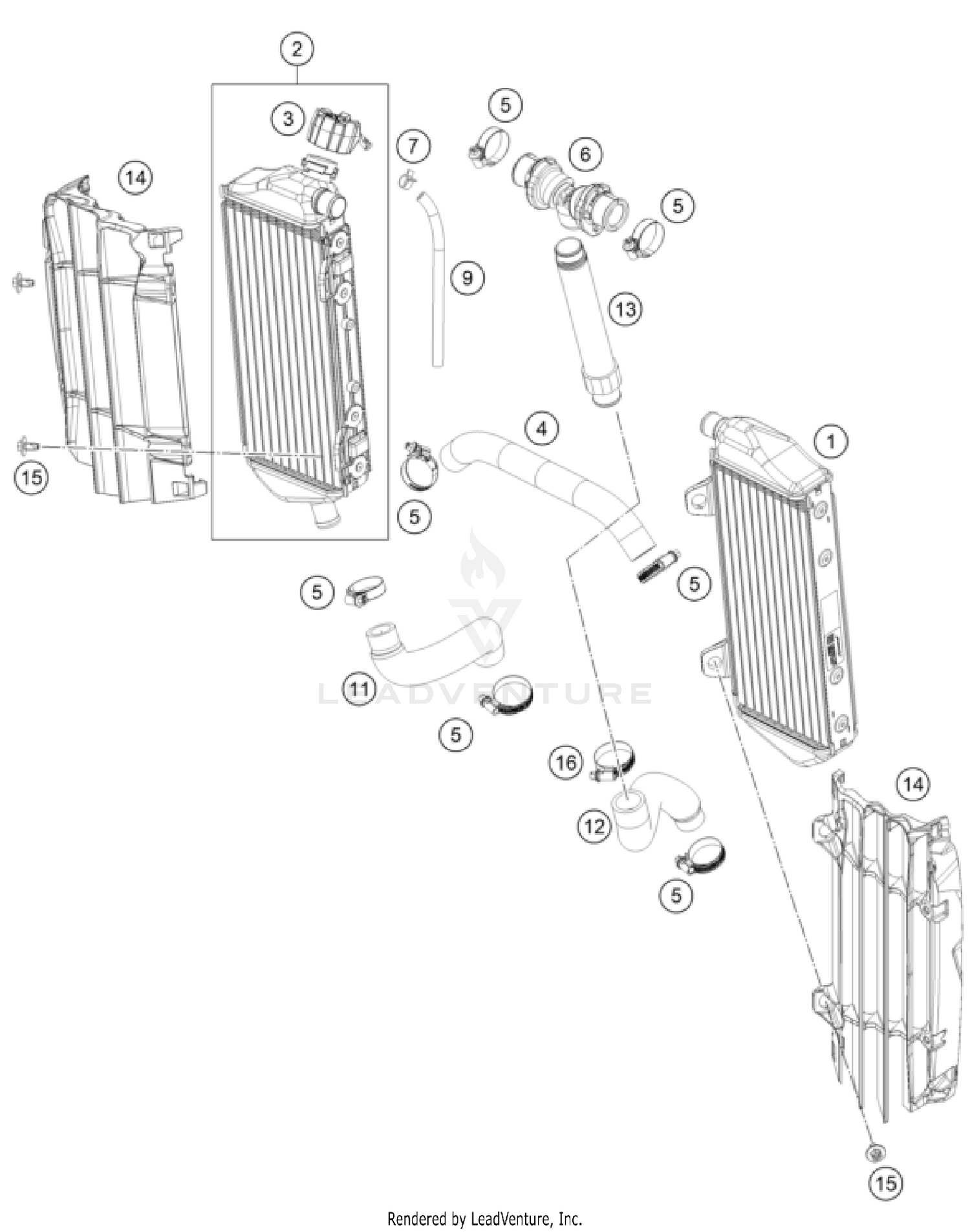

Cooling System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Radiator left
A46035007000
|
$129.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
Radiator right
A46035008000
|
$162.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
Radiator cap
A46035009000
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
Pre-formed hose radiator left/right
A46035025000
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hose clip 18-29
0310000902900
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Y-piece cmpl.
A46035071044
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP YDNAC 10096F (9,6MM)
59007017000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
VENT HOSE 6X9 L=140
50307000140
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
Pre-formed hose engine/radiator right
A46035024000
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
Pre-formed hose, engine/riser
A46035023000
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw-in nozzle
A46035073033
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
Radiator protection set, black
A46035036044C1
|
$62.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH ISR collar screw M6x12-10.9 ISA30
0024060123
Superseded by 0900000601203
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Hose clip 20-32
0310000903200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
