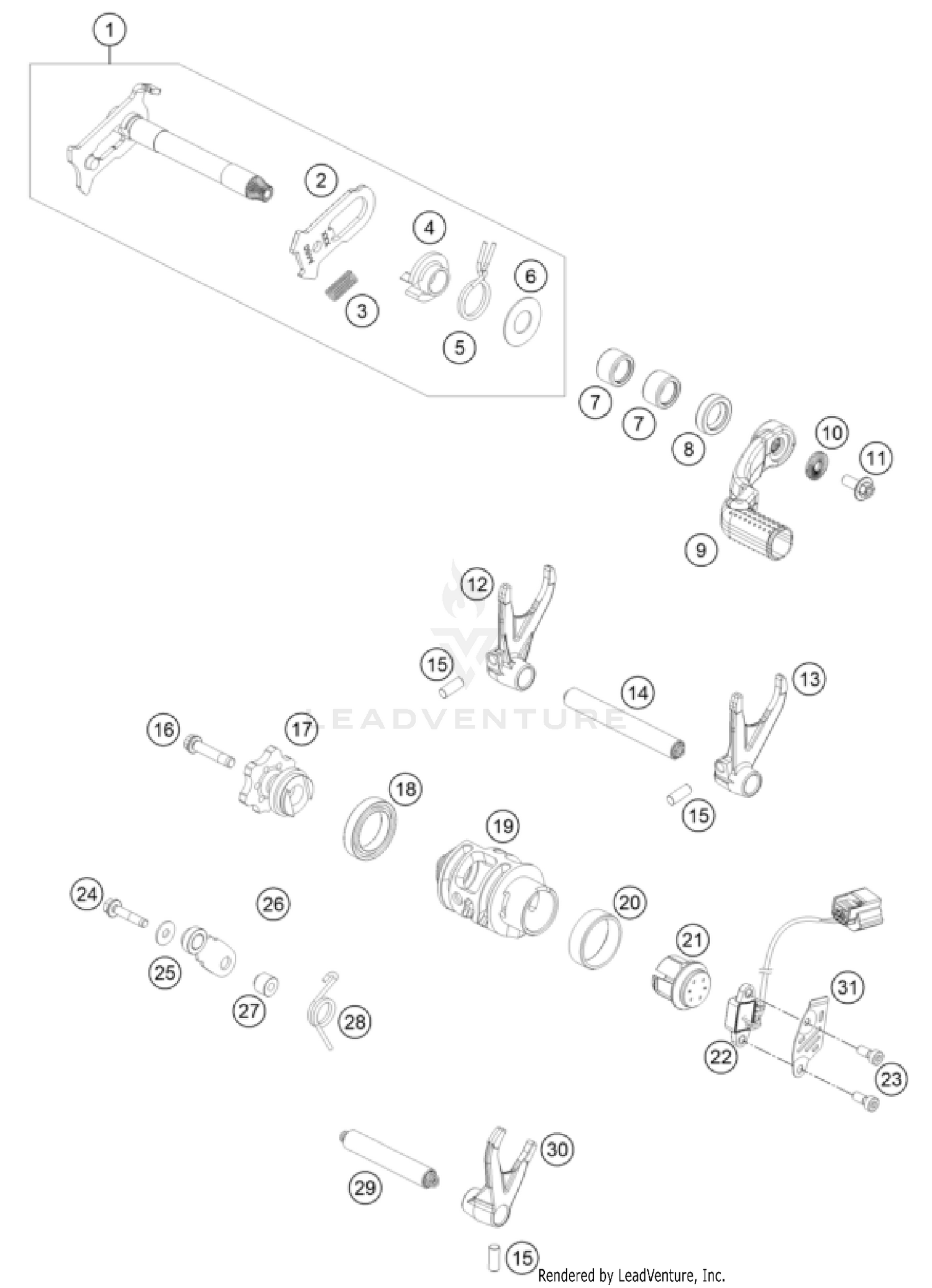

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Shift shaft cpl.
A46034005033
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
Sliding plate cmpl.
A46034008044
|
|||
|
Unavailable |
|||
|
#3
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETURN SPRING 03
54834014000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHIFT LEVER CPL.
79234031100
|
$120.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAIR NORDLOCK WASHER M6
50233041500
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x15 TX30
0024060156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SHIFTING FORK 1.-3. GEAR
79034003000
|
$94.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIFTING FORK 2. GEAR
79034002000
|
$94.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
Shift fork shaft (L=93 mm)
A46034019000
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M6x30 TX30
0025060306S
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Shift star
A46034015000
Superseded by A46034115000
|
$19.99 | ||
|
Unavailable |
|||
|
#18
BALL BEARING 61805 C3
0410002500700
Superseded by 0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shift drum 5 gear
A46034012000
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRICTION BEARING CONTROLLER
79234012010
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
magnet holder cpl.
79234012020
|
$69.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
gear position sensor
79211023000
|
$142.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
CYL. SCREW DIN6912 M5X14 8.8
0984050143S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HH collar screw M5x25 TX30
0025050256S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Detent arm cmpl.
A46034024044
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
SLEEVE FOR LOCKING LEVER
54634052300
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOCKING LEVER SPRING 03
54834023000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Shift fork shaft (L=66ámm)
A46034020000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIFTING FORK 4.-5. GEAR
79034001000
|
$94.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
Shield gear position sensor
A46011024000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
