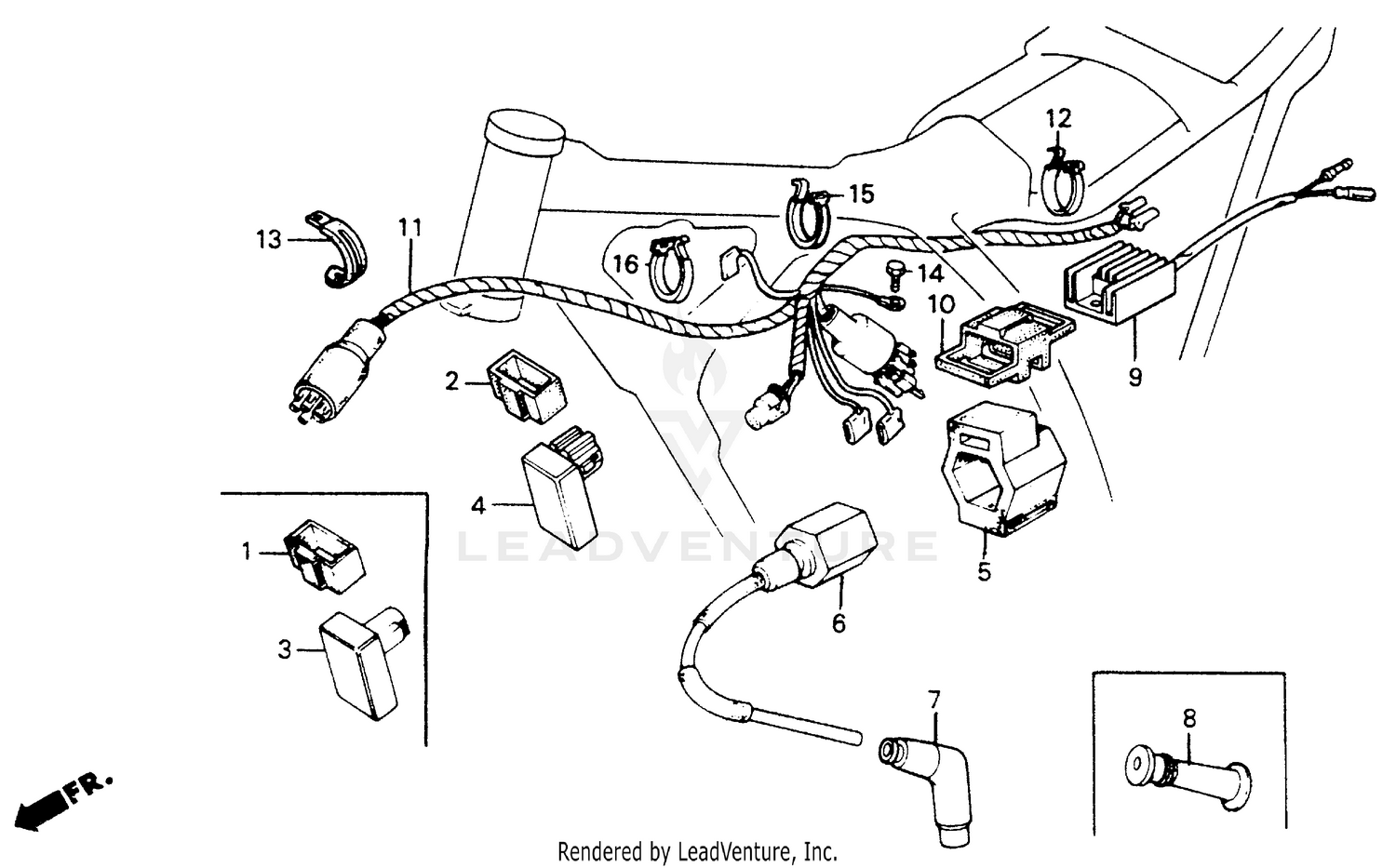

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-KK0-770
Superseded by 30401-KT1-670
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
MODULE, IGNITION CONTROL (CDI)
30410-KK0-771
Superseded by 30410-KK0-773
|
$142.82 | ||
|
Unavailable |
|||
|
#3
MODULE, IGNITION CONTROL (CDI)
30410-KK0-772
Superseded by 30410-KK0-773
|
$142.82 | ||
|
Unavailable |
|||
|
#5
SUSPENSION, IGNITION COIL
30506-KK4-000
Superseded by 30506-VM6-000
|
$10.17 | ||
|
Unavailable |
|||
|
#6
COIL, IGNITION
30510-KK0-000
Superseded by 30510-MK4-405
|
$97.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL, IGNITION
30510-MK4-405
|
$97.38 | ||
|
Unavailable |
|||
|
#8
CAP ASSY,NOISE SU
30700-KF0-153
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#8
CAP ASSY,NOISE SU
30700-KF0-163
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#8
CAP ASSY,NOISE SU
30700-MK4-611
Superseded by 30700-MK4-613
|
$22.95 | ||
|
Unavailable |
|||
|
#11
WIRE HARNESS (NOT AVAILABLE)
32100-KK0-770
|
$57.55 | ||
|
Unavailable |
|||
|
#12
BAND, WIRE (NOT AVAILABLE)
32161-MA0-000
|
$3.47 | ||
|
Unavailable |
|||
|
#15
BAND B1, WIRE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
