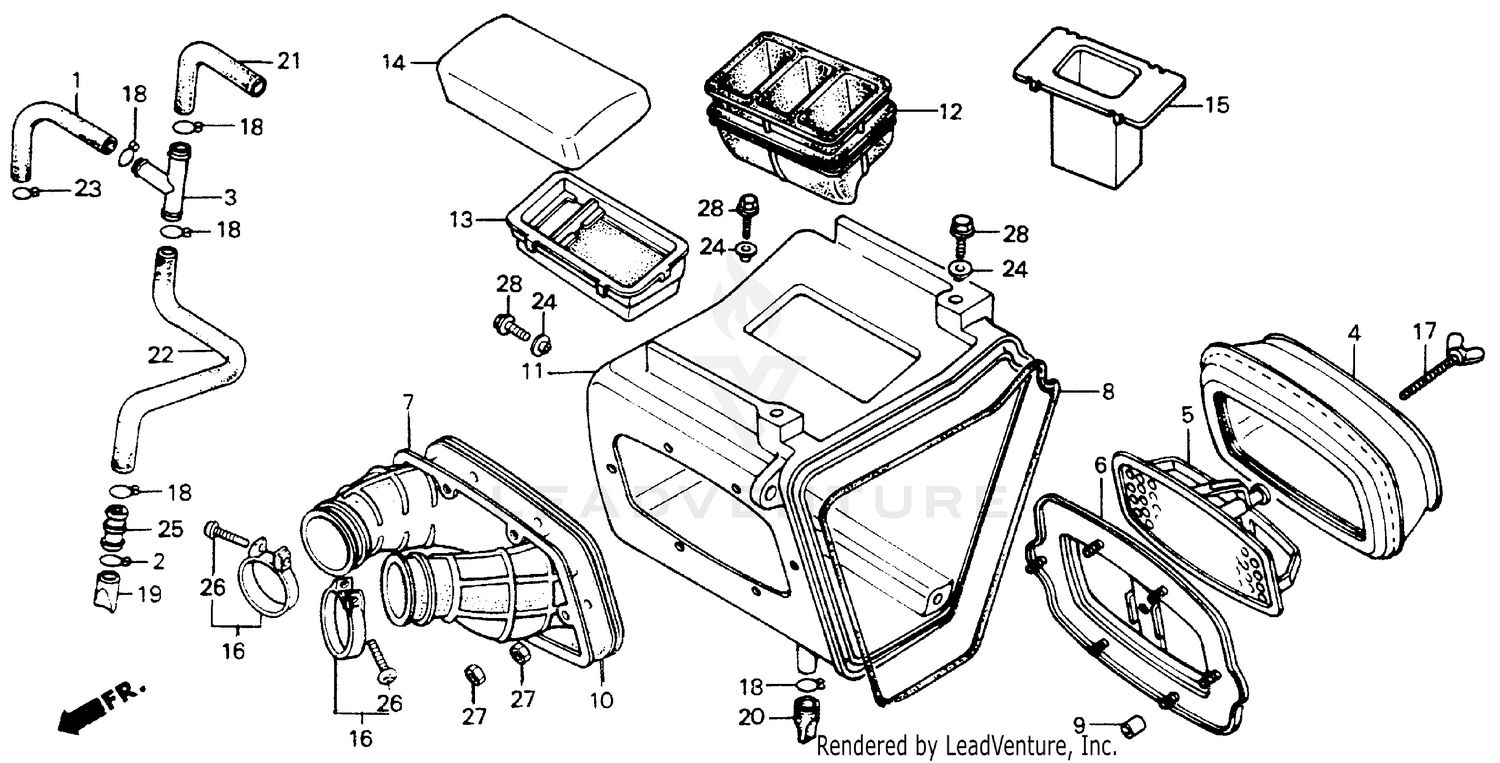

Air Cleaner 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, BREATHER (NOT AVAILABLE)
15761-KK0-770
|
$7.45 | ||
|
Unavailable |
|||
|
#2
CLIP, BREATHER TUBE
15772-292-010
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, BREATHER THREE WAY
15772-KK0-000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, AIR CLEANER
17213-KK0-000
|
$30.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, ELEMENT (NOT AVAILABLE)
17214-KK0-010
|
$64.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, ELEMENT SETTING
17216-KK0-000
|
$44.43 | ||
|
Unavailable |
|||
|
#7
PLATE, HOLDER
17217-KK0-000
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, AIR CLEANER COVER
17219-KK0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#9
COLLAR, CONNECTING TUBE SETTING
17221-KA4-300
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)
17222-KK0-770
|
$45.69 | ||
|
Unavailable |
|||
|
#11
HOUSING, AIR CLEANER
17230-KK0-000
|
$149.51 | ||
|
Unavailable |
|||
|
#12
DUCT, AIR CLEANER IN.
17240-KK0-000
|
$33.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
NOZZLE, IN. DUCT (NOT AVAILABLE)
17243-KK1-770
|
$34.67 | ||
|
Unavailable |
|||
|
#16
BAND, INSULATOR
16223-KS5-000
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, INSULATOR
17255-329-000
Superseded by 16223-KS5-000
|
$17.20 | ||
|
Unavailable |
|||
|
#17
BOLT, AIR CLEANER ELEMENT SETTING (NOT AVAILABLE)
17291-KA4-700
|
$10.71 | ||
|
Unavailable |
|||
|
#18
CLIP, BREATHER TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, DRAIN
17358-170-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, DRAIN
17359-KK0-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE A, BREATHER
17373-KK0-000
|
$13.96 | ||
|
Unavailable |
|||
|
#22
TUBE B, BREATHER (NOT AVAILABLE)
17374-KK0-000
|
$17.87 | ||
|
Unavailable |
|||
|
#23
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, TUBE
91463-393-780
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X32)
93500-05032-0G
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEX. (5MM)
94002-05000-0S
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Unavailable |
|||
