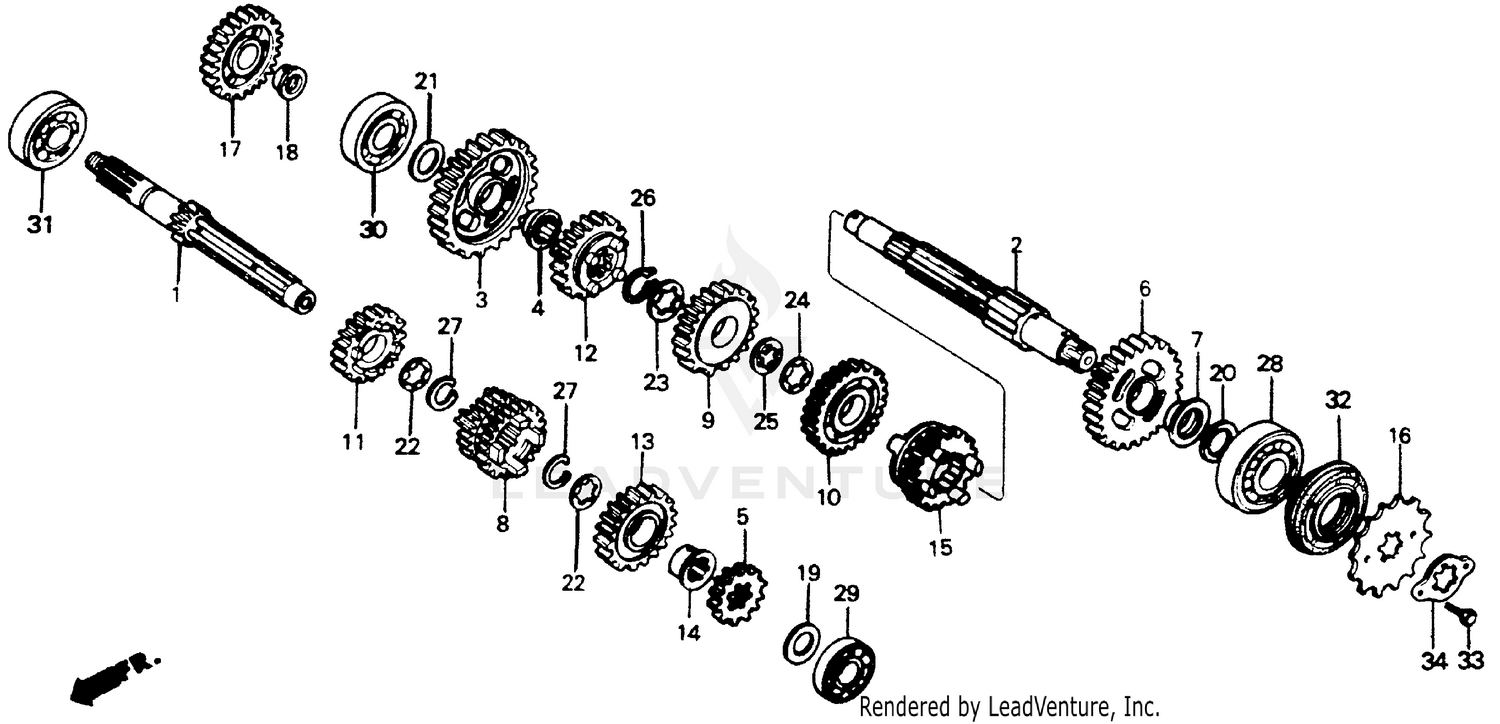

Transmission 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)
23210-KK0-000
|
$161.68 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-KK0-770
Superseded by 23220-KS5-000
|
$111.81 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23411-KK1-000
|
$156.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH (18MM)
23412-KK0-000
|
$26.59 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23421-KK0-770
|
$50.89 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (33T)
23431-KK1-000
|
$132.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (22MM)
23432-KK0-000
|
$27.51 | ||
|
Unavailable |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T & 20T) (SOURCE: VINTAGE PARTS INC.)
23441-KK0-000
Superseded by 23441-KK1-000
|
$201.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (23T & 20T)
23441-KK1-000
|
$201.92 | ||
|
Unavailable |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)
23451-KK0-000
Superseded by 23451-KK1-000
|
$114.91 | ||
|
Unavailable |
|||
|
#10
GEAR (26T)
23471-KK0-000
Superseded by 23471-KK0-010
|
$83.29 | ||
|
Unavailable |
|||
|
#11
GEAR, MAINSHAFT FIFTH (26T) (NOT AVAILABLE)
23481-KK0-000
|
$104.36 | ||
|
Unavailable |
|||
|
#12
GEAR, COUNTERSHAFT FIFTH (24T) (NOT AVAILABLE)
23491-KK0-000
|
$158.95 | ||
|
Unavailable |
|||
|
#13
GEAR, MAINSHAFT SIXTH (27T) (NOT AVAILABLE)
23501-KK0-770
|
$99.83 | ||
|
Unavailable |
|||
|
#14
COLLAR, SPLINE (23MM)
23505-KL4-000
|
$20.52 | ||
|
Unavailable |
|||
|
#15
GEAR, COUNTERSHAFT SIXTH (22T) (NOT AVAILABLE)
23511-KK0-770
Superseded by 23511-KK0-771
|
$127.25 | ||
|
Unavailable |
|||
|
#16
SPROCKET, DRIVE (13T) (NOT AVAILABLE)
23801-KK1-000
|
$26.69 | ||
|
Unavailable |
|||
|
#17
GEAR, KICK STARTER IDLE (27T)
28211-KK0-000
Superseded by 28200-KL4-308
|
$110.64 | ||
|
Unavailable |
|||
|
#17
GEAR, KICK STARTER IDLE (27T)
28221-KK0-000
Superseded by 28200-KL4-308
|
$110.64 | ||
|
Unavailable |
|||
|
#18
BUSH (15MM)
28222-KK0-000
|
$41.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (15MM)
90451-107-000
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, THRUST (22MM)
90452-357-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (17MM)
90454-KF0-000
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER A, SPLINE (20MM)
90455-107-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (22MM) (NOT AVAILABLE)
90463-329-000
|
$2.02 | ||
|
Unavailable |
|||
|
#24
WASHER, COUNTERSHAFT THIRD SPLINE
90464-360-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK (NOT AVAILABLE)
90465-KK0-000
|
$3.76 | ||
|
Unavailable |
|||
|
#26
CIRCLIP (OUTER) (22MM)
90601-437-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, BALL (62/22) (KOYO)
91004-KK0-003
Superseded by 91004-KW3-004
|
$38.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, BALL (62/22) (KOYO)
91004-KW3-004
|
$38.07 | ||
|
Unavailable |
|||
|
#29
BEARING, BALL (6202) (NTN)
91005-KK0-003
|
$44.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (17X42X12) (NTN)
91007-KK0-000
|
$33.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL (6204) (NTN)
91006-KK0-003
|
$30.52 | ||
|
Unavailable |
|||
|
#32
OIL SEAL (20X36X8) (NOK)
91201-KK1-641
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#34
PLATE B, FIXING
95014-92100
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
