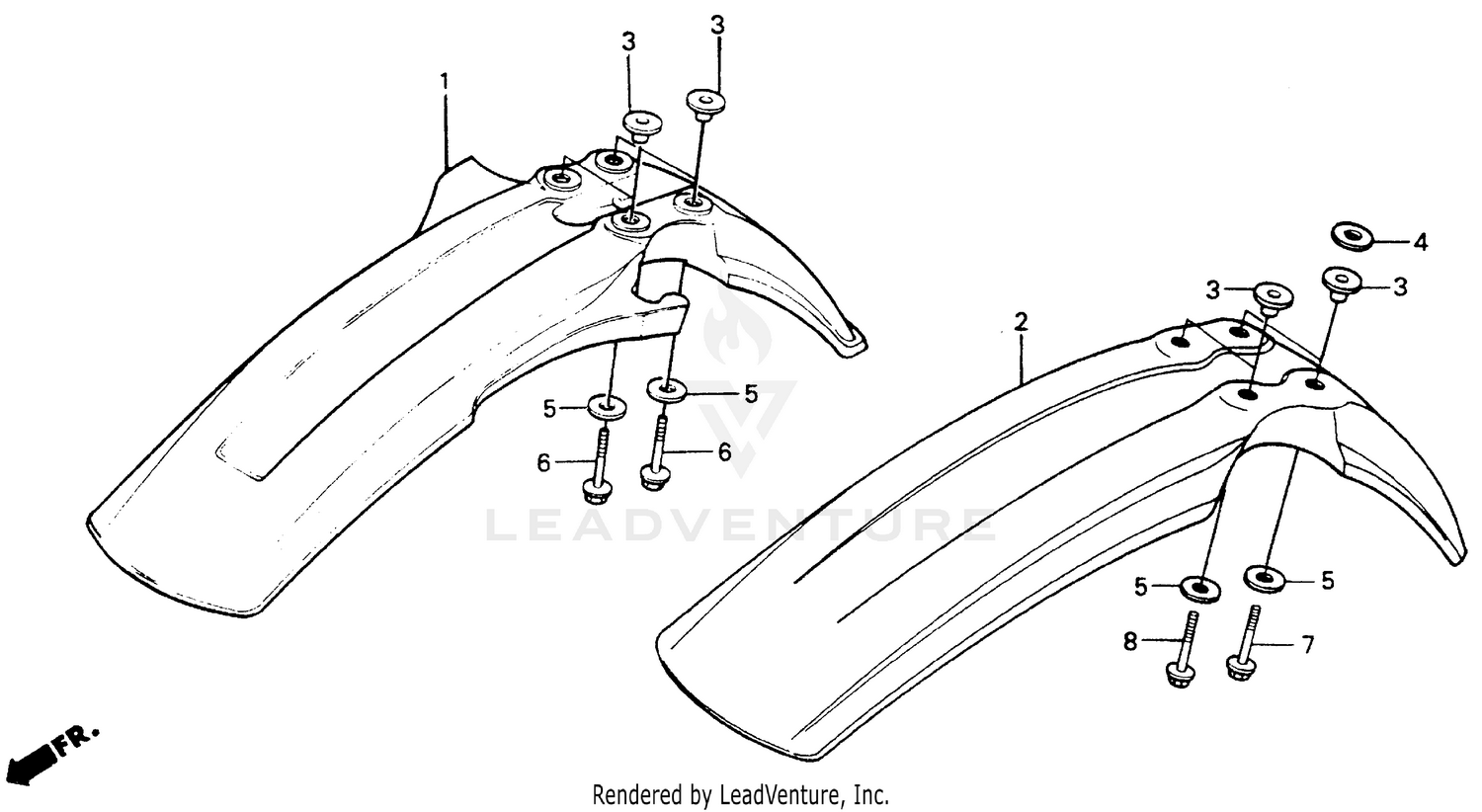

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FR. *R119* (FLASH RED) (NOT AVAILABLE)
61100-KK0-000ZA
Superseded by 61100-KL4-000ZE
|
$80.58 | ||
|
Unavailable |
|||
|
#3
COLLAR, FENDER MOUNTING
61104-KA4-700
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, FENDER MOUNTING
90506-430-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X20)
96000-060-2000
Superseded by 96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
