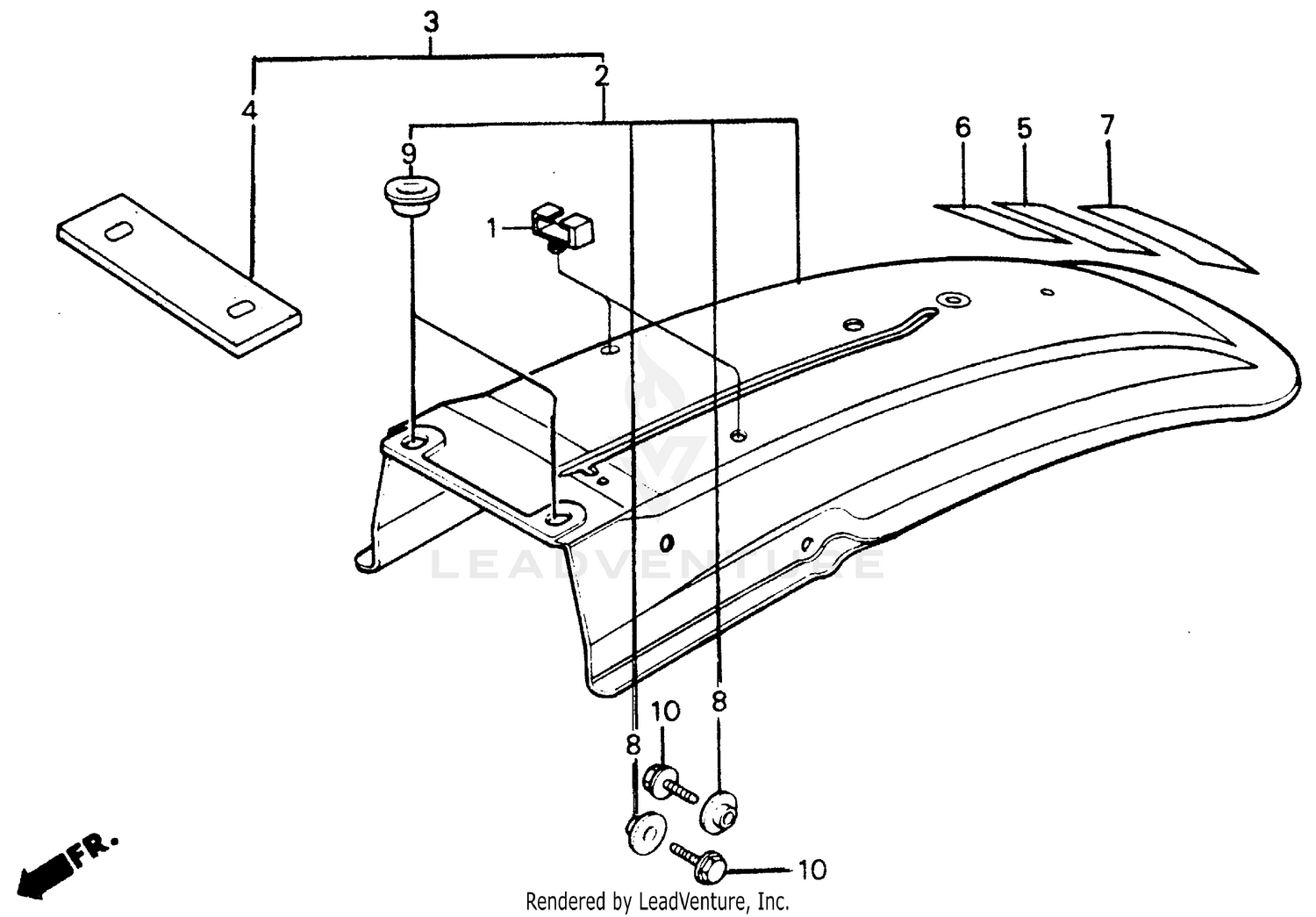

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, WIRE
32985-300-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, RR. *R119* (FLASH RED) (NOT AVAILABLE)
80100-KK0-000ZA
Superseded by 80100-KT0-670ZB
|
$60.02 | ||
|
Unavailable |
|||
|
#5
LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)
87504-130-720ZB
Superseded by 87504-130-720ZA
|
$3.71 | ||
|
Unavailable |
|||
|
#6
LABEL, OPERATOR WARNING *NH0* (CHAMPIONSHIP WHITE)
87510-147-670ZB
|
$2.13 | ||
|
Unavailable |
|||
|
#7
MARK, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)
87560-181-760ZB
|
$4.31 | ||
|
Unavailable |
|||
|
#8
WASHER (6X20)
90512-300-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6X9)
90513-323-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
