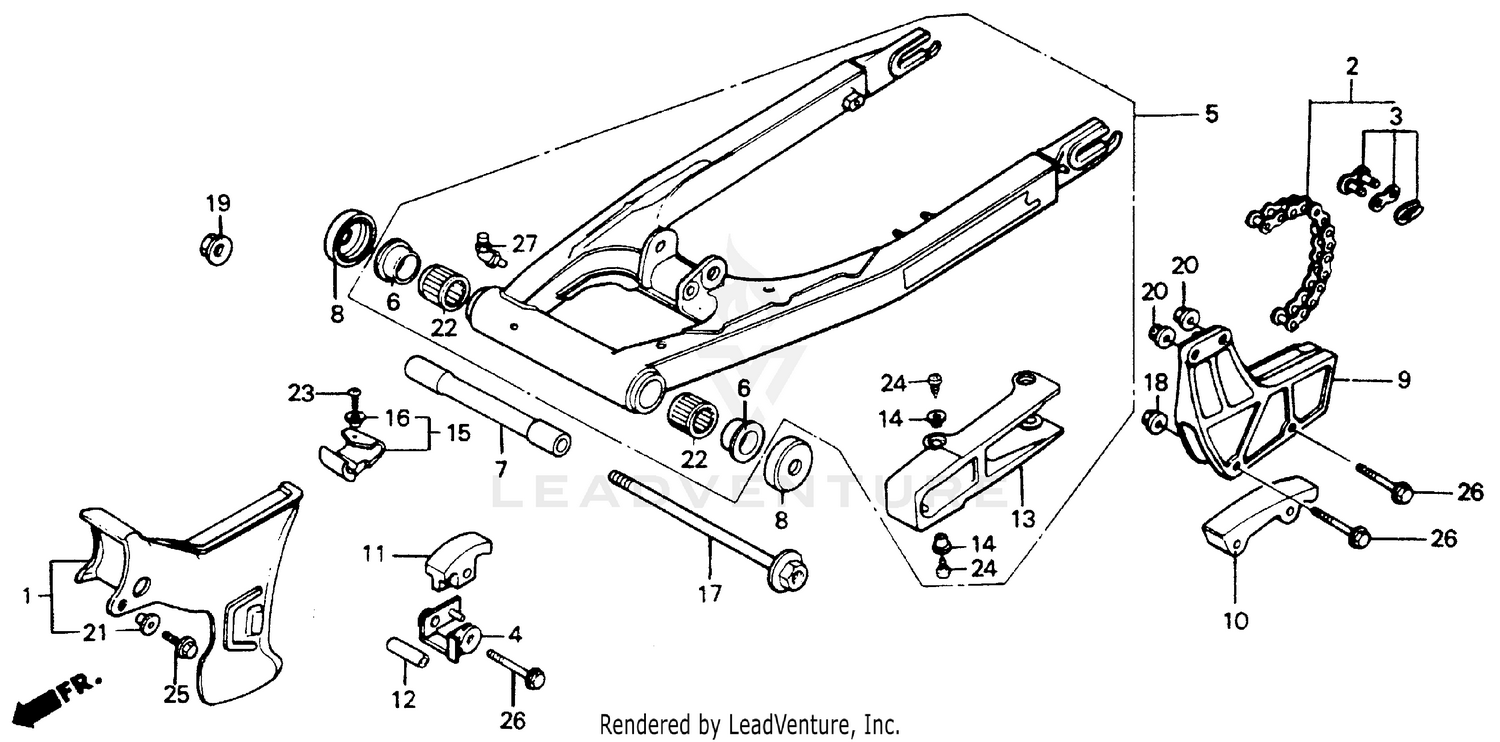

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-KK0-000
|
$63.81 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (520K0-108FJ)
40530-KK0-003
Superseded by 405W3-MN1-505
|
$173.18 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (520K0-108FJ)
40530-KK0-005
Superseded by 405W3-MN1-505
|
$173.18 | ||
|
Unavailable |
|||
|
#3
MASTER LINK (DAIDO)
40531-HB5-671
|
$5.60 | ||
|
Unavailable |
|||
|
#3
MASTER LINK (DAIDO)
40531-KF0-771
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK (TAKASAGO)
40531-KF0-005
|
$6.44 | ||
|
Unavailable |
|||
|
#4
STAY, TENSIONER
50143-MA0-770
|
$16.76 | ||
|
Unavailable |
|||
|
#5
SWINGARM ASSY., RR.
52100-KK0-770
Superseded by 52100-KK0-780
|
$368.55 | ||
|
Unavailable |
|||
|
#6
BUSH, PIVOT THRUST
52109-430-300
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. SWINGARM CENTER
52141-KK0-000
|
$68.62 | ||
|
Unavailable |
|||
|
#8
CAP, DUST SEAL (NOK)
52144-268-000
Superseded by 52144-356-005
|
$20.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CAP, DUST SEAL (NOK)
52144-286-000
Superseded by 52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#8
CAP, DUST SEAL (NOK)
52144-329-000
Superseded by 52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#8
CAP, DUST SEAL (NOK)
52144-356-003
Superseded by 52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#8
CAP, SWINGARM DUST SEAL (NOK)
52144-356-005
|
$20.98 | ||
|
Unavailable |
|||
|
#9
GUIDE, CHAIN
52146-MG3-010
Superseded by 52146-KT0-770
|
$31.87 | ||
|
Unavailable |
|||
|
#9
GUIDE, CHAIN
52146-KT0-770
|
$31.87 | ||
|
Unavailable |
|||
|
#10
SLIDER, CHAIN GUIDE
52147-KF0-000
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLIDER, CHAIN
52155-KK0-771
|
$47.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CHAIN ROLLER
52159-169-000
|
$3.92 | ||
|
Unavailable |
|||
|
#13
SLIDER, CHAIN
52170-KK0-771
|
$136.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, CHAIN SLIDER
52171-MC4-000
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SWINGARM PIVOT
90121-KK0-000
|
$75.57 | ||
|
Unavailable |
|||
|
#18
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#21
WASHER (6X20)
90512-300-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, SWINGARM PIVOT (NTN)
91071-MA0-003
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RR. SWINGARM PIVOT (TOYO)
91071-MA0-004
Superseded by 91071-MA0-003
|
$40.11 | ||
|
Unavailable |
|||
|
#24
SCREW, TAPPING (6X12)
93901-26110
|
$1.20 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X45)
96000-06045-00
Superseded by 96001-06045-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.24 | ||
|
Unavailable |
|||
|
#27
NIPPLE, GREASE (B.T6S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
