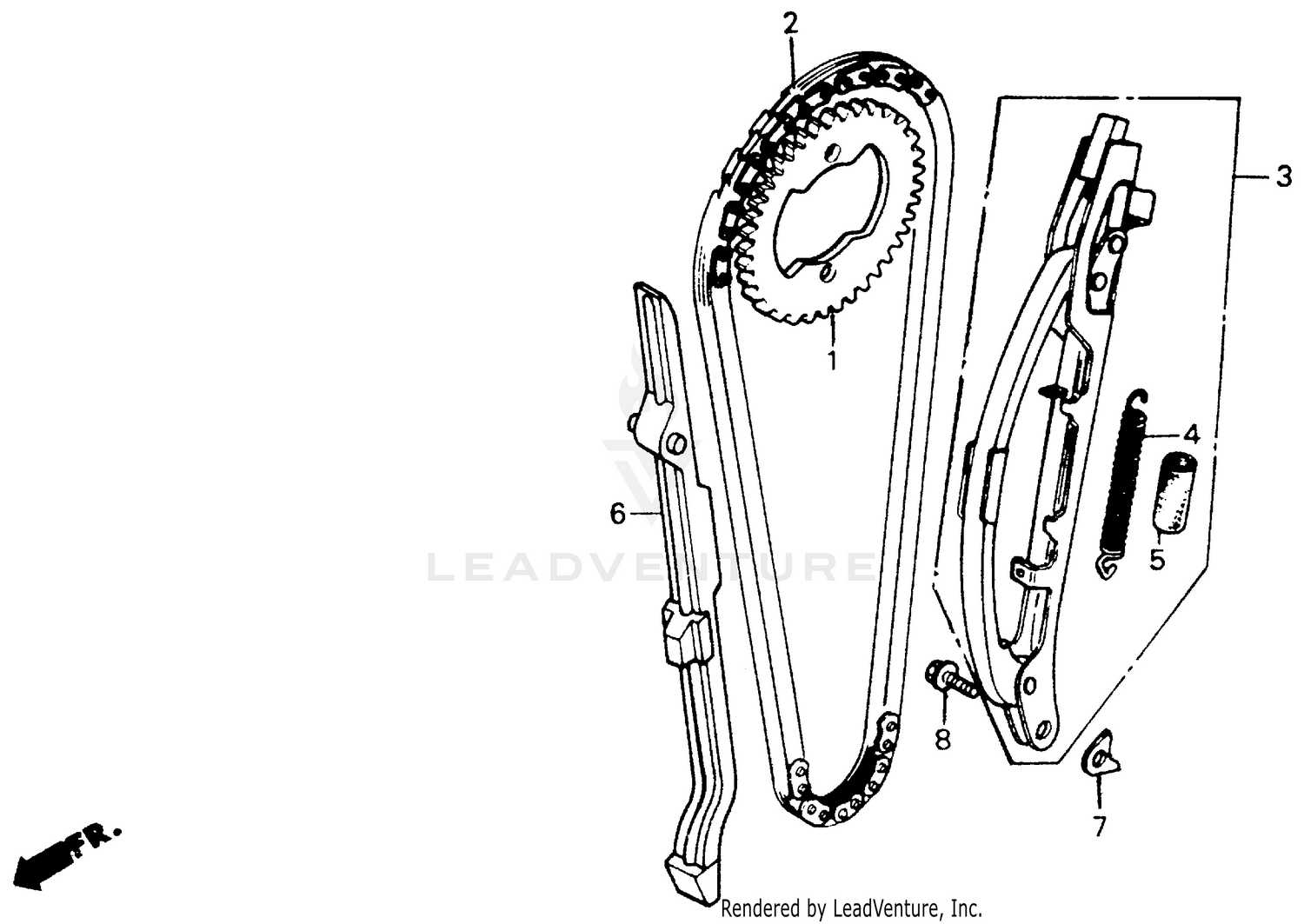

Cam Chain 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (38T) (NOT AVAILABLE)
14321-KK0-000
Superseded by 14321-KR0-000
|
$43.32 | ||
|
Unavailable |
|||
|
#1
SPROCKET, CAM (38T)
14321-KR0-000
|
$43.32 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM (TC) (NOT AVAILABLE)
14401-KK0-003
|
$124.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (TC) (NOT AVAILABLE)
14401-KK0-004
Superseded by 14401-KK0-003
|
$124.96 | ||
|
Unavailable |
|||
|
#3
TENSIONER, CAM CHAIN (NOT AVAILABLE)
14500-KK0-000
|
$99.72 | ||
|
Unavailable |
|||
|
#4
SPRING, CAM CHAIN TENSIONER
14516-KB4-670
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, TENSIONER SPRING
14539-KK0-300
|
$9.45 | ||
|
Unavailable |
|||
|
#6
GUIDE, CAM CHAIN
14620-KK0-000
|
$36.13 | ||
|
Unavailable |
|||
|
#7
PLATE, BEARING SETTING
23521-KK0-000
|
$12.15 | ||
|
Unavailable |
|||
|
#8
BOLT, TENSIONER SETTING
90022-KK0-000
|
$5.35 | ||
|
Unavailable |
|||
