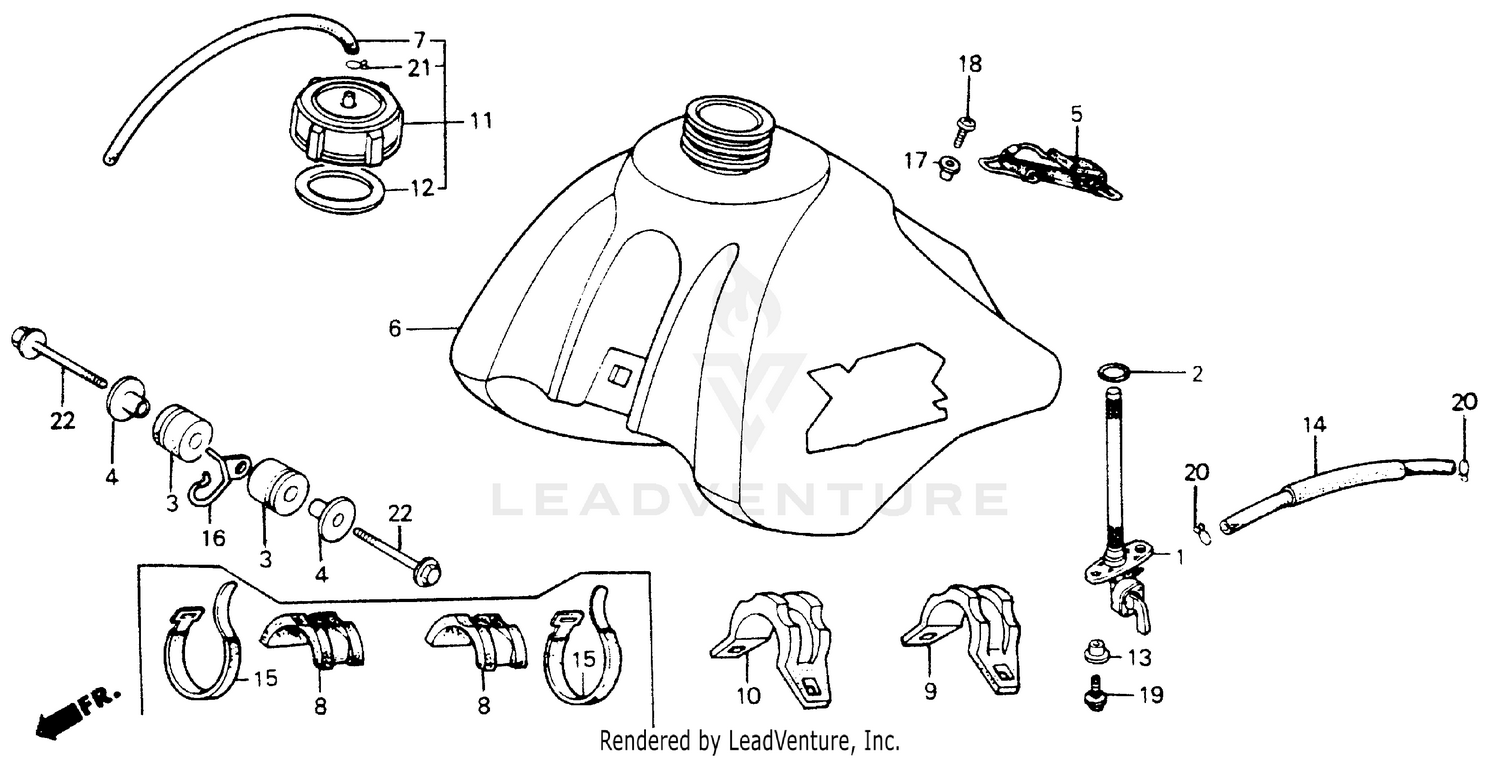

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-MA0-005
Superseded by 16950-KT0-831
|
$116.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
PETCOCK ASSY.
16950-MA0-015
Superseded by 16950-KT0-831
|
$116.67 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-KT0-831
|
$116.67 | ||
|
Unavailable |
|||
|
#2
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RUBBER, FUEL TANK MOUNTING
17508-KA3-710
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FUEL TANK SETTING
17509-KA3-710
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND, RR. TANK
17516-GF5-000
|
$45.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
TK SUB, FUEL *R119*
17520-KK0-770ZA
Superseded by 17520-KK0-771ZA
|
$313.60 | ||
|
Unavailable |
|||
|
#7
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RUBBER, FR. TANK (NOT AVAILABLE)
17611-KA2-000
|
$10.01 | ||
|
Unavailable |
|||
|
#11
CAP, FUEL TANK
17620-MA0-000
Superseded by 17620-MA0-405
|
$33.97 | ||
|
Unavailable |
|||
|
#12
GASKET, FUEL TANK CAP (NOT AVAILABLE)
17624-467-020
|
$4.07 | ||
|
Unavailable |
|||
|
#13
COLLAR, FUEL TANK SETTING
17626-467-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, FUEL
17681-KB4-670
Superseded by 17681-KC2-000
|
$5.41 | ||
|
Unavailable |
|||
|
#15
BAND, WIRE
32161-399-000
|
$3.25 | ||
|
Unavailable |
|||
|
#16
GUIDE, CABLE (NOT AVAILABLE)
50255-KK0-000
|
$6.82 | ||
|
Unavailable |
|||
|
#17
COLLAR, REFLECTOR SETTING
90129-463-770
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN (6X14)
93500-06014-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (6X20)
93891-06020-08
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X40)
96000-06040-00
Superseded by 96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Unavailable |
|||
