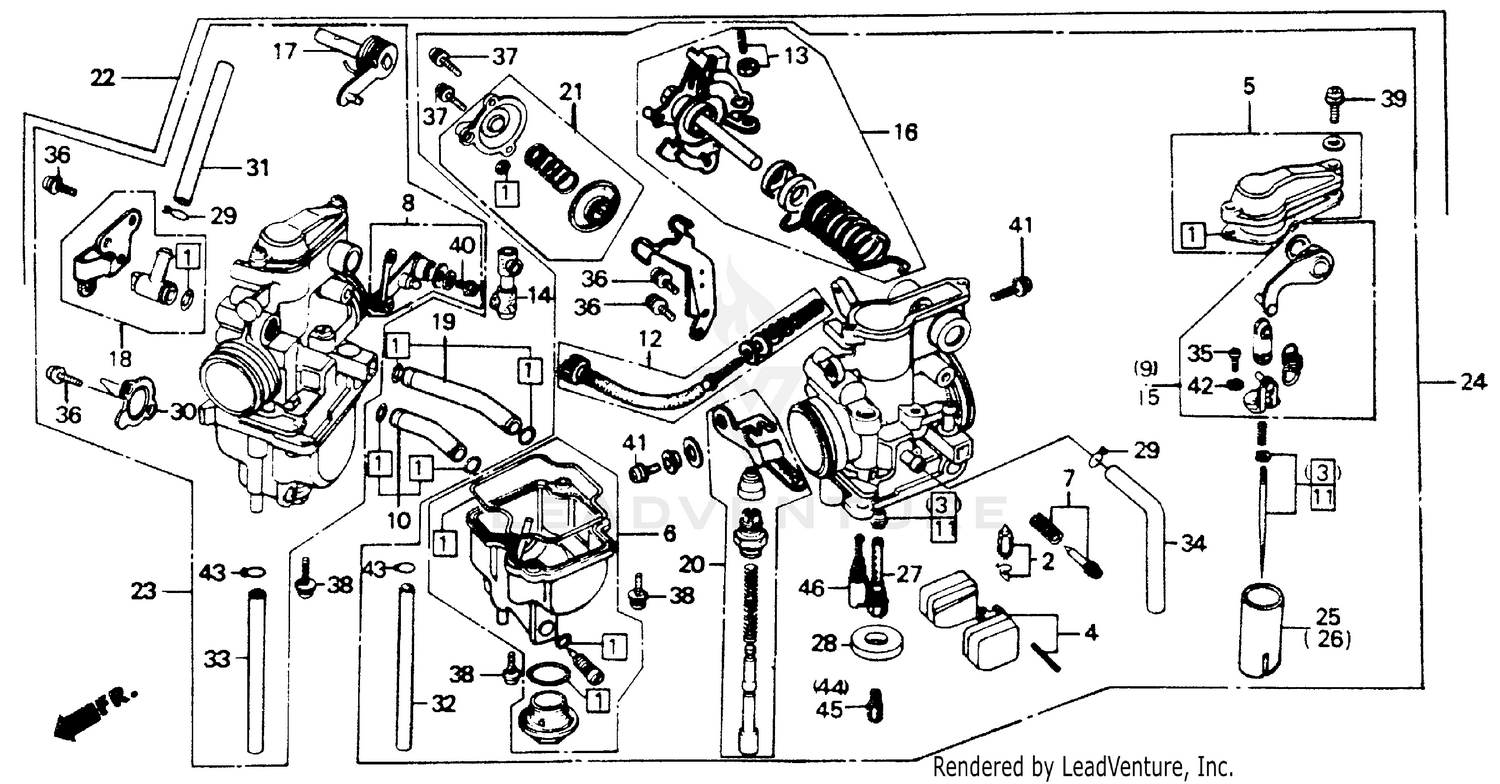

Carburetor 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KF0-004
Superseded by 16010-KF0-305
|
$45.64 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-KF0-305
|
$45.64 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, PRIMARY JET (NOT AVAILABLE)
16012-KK0-771
|
$46.11 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-GC4-701
Superseded by 16013-KG0-891
|
$38.46 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KG0-891
|
$38.46 | ||
|
Unavailable |
|||
|
#5
TOP SET (NOT AVAILABLE)
16014-KF0-004
|
$29.72 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-KK1-004
|
$146.45 | ||
|
Unavailable |
|||
|
#7
SCREW SET (NOT AVAILABLE)
16016-MG3-004
|
$15.86 | ||
|
Unavailable |
|||
|
#8
LEVER SET, LINK (NOT AVAILABLE)
16017-KF0-004
|
$27.20 | ||
|
Unavailable |
|||
|
#10
JOINT SET, FUEL
16026-KF0-004
|
$39.31 | ||
|
Unavailable |
|||
|
#11
NEEDLE SET, SECONDARY JET (NOT AVAILABLE)
16027-KK0-771
|
$47.33 | ||
|
Unavailable |
|||
|
#12
SCREW SET (NOT AVAILABLE)
16028-KF0-004
|
$32.34 | ||
|
Unavailable |
|||
|
#13
SCREW SET
16029-KG0-004
|
$16.40 | ||
|
Unavailable |
|||
|
#14
HOLDER SET, ADJ. (NOT AVAILABLE)
16030-KF0-004
|
$63.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM SET, PRIMARY LINK (NOT AVAILABLE)
16031-KK0-004
|
$100.68 | ||
|
Unavailable |
|||
|
#16
LINK SET, PRIMARY THROTTLE (NOT AVAILABLE)
16032-KK0-771
|
$105.19 | ||
|
Unavailable |
|||
|
#17
LINK SET, SECONDARY THROTTLE
16035-KG0-004
|
$33.66 | ||
|
Unavailable |
|||
|
#18
JOINT SET, FUEL (NOT AVAILABLE)
16037-MG3-004
|
$27.58 | ||
|
Unavailable |
|||
|
#19
JOINT SET, FUEL (NOT AVAILABLE)
16042-KK0-771
|
$17.08 | ||
|
Unavailable |
|||
|
#20
VALVE SET, STARTER (NOT AVAILABLE)
16046-KK0-771
|
$52.35 | ||
|
Unavailable |
|||
|
#21
VALVE SET, AIR CUT
16048-KF0-004
Superseded by 16048-MG2-305
|
$103.17 | ||
|
Unavailable |
|||
|
#22
CARBURETOR ASSY. (NOT AVAILABLE)
16100-KK0-771
|
$766.35 | ||
|
Unavailable |
|||
|
#23
CARBURETOR ASSY., R. (NOT AVAILABLE)
16101-KK0-771
|
$488.23 | ||
|
Unavailable |
|||
|
#24
CARBURETOR ASSY., L. (NOT AVAILABLE)
16102-KK0-771
|
$488.23 | ||
|
Unavailable |
|||
|
#25
VALVE, PRIMARY THROTTLE (NOT AVAILABLE)
16111-KK0-004
|
$79.21 | ||
|
Unavailable |
|||
|
#26
VALVE, SECONDARY THROTTLE (NOT AVAILABLE)
16112-KK0-771
|
$78.58 | ||
|
Unavailable |
|||
|
#27
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-KK1-004
|
$34.54 | ||
|
Unavailable |
|||
|
#28
HOLDER, JET (NOT AVAILABLE)
16168-KF0-004
|
$10.62 | ||
|
Unavailable |
|||
|
#29
CLIP, TUBE
16179-KE5-004
|
$2.59 | ||
|
Unavailable |
|||
|
#29
CLIP, TUBE
16179-KE5-003
Superseded by 16179-KE5-004
|
$2.59 | ||
|
Unavailable |
|||
|
#30
COVER, AIR CUT VALVE (NOT AVAILABLE)
16193-KB4-671
|
$5.35 | ||
|
Unavailable |
|||
|
#31
PIPE, L. AIR VENT
16195-KF0-004
Superseded by 16195-KE8-405
|
$4.62 | ||
|
Unavailable |
|||
|
#32
PIPE, OVERFLOW
16198-KF0-014
Superseded by 16198-ML4-405
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE, OVERFLOW (400MM)
16198-ML4-405
|
$6.71 | ||
|
Unavailable |
|||
|
#33
TUBE, OVERFLOW (440MM)
16198-ML4-405
|
$6.71 | ||
|
Unavailable |
|||
|
#33
PIPE, OVERFLOW
16199-KF0-004
Superseded by 16198-ML4-405
|
$6.71 | ||
|
Unavailable |
|||
|
#34
TUBE, AIR VENT
16199-KF0-771
Superseded by 16199-MG3-405
|
$5.98 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN (3X8)
93500-03008-0H
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW-WASHER (4X10)
93892-04010-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW-WASHER (4X10)
93892-04010-18
Superseded by 93892-04010-08
|
$1.20 | ||
|
Unavailable |
|||
|
#37
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#37
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#38
SCREW-WASHER (4X14)
93892-04014-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (4X14)
93892-04014-18
Superseded by 93892-04014-08
|
$1.15 | ||
|
Unavailable |
|||
|
#39
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#40
SCREW-WASHER (4X20)
93892-04020-18
Superseded by 93892-04020-08
|
$0.68 | ||
|
Unavailable |
|||
|
#41
SCREW-WASHER (5X14)
93892-05014-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW-WASHER (5X14)
93892-05014-18
Superseded by 93892-05014-08
|
$1.15 | ||
|
Unavailable |
|||
|
#42
WASHER, SPRING (3MM)
94111-03800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
JET, MAIN (#90) (NOT AVAILABLE)
99101-357-0900
|
$12.35 | ||
|
Unavailable |
|||
|
#45
JET, MAIN (#98)
99101-357-0980
Superseded by 99113-GHB-0980
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, SLOW (#42)
99103-MG3-0420
|
$16.39 | ||
|
Unavailable |
|||
