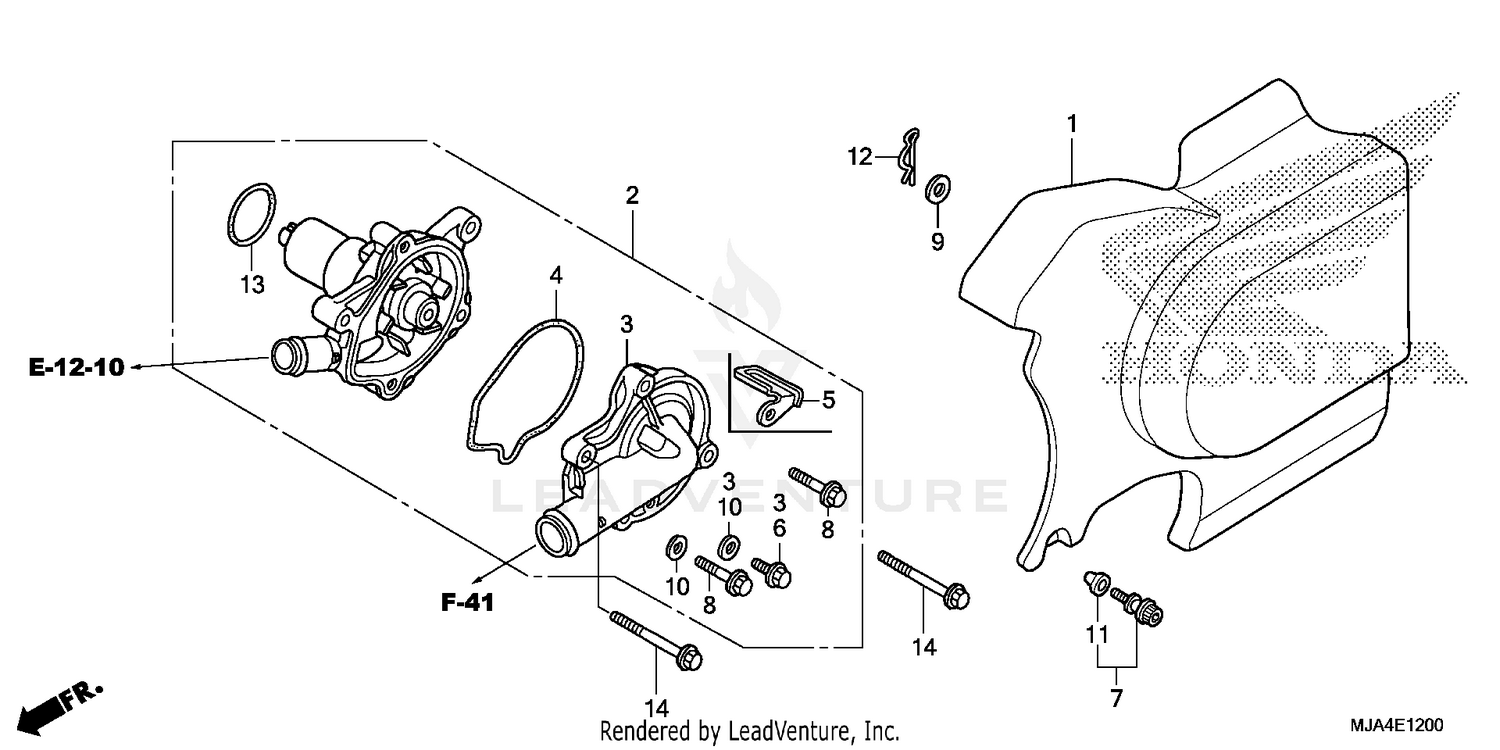

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
WATER PUMP ASSY.
19200-MGR-670
|
$283.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER ASSY., WATER PUMP
19220-MBA-600
|
$117.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, WATER PUMP COVER
19226-MM9-000
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, OIL PRESSURE WIRE
32972-MS8-000
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X12) (CT200)
90013-883-000
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X25)
90121-MV9-670
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
