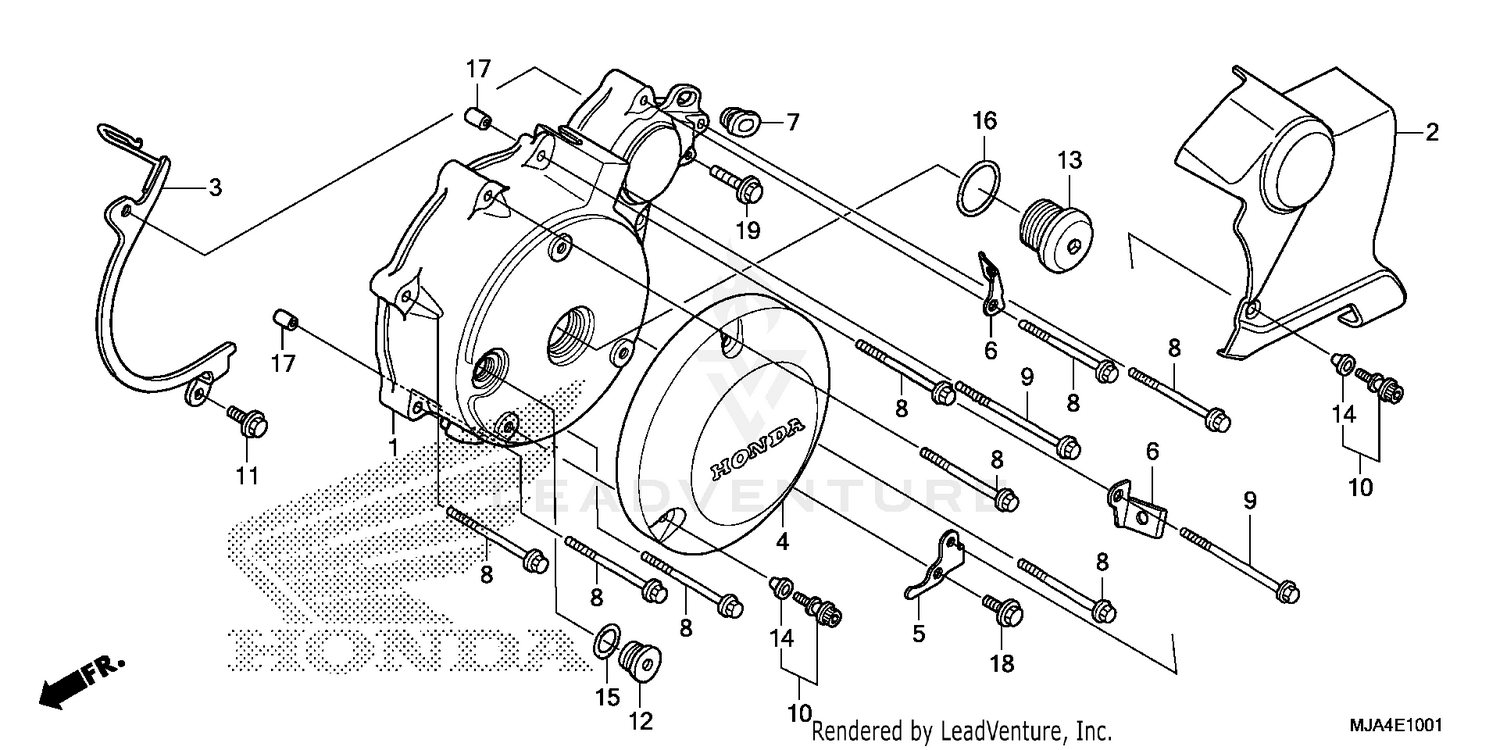

Left Crankcase Cover (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-MGR-670
|
$205.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. RR.
11350-MGR-670
|
$53.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, DRIVE CHAIN GUIDE
11355-MBA-000
|
$19.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, ALTERNATOR
11360-MEG-000
|
$101.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, L. RR. COVER
11380-MGR-670
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, HARNESS CLIP
32158-MGR-670
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET, SIDE COVER
83551-MA6-000
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X45) (NSHF)
90006-GHB-720
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT ASSY., SPECIAL (6X22) (FRAME NO.)
90020-MBA-D20
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X16) (CT200)
90029-888-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP (14MM)
90084-MN8-010
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP (30MM)
90087-KT7-000
|
$23.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, MOUNTING (FRAME NO.)
90543-MBA-000
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING (29.7X2.4) (NOK)
91356-425-003
Superseded by 91356-425-005
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING (29.7X2.4) (NOK)
91356-425-005
|
$3.51 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
