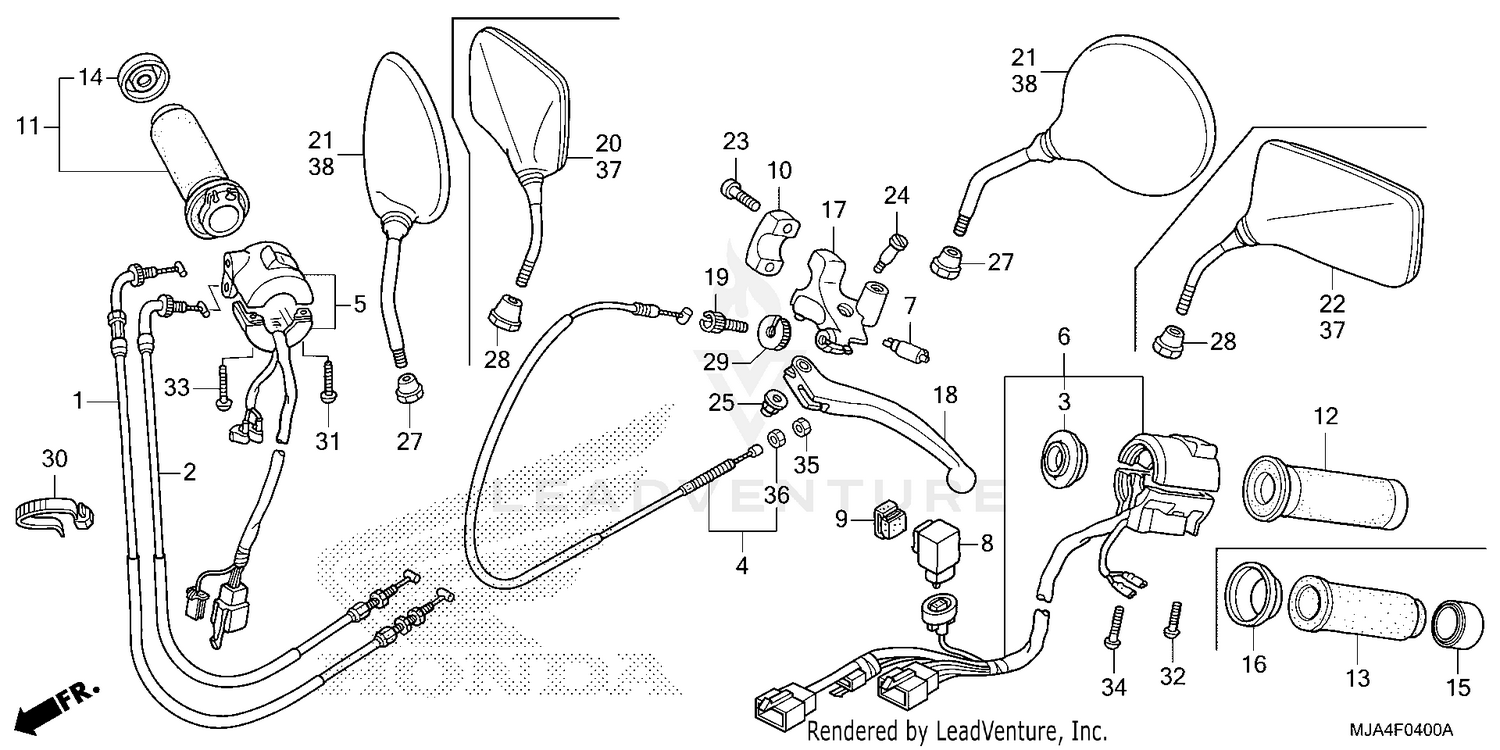

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-MGR-671
|
$36.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MGR-671
|
$36.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADAPTER
17962-MR1-000
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, CLUTCH
22870-MGR-671
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., STARTER & ENGINE STOP
35130-MGR-671
|
$142.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., TURN SIGNAL
35200-MGR-671
|
$161.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH, FR. LEVER (TOYO DENSO)
35330-413-003
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER (NISSIN)
45517-MEG-006
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, R. HANDLE
53145-MCL-000
|
$56.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, R. HANDLE
53145-MCL-305
Superseded by 53145-MCL-000
|
$56.49 | ||
|
Unavailable |
|||
|
#13
GRIP, L. HANDLE
53166-MCL-300
|
$30.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
GRIP, L. HANDLE
53166-MCL-305
Superseded by 53166-MCL-300
|
$30.38 | ||
|
Unavailable |
|||
|
#14
CAP, R. GRIP END
53167-MCL-000
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, L. GRIP END
53168-MCL-300
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, GRIP
53170-MCL-300
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, HANDLE LEVER
53172-MEG-000
|
$38.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, L. HANDLE
53178-MAH-000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, L. HANDLE
53178-MFR-305
Superseded by 53178-MAH-000
|
$23.64 | ||
|
Unavailable |
|||
|
#19
BOLT, CABLE ADJUSTING
53192-268-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
MIRROR, R.
88210-MEA-670
|
$67.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
MIRROR, R.
88210-MFY-305
Superseded by 88210-MEA-670
|
$67.60 | ||
|
Unavailable |
|||
|
#22
MIRROR, L.
88220-MEA-670
|
$65.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
MIRROR, L.
88220-MFY-305
Superseded by 88220-MEA-670
|
$65.68 | ||
|
Unavailable |
|||
|
#23
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, LOCK
90314-375-000
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FIXING
90321-MA6-750
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, PAN (5X22)
93500-05022-0A
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN (5X25) SCREW, PAN (5X32)
93500-05025-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN (5X32)
93500-05032-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEX. (8MM)
94002-08070-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, HEX. (8MM)
94030-08070
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
MIRROR SET
88100-MEA-305
|
$84.11 | ||
|
Available to order. Add to View Price |
|||
