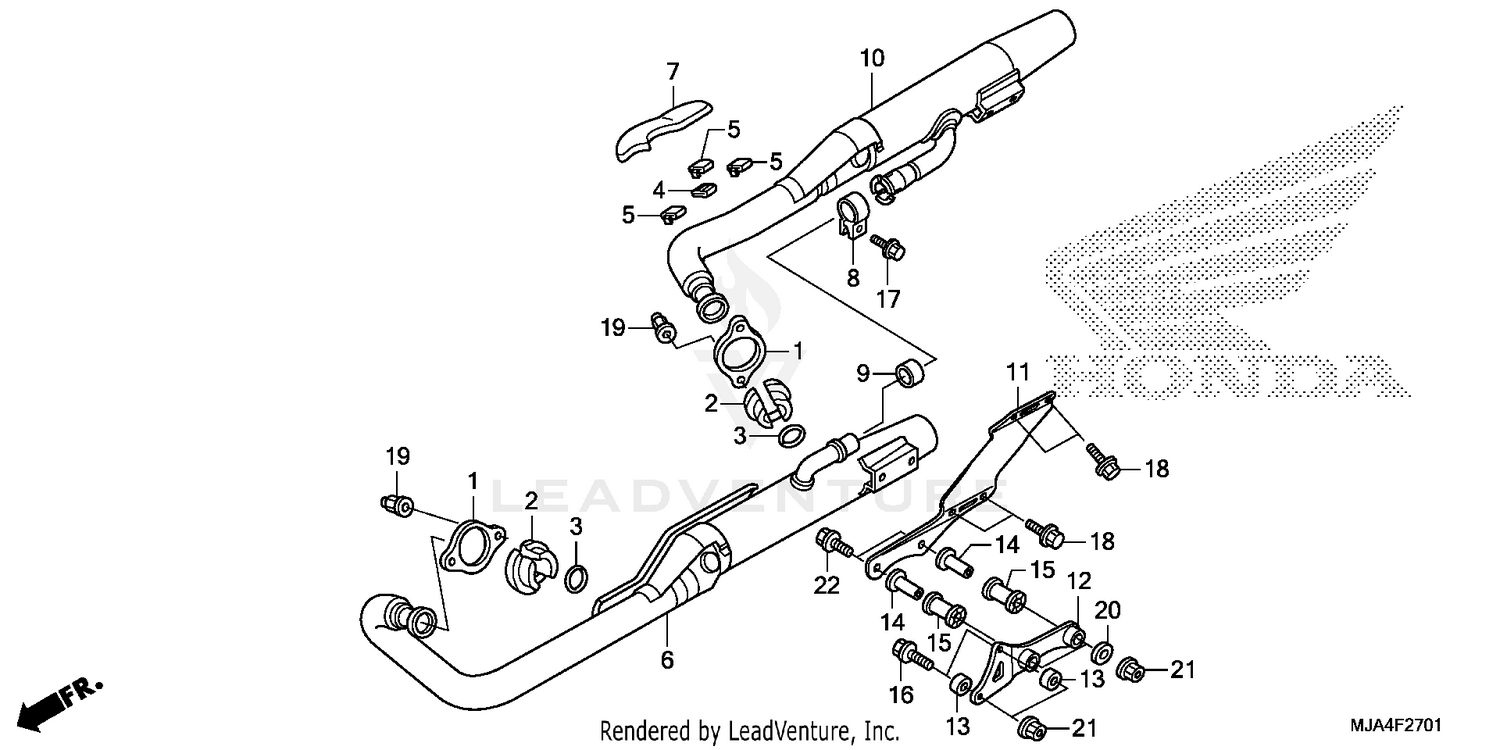

Muffler (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EX. PIPE
18231-MBA-003
|
$32.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, EX. PIPE JOINT
18233-MR1-010
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MM5-860
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RUBBER, PROTECTOR GASKET
18293-MFE-B00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, PROTECTOR
18293-MN0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER, FR. EX.
18300-MGR-305
Superseded by 18300-MGR-672
|
$1,853.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER, FR. EX.
18300-MGR-672
|
$1,853.13 | ||
|
Unavailable |
|||
|
#7
PROTECTOR, RR. EX.
18315-MGR-671
|
$150.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, R. EX. PIPE
18373-ML4-003
|
$36.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
18391-ML8-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER, RR. EX. (COO)
18400-MGR-305
|
$1,853.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, MUFFLER
18415-MGR-670
|
$76.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, MUFFLER
18455-MGR-670
|
$115.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, MUFFLER BRACKET
18456-MGR-670
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, MOUNTING RUBBER
50607-KK6-000
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, MUFFLER MOUNTING
50608-KK6-000
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X45)
90105-MGR-670
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X32)
90125-MGR-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X16)
90166-S87-A00
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (8MM)
90304-ME1-670
|
$7.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER (8.3MM)
90501-KK6-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X55)
95701-08055-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
