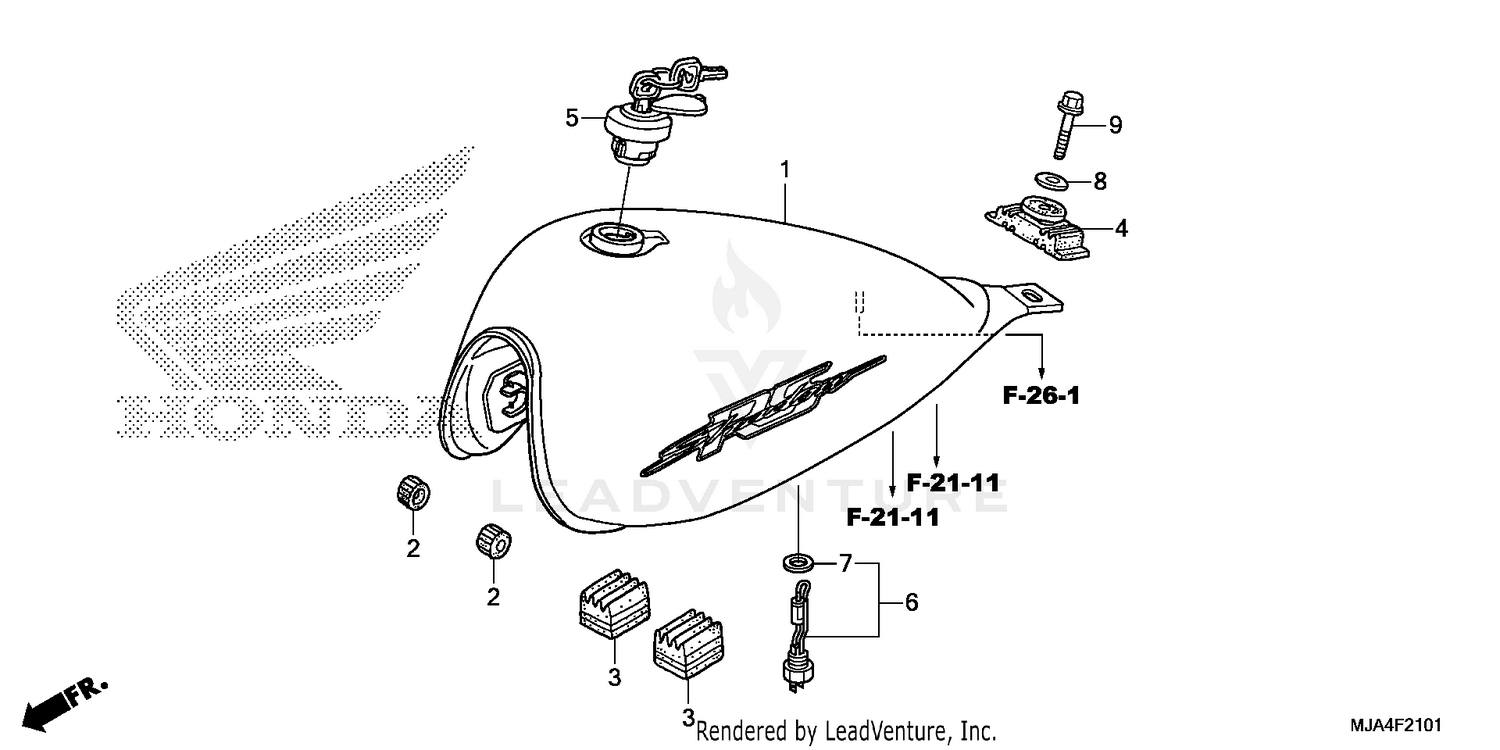

Fuel Tank (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK SET, FUEL (TYPE1)
17500-MJA-A60ZA
|
$1,656.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FR. FUEL TANK
17611-KE8-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION, FUEL TANK
17611-MBA-000
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, RR. FUEL TANK
17613-KY1-000
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, FUEL FILLER
17620-KR3-751
Superseded by 17620-KR3-753
|
$85.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, FUEL FILLER
17620-KR3-752
Superseded by 17620-KR3-753
|
$85.95 | ||
|
Unavailable |
|||
|
#5
CAP, FUEL FILLER
17620-KR3-753
|
$85.95 | ||
|
Unavailable |
|||
|
#6
SENSOR ASSY., FUEL RESERVE
37810-MER-D01
|
$63.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, FUEL RESERVE SENSOR
37811-MB1-008
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, HANDLE CUSHION
90535-KB9-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
