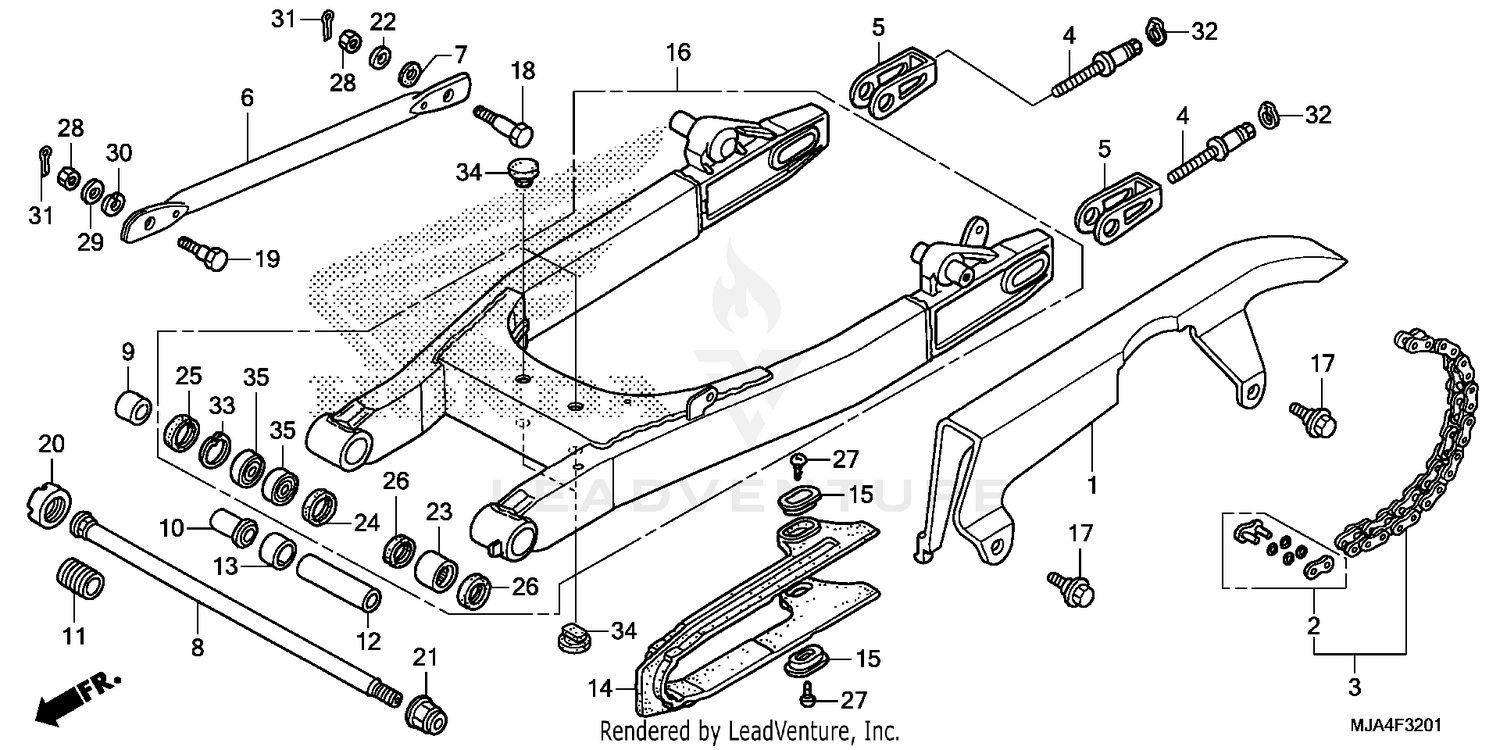

Swingarm (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-MBV-000
|
$78.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK SET (RK EXCEL)
40535-MY5-306
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (DAIDO)
40545-MY5-G31
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (DID525V8-120ZB) (DAIDO) (STANDARD LINK 112L)
40540-MY5-G31
|
$252.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (RK EXCEL) (RK525SMOZ5-120LJ FZ) (STANDARD LINK 112L)
40540-MY5-306
|
$186.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, CHAIN ADJUSTING
40542-KV3-700
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
ADJUSTER, CHAIN
40543-MAS-010
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, RR. BRAKE STOPPER
43431-MGR-670
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, STOPPER ARM
43434-ME1-670
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SWINGARM PIVOT
52101-MGR-670
|
$40.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, R. SWINGARM PIVOT
52106-MBA-000
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, R. SWINGARM
52106-MR1-000
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, PIVOT ADJUSTING
52109-MBA-000
|
$33.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, L. PIVOT DISTANCE
52143-MBA-000
|
$27.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH, DISTANCE COLLAR
52144-MBA-000
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
SLIDER, CHAIN
52170-MGR-670
|
$40.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SWINGARM SUB-ASSY.
52200-MGR-670
|
$776.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, RR. BRAKE STOPPER
90127-393-000
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, RR. BRAKE STOPPER ARM
90133-286-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, LOCK (26X1.5)
90301-KT7-000
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER A, HANDLE HOLDER SETTING
90505-425-000
Superseded by 90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Unavailable |
|||
|
#23
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$44.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, NEEDLE (THOMPSON)
91071-MJ0-004
|
$44.65 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (22X31X5) (ARAI)
91205-965-003
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (22X35X7) (ARAI)
91213-MB2-003
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (22X29X4) (ARAI)
91283-ML7-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (5X12)
93901-25280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, SPRING (10MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIN, COTTER (2.0X22)
94201-20180
Superseded by 94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER (2.0X22)
94201-20200
Superseded by 94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)
94201-20220
|
$1.08 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)
94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER (2.0X22)
94201-29220
|
$1.08 | ||
|
Unavailable |
|||
|
#32
CIRCLIP (OUTER) (10MM)
94511-10000
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (INNER) (35MM)
94520-35000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
RUBBER C, STAND STOPPER
95011-63000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL (6202)
96100-62020-10
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
