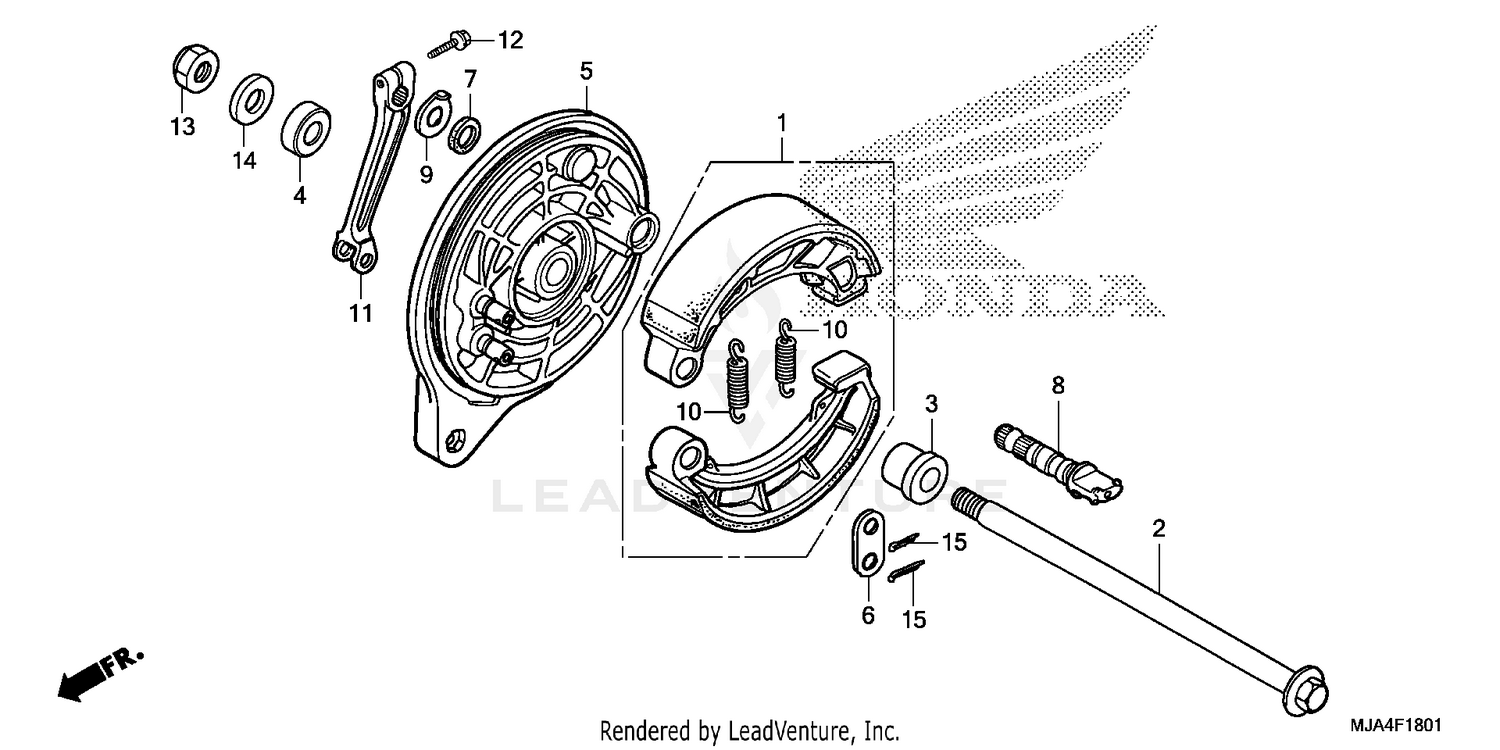

Rear Brake Panel (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOE SET, BRAKE (JB)
06430-MCL-700
|
$70.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, RR. WHEEL
42301-MGR-670
|
$53.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, L. RR. WHEEL SIDE
42311-MGR-670
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL SIDE
42311-MG5-670
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL, RR. BRAKE *NH146M* (ACCURATE SILVER METALLIC)
43100-MEG-000ZB
|
$173.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, ANCHOR PIN
43102-319-000
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL, BRAKE CAM
43134-300-000
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM, RR. BRAKE
43141-MCL-003
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
INDICATOR, RR. BRAKE
43145-ME5-000
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, RR. BRAKE SHOE
43151-346-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RR. BRAKE
43410-MEG-000
|
$37.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (8X25)
90107-MZ5-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (18MM)
90306-MCS-G00
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (18X32X2)
90401-MCS-G00
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
