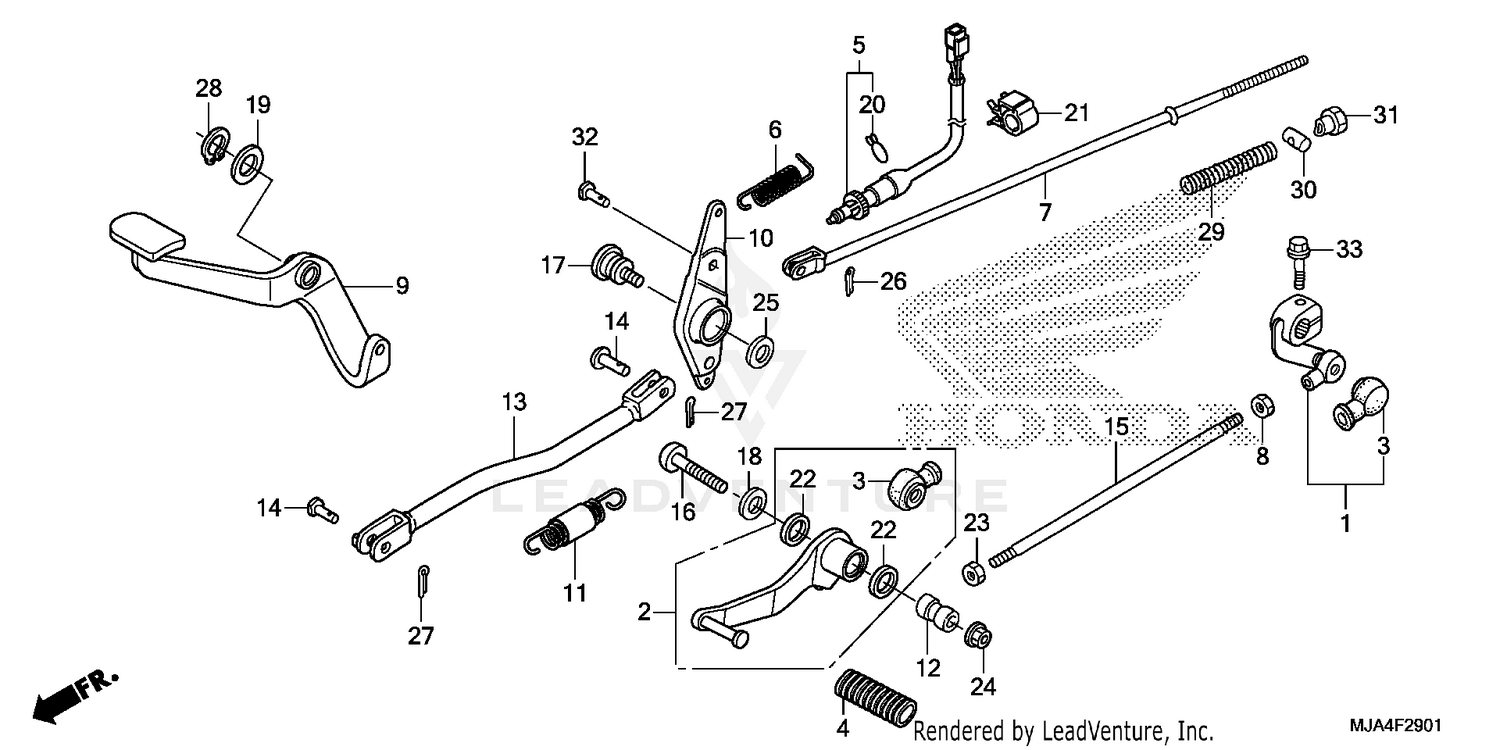

Pedal (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, GEARSHIFT
24702-MGR-670
|
$57.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, GEARSHIFT (NOT AVAILABLE)
24710-MGR-305
Superseded by 24710-MGR-670
|
$105.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, GEARSHIFT (NOT AVAILABLE)
24710-MGR-670
|
$105.18 | ||
|
Unavailable |
|||
|
#3
COVER, DUST
24724-MBW-D21
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-MGR-671
Superseded by 35350-MGR-672
|
$35.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-MGR-672
|
$35.87 | ||
|
Unavailable |
|||
|
#6
SPRING, STOP SWITCH
35357-MGR-670
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, RR. BRAKE
43451-MGR-670
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, HEX. (6MM) (LEFT HAND THREAD)
45423-KA4-700
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, RR. BRAKE
46501-MGR-305
Superseded by 46501-MGR-670
|
$135.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, RR. BRAKE
46501-MGR-670
|
$135.67 | ||
|
Unavailable |
|||
|
#10
ARM, RR. BRAKE MIDDLE (COO)
46510-MGR-305
|
$56.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING SET, BRAKE PEDAL
46513-KR6-000
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RR. BRAKE PIVOT
46515-MM8-000
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, RR. BRAKE MIDDLE
46540-MGR-670
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, MIDDLE ROD JOINT
46545-MBA-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, TIE ROD
90101-MGR-670
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (10X54)
90107-MGR-670
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT B, PIVOT
90116-MGR-670
|
$13.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (10.3MM)
90521-427-770
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (15.2X25)
90557-230-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CABLE (10MM) CLIP, CABLE (8MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (17X23X3) (NOK)
91206-968-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLAIN (10MM)
94103-10700
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PIN, JOINT (C)
95015-53000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
