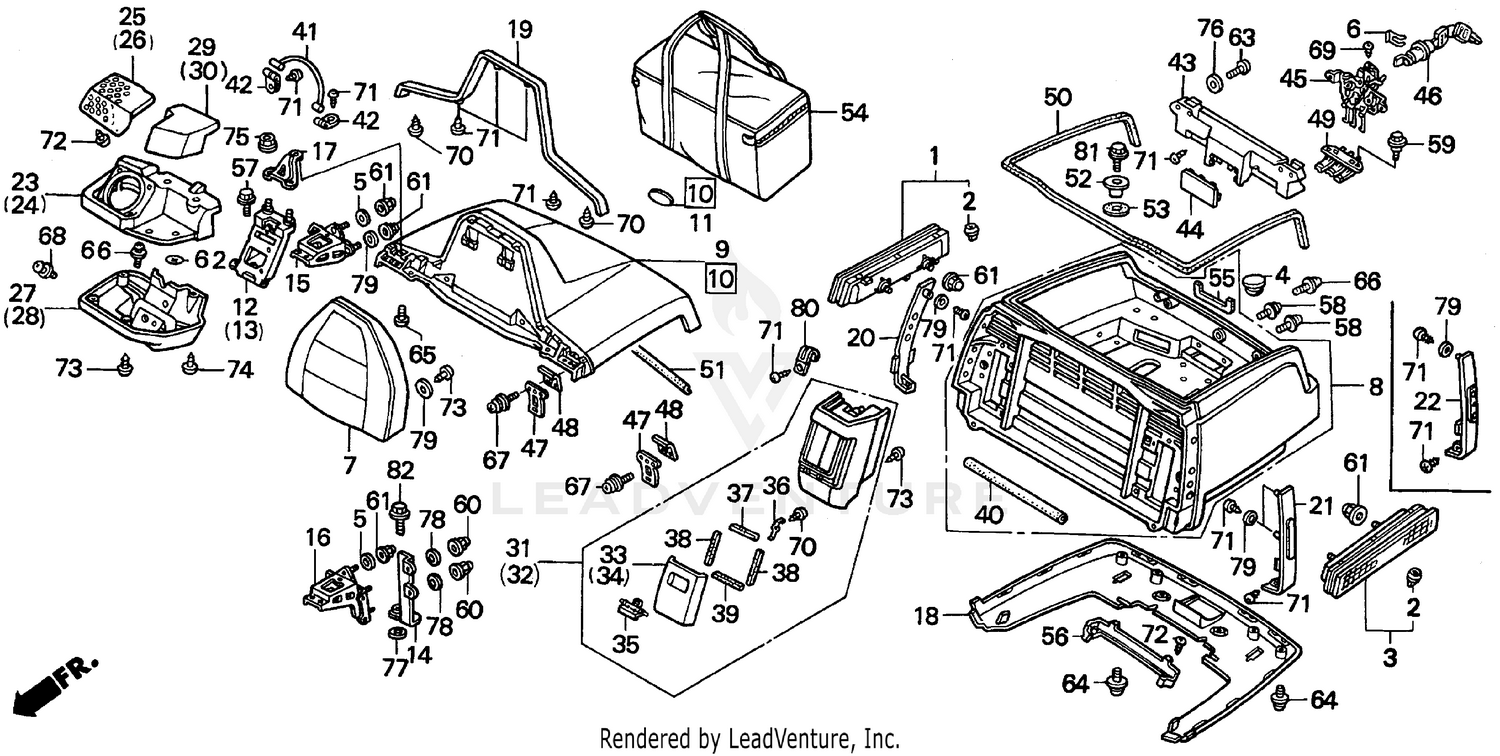

Trunk Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GARNISH, R. TRUNK
33950-MT2-004
|
$74.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP A
33954-MN5-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
GARNISH, L. TRUNK
33980-MT2-004
|
$90.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, MAIN STAND PIPE
50750-MB0-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
52427-KM4-003
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, LOCK KEY SETTING
77235-469-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, BACK *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
77500-MT8-000ZD
|
$151.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, BACK *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
77500-MN5-000ZA
Superseded by 77500-MT8-000ZD
|
$151.67 | ||
|
Unavailable |
|||
|
#7
SEAT, BACK *R129L* (TYPE8) (TUSCANY RED)
77500-MN5-000ZF
|
$67.93 | ||
|
Unavailable |
|||
|
#8
BOX, TRUNK *R176C* (CANDY SPECTRA RED)
80110-MN5-000ZN
|
$750.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOX, TRUNK *G156P* (PEARL SIERRA GREEN)
80110-MN5-000ZV
|
$702.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
LID SET, TRUNK *G156P* (WL) (PEARL SIERRA GREEN)
81125-MAM-670ZA
|
$541.29 | ||
|
Unavailable |
|||
|
#10
LID SET, TRUNK *R176C* (WL) (CANDY SPECTRA RED)
81125-MAM-670ZC
|
$612.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, RR. TRUNK
81127-MAM-000
|
$48.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
HINGE, R. TRUNK
81130-MN5-000
|
$122.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
HINGE, L. TRUNK
81131-MN5-000
|
$122.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, R. TRUNK HINGE (B)
81136-MN5-000
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, L. TRUNK HINGE (B)
81137-MN5-000
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
STIFFENER, TRUNK LID
81139-MN5-000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, TRUNK *R176C*
81140-MN5-000ZN
Superseded by 81140-MN5-610ZP
|
$292.15 | ||
|
Unavailable |
|||
|
#18
COVER, TRUNK *G156P*
81140-MN5-000ZW
Superseded by 81140-MN5-610ZQ
|
$304.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
GARNISH, TRUNK LID
81145-MAM-000
|
$66.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
GARNISH, R. TRUNK SIDE
81146-MAM-770
|
$54.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
GARNISH, L. TRUNK SIDE
81147-MAM-000
|
$50.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, R. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81150-MN5-000ZA
|
$128.30 | ||
|
Unavailable |
|||
|
#23
COVER, R. ARMREST *R200* (TYPE7) (TUSCANY RED)
81150-MN5-000ZN
|
$133.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, L. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81151-MN5-000ZA
|
$111.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, L. ARMREST *R200* (TYPE7) (TUSCANY RED)
81151-MN5-000ZN
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER B, R. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81152-MN5-000ZA
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER B, R. ARMREST *R200* (TYPE7) (TUSCANY RED)
81152-MN5-000ZM
|
$42.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER B, L. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81153-MN5-000ZA
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER B, L. ARMREST *R200* (TYPE7) (TUSCANY RED)
81153-MN5-000ZM
|
$42.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
BODY, R. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81154-MN5-000ZA
|
$90.17 | ||
|
Available to order. Add to View Price |
|||
|
#27
BODY, R. ARMREST *R200* (TYPE7) (TUSCANY RED)
81154-MN5-000ZM
|
$54.82 | ||
|
Unavailable |
|||
|
#28
BODY, L. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81156-MN5-000ZA
|
$45.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
BODY, L. ARMREST *R200* (TYPE7) (TUSCANY RED)
81156-MN5-000ZM
|
$45.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION, R. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81158-MN5-000ZA
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION, R. ARMREST *R200* (TYPE7) (TUSCANY RED)
81158-MN5-000ZM
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION, L. ARMREST *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81159-MN5-000ZA
|
$55.51 | ||
|
Unavailable |
|||
|
#30
CUSHION, L. ARMREST *R200* (TYPE7) (TUSCANY RED)
81159-MN5-000ZM
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#31
POCKET ASSY. *NH159L* (COSMOPOLITAN GRAY)
81160-MN5-000ZA
Superseded by 81160-MN5-000ZG
|
$199.35 | ||
|
Unavailable |
|||
|
#31
POCKET ASSY. *NH159L* (COSMOPOLITAN GRAY)
81160-MN5-000ZG
|
$199.35 | ||
|
Unavailable |
|||
|
#31
POCKET ASSY., R. TRUNK *R200* (TYPE7) (TUSCANY RED)
81160-MN5-000ZH
|
$199.35 | ||
|
Unavailable |
|||
|
#32
POCKET ASSY., L. TRUNK *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81161-MN5-000ZA
|
$199.35 | ||
|
Unavailable |
|||
|
#32
POCKET ASSY., L. TRUNK *R200* (TYPE7) (TUSCANY RED)
81161-MN5-000ZM
|
$195.56 | ||
|
Unavailable |
|||
|
#33
LID, R. TRUNK POCKET *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81164-MN5-000ZA
|
$48.47 | ||
|
Available to order. Add to View Price |
|||
|
#33
LID, R. TRUNK POCKET *R200* (TYPE7) (TUSCANY RED)
81164-MN5-000ZN
|
$35.13 | ||
|
Unavailable |
|||
|
#34
LID, L. TRUNK POCKET *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81165-MN5-000ZA
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
LID, L. TRUNK POCKET *R200* (TYPE7) (TUSCANY RED)
81165-MN5-000ZM
|
$46.44 | ||
|
Available to order. Add to View Price |
|||
|
#35
KNOB, TRUNK POCKET *NH159L* (TYPE1) (COSMOPOLITAN GRAY)
81166-MN5-000ZA
|
$45.73 | ||
|
Available to order. Add to View Price |
|||
|
#35
KNOB, TRUNK POCKET *R200* (TYPE7) (TUSCANY RED)
81166-MN5-000ZN
|
$30.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, TRUNK POCKET
81169-MN5-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#37
RUBBER, TRUNK POCKET SEAL (A)
81173-MN5-300
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#38
RUBBER, TRUNK POCKET SEAL (B)
81174-MN5-300
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#39
RUBBER, TRUNK POCKET SEAL (C)
81175-MN5-300
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#40
RUBBER, SEAL
81241-MT2-000
|
$6.71 | ||
|
Unavailable |
|||
|
#41
STOPPER, TRUNK LID
81250-MN5-000
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#42
STAY B, LID STOPPER
81254-MN5-000
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#43
CATCH ASSY., TRUNK
81305-MT8-771
|
$83.88 | ||
|
Unavailable |
|||
|
#44
COVER, OPENER UNIT
81306-MN5-003
|
$41.96 | ||
|
Available to order. Add to View Price |
|||
|
#45
OPENER UNIT
81310-MAM-003
|
$121.63 | ||
|
Available to order. Add to View Price |
|||
|
#46
LOCK, OPENER UNIT
81312-MN5-000
|
$41.33 | ||
|
Unavailable |
|||
|
#47
STRIKER, TRUNK
81325-MN5-000
|
$7.71 | ||
|
Unavailable |
|||
|
#48
PLATE, TRUNK STRIKER SETTING
81329-MN5-000
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#49
LEVER ASSY., LUGGAGE BAG OPENER (MITSUI)
81335-MN5-003
|
$30.31 | ||
|
Unavailable |
|||
|
#50
RUBBER, TRUNK SEAL (A)
81350-MN5-000
|
$27.78 | ||
|
Available to order. Add to View Price |
|||
|
#51
RUBBER, TRUNK SEAL (B)
81351-MN5-000
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#52
COLLAR, SADDLEBAG SETTING
81355-MN5-000
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#53
RUBBER, BAG SETTING
81356-MN5-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#55
RUBBER, TRUNK SEAL (C)
81361-MN5-300
|
$2.59 | ||
|
Unavailable |
|||
|
#56
COVER, LICENSE LIGHT
84705-MT8-000
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, FLANGE (5X10)
90002-GC3-000
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#58
SCREW, PAN (5X12)
90104-964-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#59
BOLT, FLANGE (6MM)
90112-GC6-000
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#60
NUT, FLANGE CAP (5MM)
90167-SA0-980
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
NUT, FLANGE CAP (5MM)
90167-SA0-980
|
$7.02 | ||
|
Unavailable |
|||
|
#62
NUT, CLIP
90301-GE0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#63
SCREW, PAN (5X12)
93500-05012-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#64
SCREW-WASHER (4X12)
93891-04012-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#65
SCREW-WASHER (5X10)
93893-05010-07
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#66
SCREW-WASHER (5X12)
93893-05012-07
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#67
SCREW-WASHER (5X14)
93893-05014-07
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#68
SCREW-WASHER (5X12)
93894-05012-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#69
SCREW, TAPPING (4X10)
93901-24280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#70
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#72
SCREW, TAPPING (4X16)
93903-24480
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#73
SCREW, TAPPING (5X16)
93903-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#74
SCREW, TAPPING (5X20)
93903-25480
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#75
NUT, FLANGE (5MM)
94050-05080
|
$0.38 | ||
|
Unavailable |
|||
|
#76
WASHER, FLAT (5MM)
94101-05700
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#78
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#79
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
Unavailable |
|||
|
#80
CLIP, WIRE (4X50)
94591-45000
|
$3.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
BOLT, FLANGE (6X20)
96001-06020-07
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
