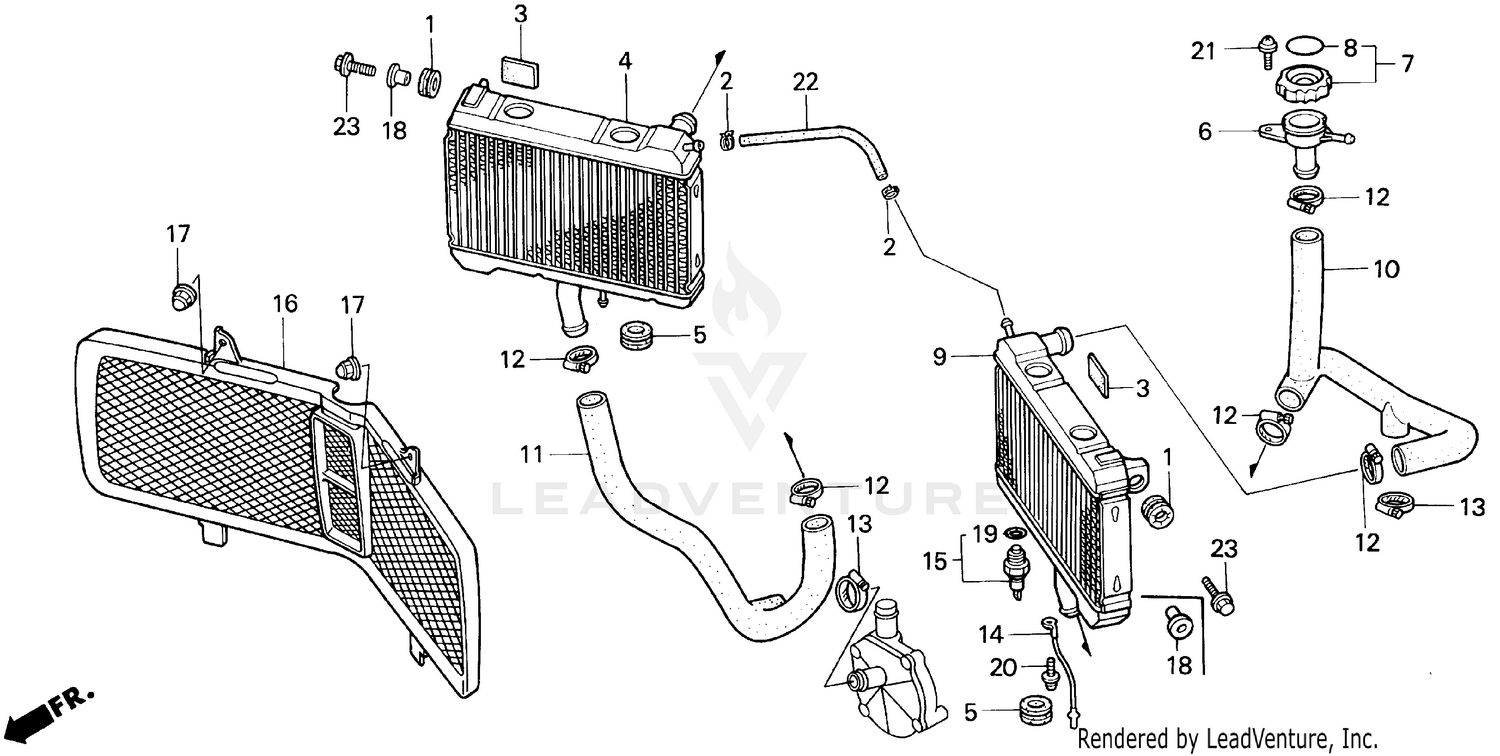

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, OIL COOLER
15604-MG7-000
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, FUEL HOSE
16969-MB1-000
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, CUSHION
17508-MN5-000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR, R.
19010-MAM-003
|
$436.30 | ||
|
Unavailable |
|||
|
#4
RADIATOR, R.
19010-MY4-004
Superseded by 19010-MAM-003
|
$436.30 | ||
|
Unavailable |
|||
|
#5
RUBBER, RADIATOR SETTING
19012-HB9-000
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILLER, NECK
19039-MN5-003
|
$19.61 | ||
|
Unavailable |
|||
|
#7
CAP, RADIATOR
19045-MZ3-300
Superseded by 19045-MZ3-405
|
$39.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, RADIATOR CAP
19055-MZ3-300
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
RADIATOR, L.
19060-MAM-003
|
$454.62 | ||
|
Unavailable |
|||
|
#9
RADIATOR, L.
19060-MN5-003
Superseded by 19060-MAM-003
|
$454.62 | ||
|
Unavailable |
|||
|
#9
RADIATOR, L.
19060-MT2-004
Superseded by 19060-MAM-003
|
$454.62 | ||
|
Unavailable |
|||
|
#10
HOSE, RADIATOR (UPPER)
19501-MN5-000
|
$93.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, WATER (LOWER)
19502-MN5-000
|
$80.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, WATER HOSE
19503-MB1-870
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, WATER HOSE
19515-MJ4-670
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUB-WIRE, THERMOSTAT SWITCH GROUND
32113-MN5-000
|
$4.00 | ||
|
Unavailable |
|||
|
#15
SWITCH ASSY., THERMO
37760-MT2-003
Superseded by 37760-MR1-003
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
GRILLE, RADIATOR
85400-MW5-870
|
$63.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (5MM)
90167-MN5-000
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COLLAR (.8X11)
90551-MG7-000
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#20
SCREW-WASHER (4X8)
93891-04008-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (4X8)
93891-04008-18
Superseded by 93891-04008-08
|
$1.20 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (5X16)
93891-05016-07
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BULK HOSE, FUEL (7.5X8000) (7.3X80)
95001-75008-60M
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
