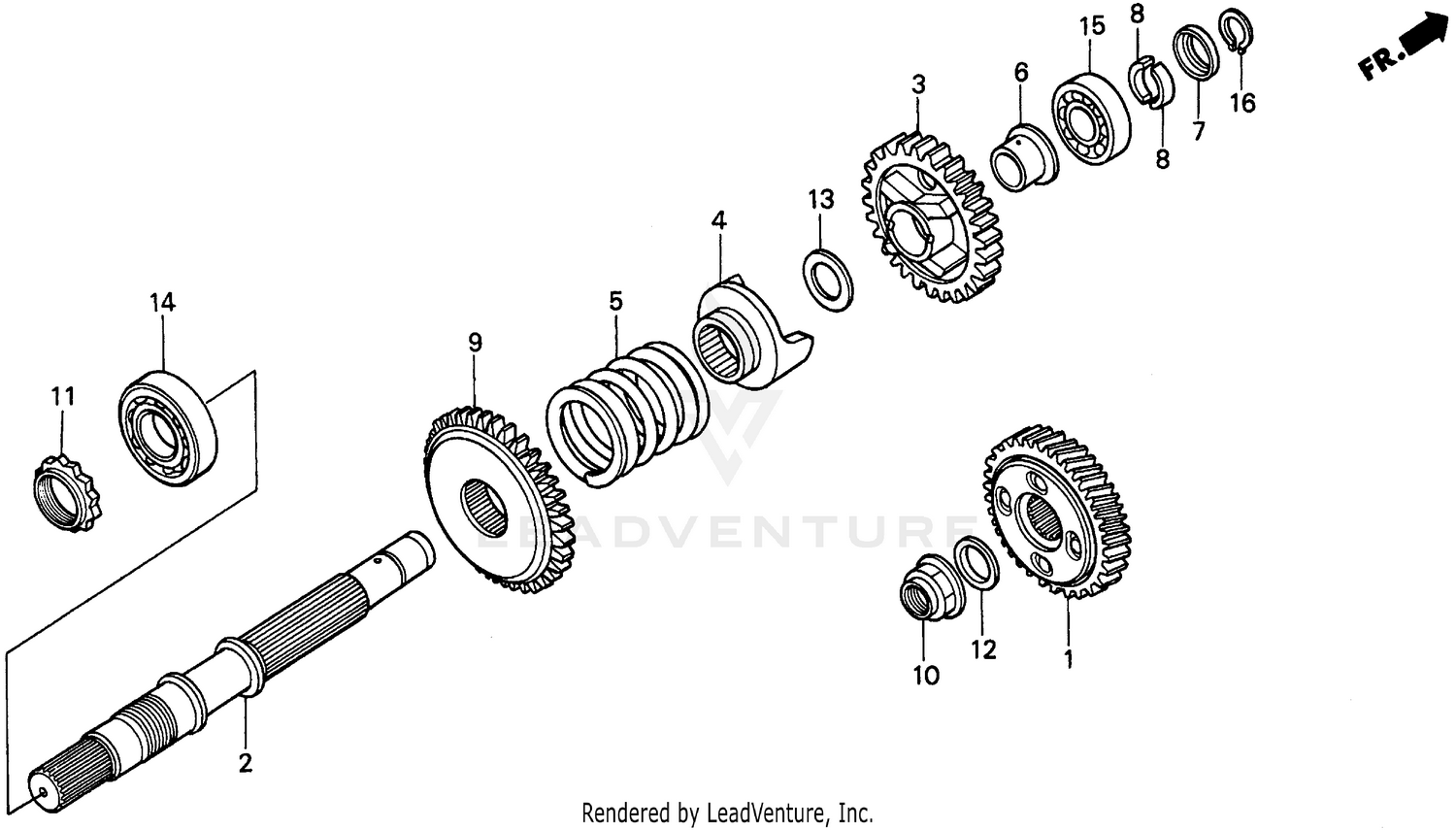

Final Gearshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, FINAL DRIVE (35T)
23500-MT8-000
Superseded by 23500-MAM-A60
|
$148.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, FINAL GEAR
23511-MN5-000
|
$224.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, FINAL DRIVEN (34T)
23521-MT8-000
Superseded by 23521-MZ0-000
|
$74.65 | ||
|
Unavailable |
|||
|
#4
LIFTER, FINAL DAMPER
23721-MN5-000
|
$44.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, FINAL DAMPER
23732-MN5-000
|
$54.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR (22X26X27.6)
23733-MN5-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, FINAL SHAFT
23741-MN5-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING STOPPER
23742-MN5-000
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, REVERSE DRIVEN (45T)
28178-MN5-000
Superseded by 28178-MCA-000
|
$134.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPECIAL (22MM)
90205-MN5-000
|
$42.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, LOCK (30MM)
90241-MB0-000
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING (22MM)
90421-MN5-003
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (22.2X35.2.6)
90498-MN5-000
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, BALL (22X52X15)
91005-MN5-003
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6206) (NTN CORP.)
91006-MT3-003
|
$25.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6206) (NTN)
91011-MN5-003
Superseded by 91006-MT3-003
|
$25.82 | ||
|
Unavailable |
|||
|
#16
CIRCLIP (OUTER) (22MM)
94510-22000
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
