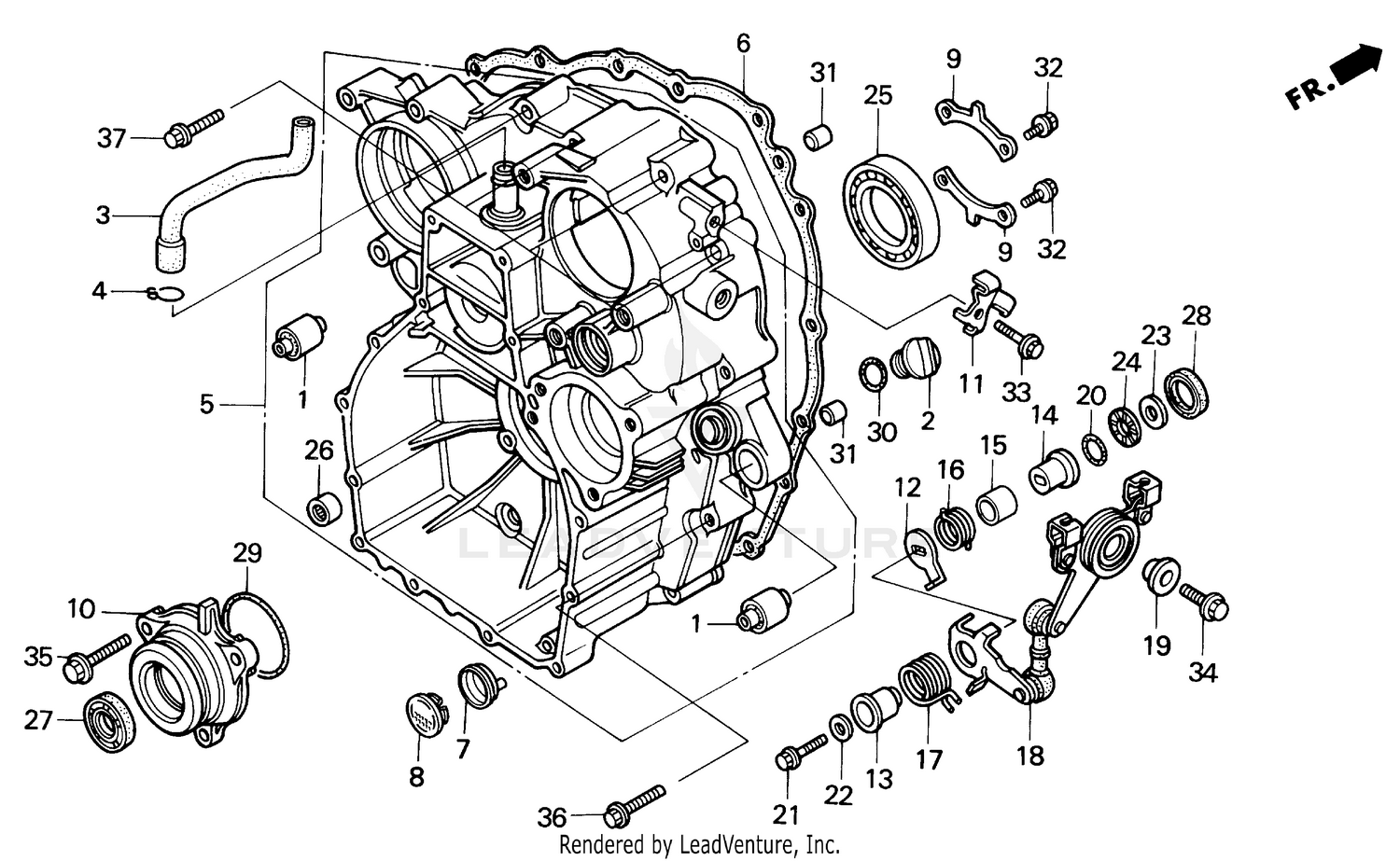

Rear Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSH, ENGINE HANGER (B)
11141-MN5-000
|
$16.17 | ||
|
Unavailable |
|||
|
#2
CAP, OIL FILLER
15611-MB0-000
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, BREATHER
15761-MN5-000
|
$13.62 | ||
|
Unavailable |
|||
|
#4
CLIP, AIR HOSE (21.5)
18532-634-670
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, RR.
21110-MW5-870
|
$559.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, RR. CASE
21112-MN5-650
|
$52.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY, SCAVENGE OIL PUMP STRAINER
21116-MT8-000
|
$7.15 | ||
|
Unavailable |
|||
|
#8
CAP, SCAVENGE OIL PUMP STRAINER
21117-MT8-000
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, PRIMARY BEARING SETTING
21122-MN5-000
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, FINAL SHAFT BEARING
23751-MN5-000
|
$128.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6010) (NTN CORP.)
91002-MN5-003
|
$88.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (28X48X9) (NOK)
91204-MN5-005
|
$16.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (62.4X3.1)
91304-MN5-003
Superseded by 91316-PE7-730
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (62.4X3.1)
91316-PT6-003
Superseded by 91316-PE7-730
|
$7.15 | ||
|
Unavailable |
|||
|
#30
O-RING (22X3.0)
91307-425-003
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN A, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X28)
95701-08028-08
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (8X45) (DENSO)
95701-08045-08
|
$2.32 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (8X55)
95701-08055-08
|
$2.50 | ||
|
Unavailable |
|||
