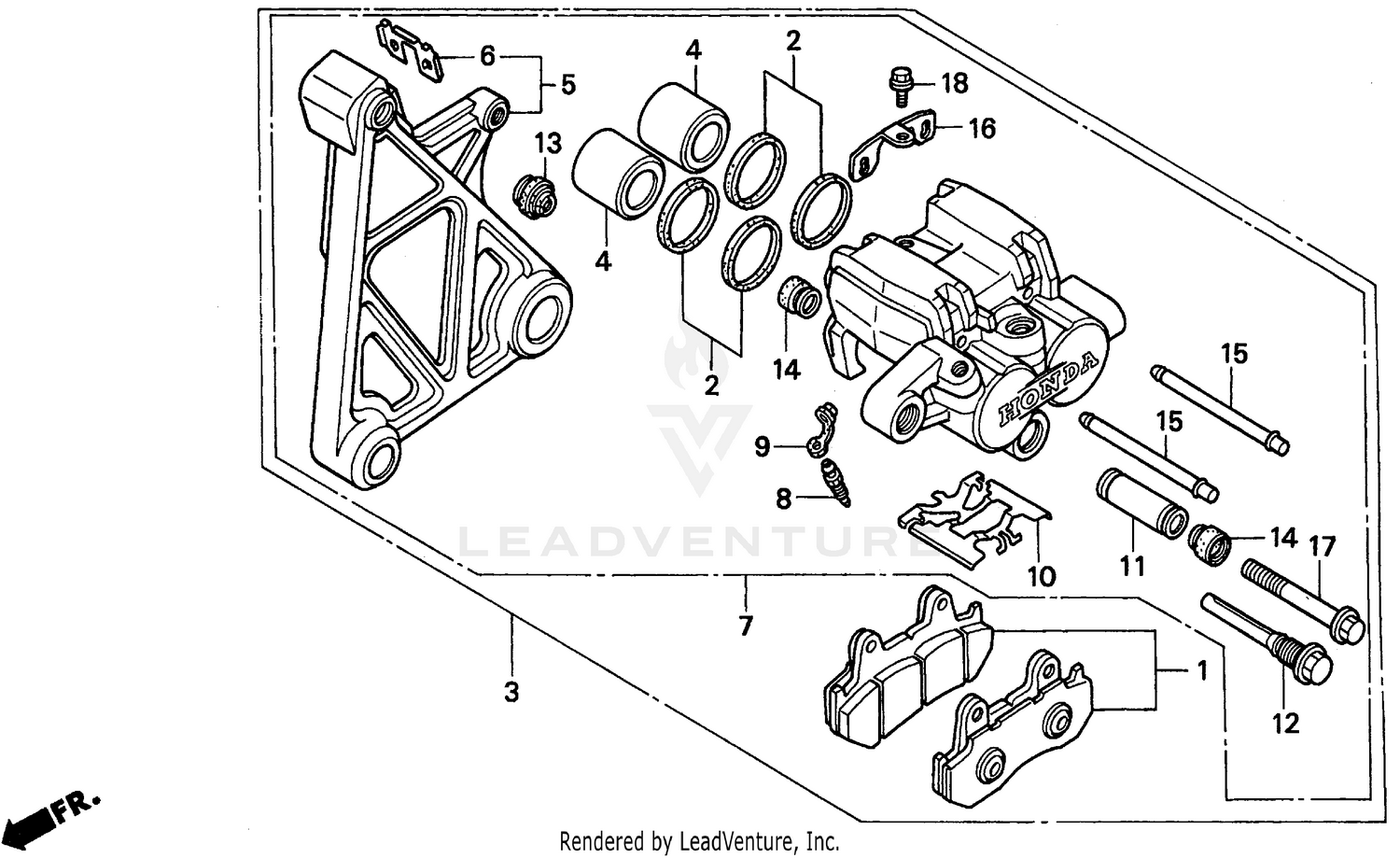

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAD SET, RR.
06435-MT8-405
|
$65.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON
06451-MA7-405
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON
43107-MA7-006
|
$55.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, RR.
43110-MT8-006
|
$176.83 | ||
|
Unavailable |
|||
|
#6
RETAINER, RR. BRACKET
43112-445-631
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SUB-ASSY., RR. BRAKE (NISSIN)
43150-MT8-305
|
$413.34 | ||
|
Unavailable |
|||
|
#8
SCREW, BLEEDER
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, PAD
45108-MA2-006
|
$6.85 | ||
|
Unavailable |
|||
|
#11
SLEEVE
45111-MA3-006
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, BOLT
45131-MA3-006
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOOT, PIN
45133-166-016
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, HANGER
45215-MA2-006
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE
45217-MA3-006
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X49)
90180-MA3-006
Superseded by 90180-MN8-006
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
